JVC SP-PWC3 - Connecting the Satellite (Front, Center, Surround) Speakers

Connections
8

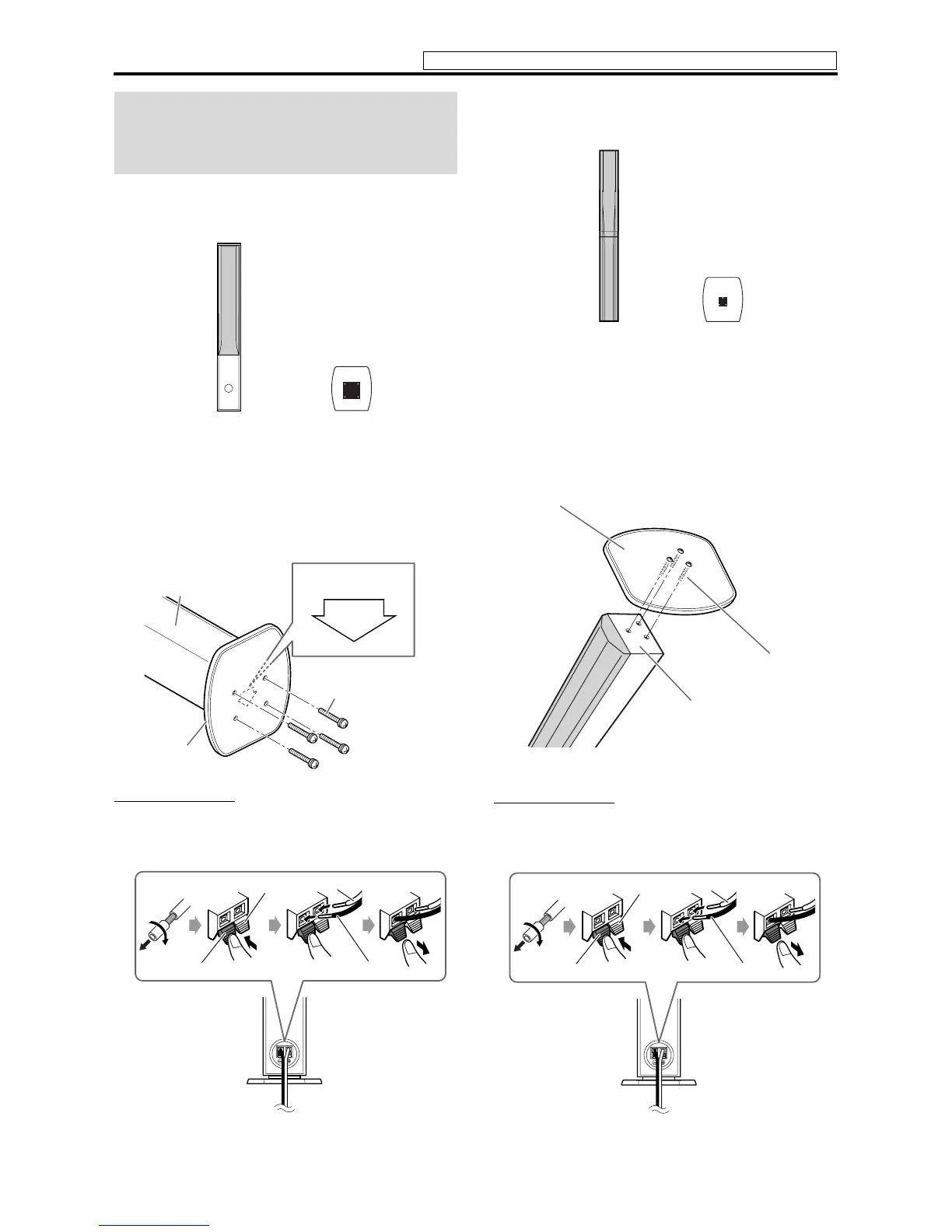

7 The front speakers — TH-C7
For the surround speakers of TH-C7, see “The surround speakers
— Except for TH-C6” (A pg. 10)
Before assembling —
• Prepare a Phillips screwdriver (not supplied).
• Take care not to drop any component part while assembling;
otherwise, it may cause damage to the floor or injury.
1
CAUTION
• NEVER insert your finger in between the speaker and the base plate,
as it may get hurt.
2
7 The front speakers — TH-C5
For the surround speakers of TH-C5, see “The surround speakers
— Except for TH-C6” (A pg. 10)
Before assembling —
• Prepare a Phillips screwdriver (not supplied).
• Take care not to drop any component part while assembling;
otherwise, it may cause damage to the floor or injury.
1
CAUTION
• NEVER insert your finger in between the speaker and the base plate,
as it may get hurt.
2
Connecting the satellite
(front, center, surround)
speakers
Front speaker
(x2)
Base plate
(x2)
FRONT
Top of base plate
Speaker (rear side)
Base plate
Screw M4 x 35 mm
(supplied)
Black
Red
White
Black
Front speaker
(x2)
Base plate
(x2)
Speaker (bottom)
Screw M4 x 40 mm
(supplied)
Base plate
Black
Red
White
Black
Do not connect the power cord until all other connections have been made.
