3.3.9 Removing the spindle motor board

(See Figs.16 and 17)

• Remove the tray assemblies, DVD servo board and DVD

traverse mechanism assembly.

(1) From the top side of the DVD traverse mechanism assem-

bly, remove the wires from the soldered sections r on the

spindle motor board. (See Fig.16.)

(2) From the bottom side of the DVD traverse mechanism as-

sembly, remove the three screws J attaching the spindle

motor board. (See Fig.17.)

Reference:

When attaching the spindle motor board, let the card wire

through the hole s on the C.TM chassis. (See Fig.17.)

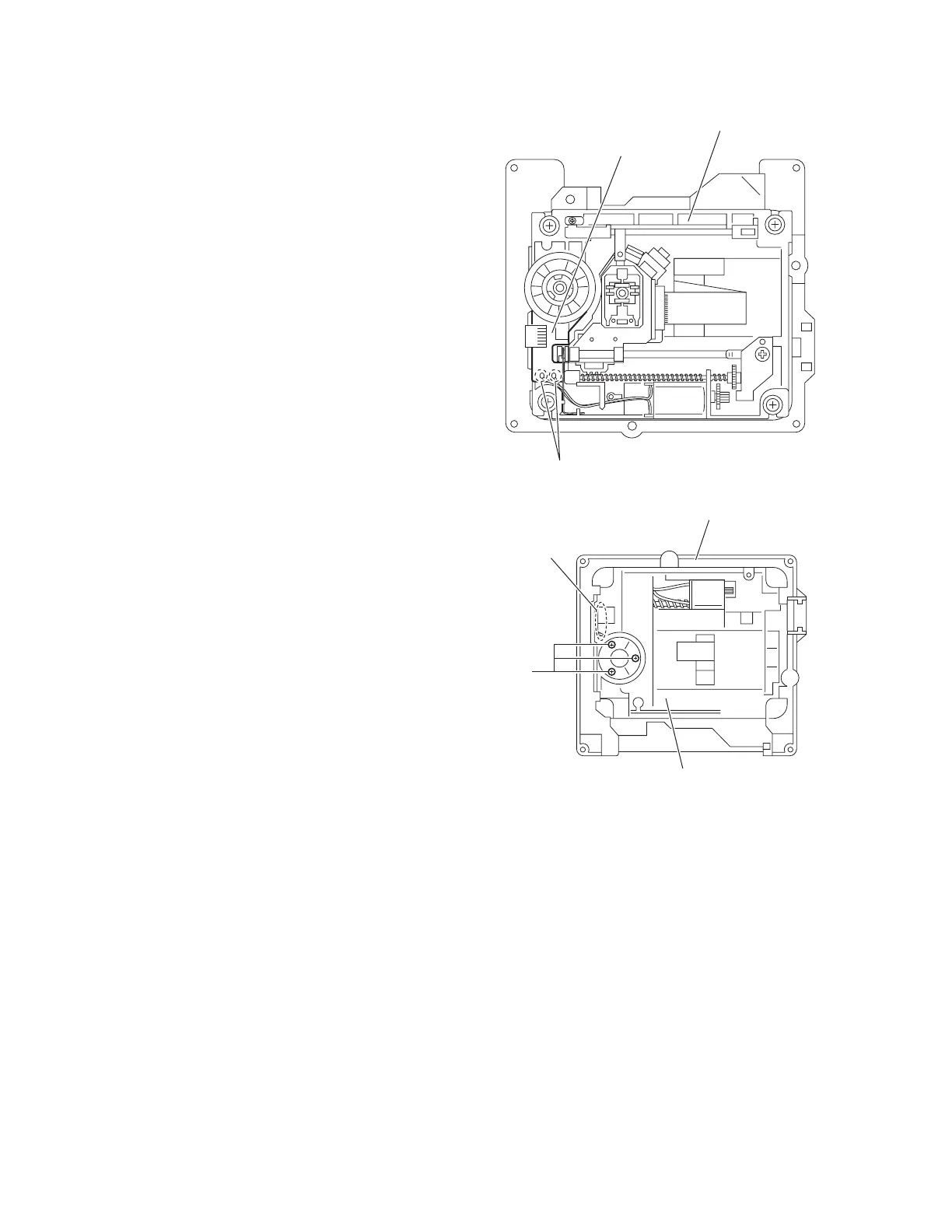

Fig.16

Fig.17

Spindle motor board

DVD traverse mechanism assembly

C.TM chassis

DVD traverse mechanism assembly
