1-8 (No.MB362)
SECTION 3
DISASSEMBLY
3.1 Main body section
3.1.1 Removing the metal cover

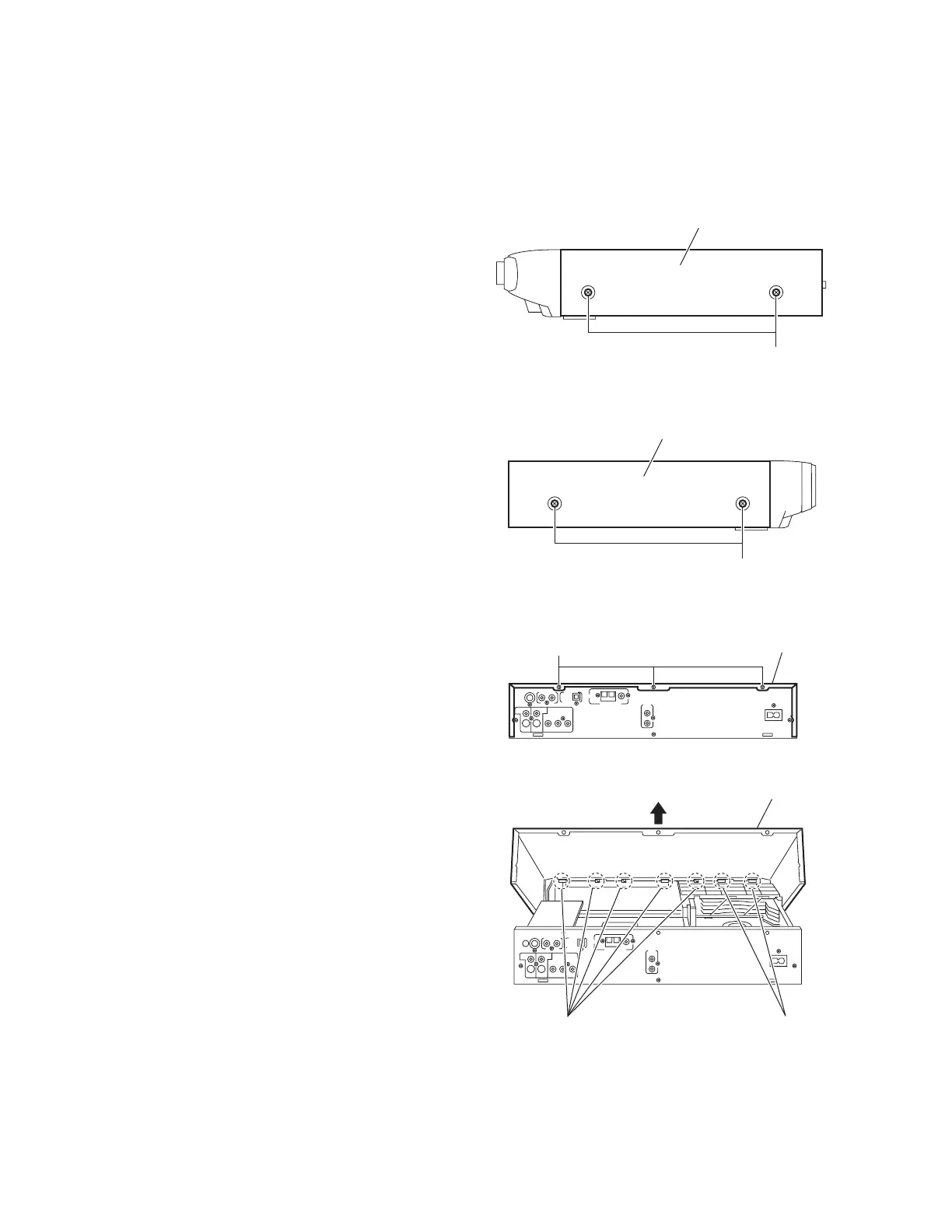

(See Figs. 1 to 4)
(1) From the both sides of the main body, remove the four
screws A attaching the metal cover. (See Figs. 1 and 2.)
(2) From the back side of the main body, remove the three
screws B attaching the metal cover. (See Fig. 3.)
(3) Lift the rear section of the metal cover in the direction of the
arrow while extending the lower sections of the metal cov-
er, release the seven claws a using a longer screwdriver
from the inside as required. (See Fig. 4.)
Note:
Do not damage any parts and boards inside the main body
when releasing the claws a using a longer screwdriver.
Fig.1
Fig.2
Fig.3
Fig.4
Metal cover
A
Metal cover
A
Metal cove
B
Metal cover
Claws aClaws a
