JVC SP-PWDD3 - Removing the Heat Sink; See Fig.

(No.MB563)1-23
3.2.3 Removing the Heat sink
(See Fig.6, 7)
(1) Remove the two screws E and four screws F attaching the
Power amplifier ICs. (See Fig.6)
(2) Remove the one screw G attaching the thermistor. (See
Fig.6)
(3) Remove the three screws H attaching the Heat sink. (See
Fig.6)
(4) Remove the three screws J attaching the Heat sink. (See
Fig.7)

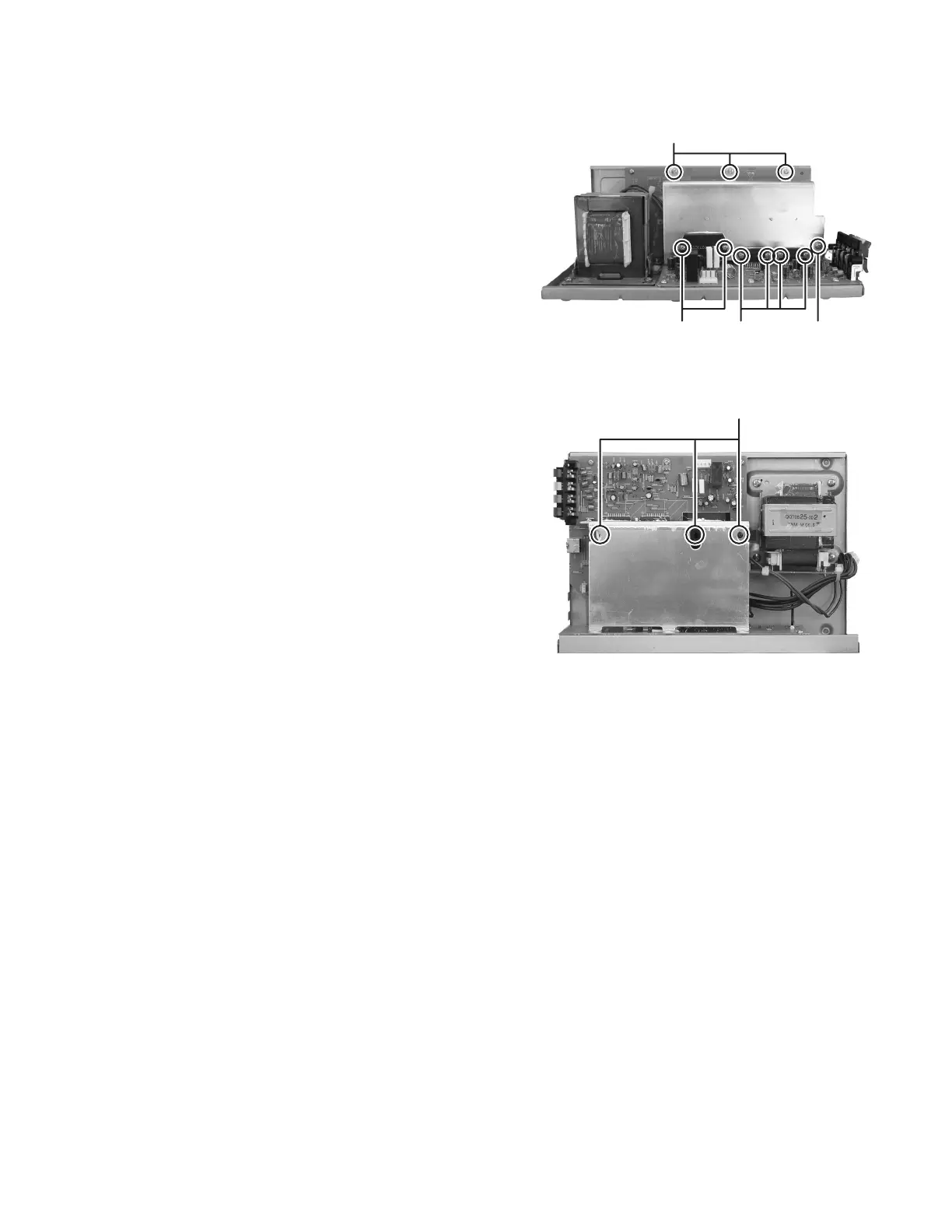

Fig.6
Fig.7
