JVC SP-PWDD3 - Main Body Section; Removing the Side Panel L, R; Disassembly

(No.MB563)1-9
SECTION 3
DISASSEMBLY
3.1 Main body section
3.1.1 Removing the side panel L, R
(See Fig.1)
(1) From the bottom sides of the main body, remove the four
screws A attaching the side panel L and side panel R.
(2) Remove the side panel L and side panel R.

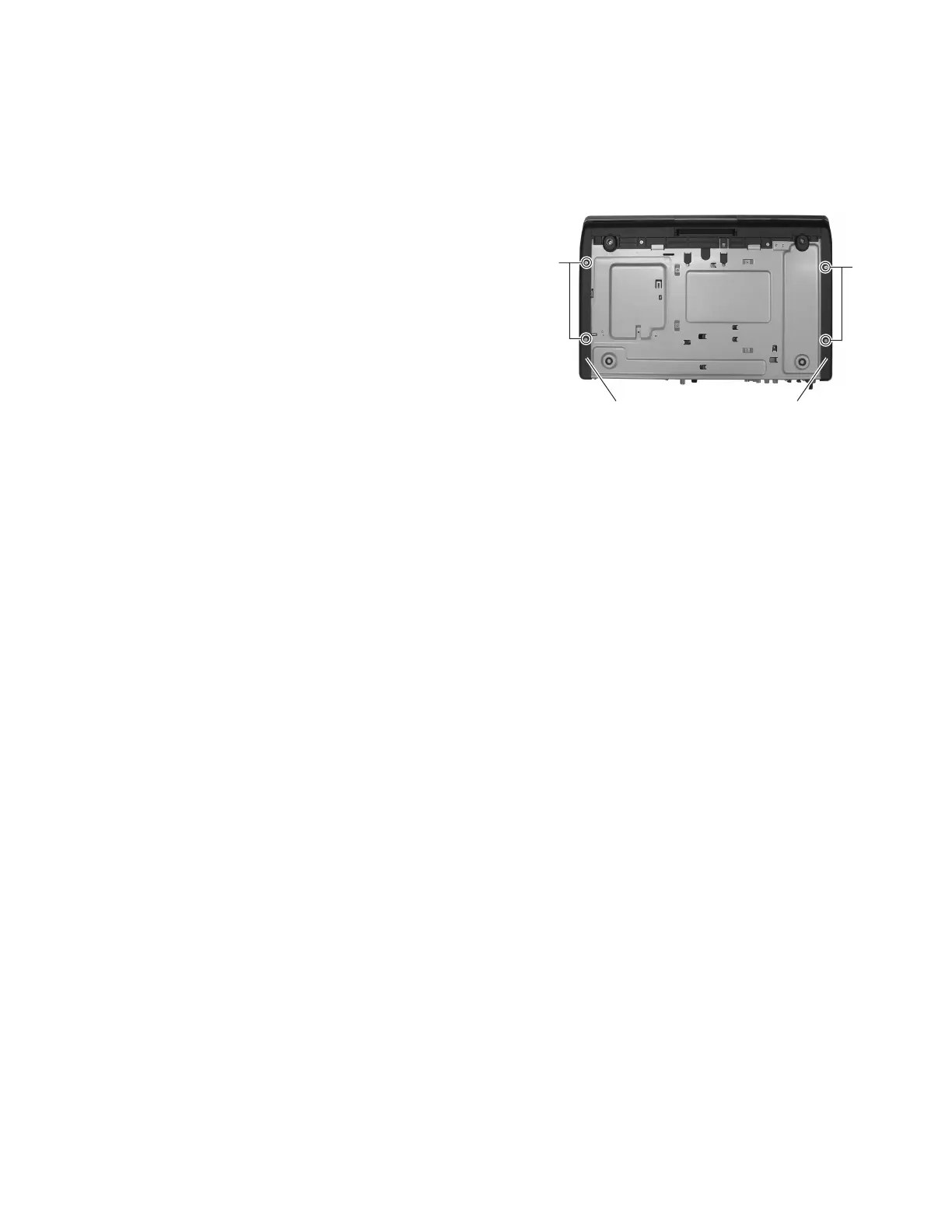

Fig.1
Side panel RSide panel L
A
A
