Operation Reference Introduction
7
Installation and Setup
Optional Equipment

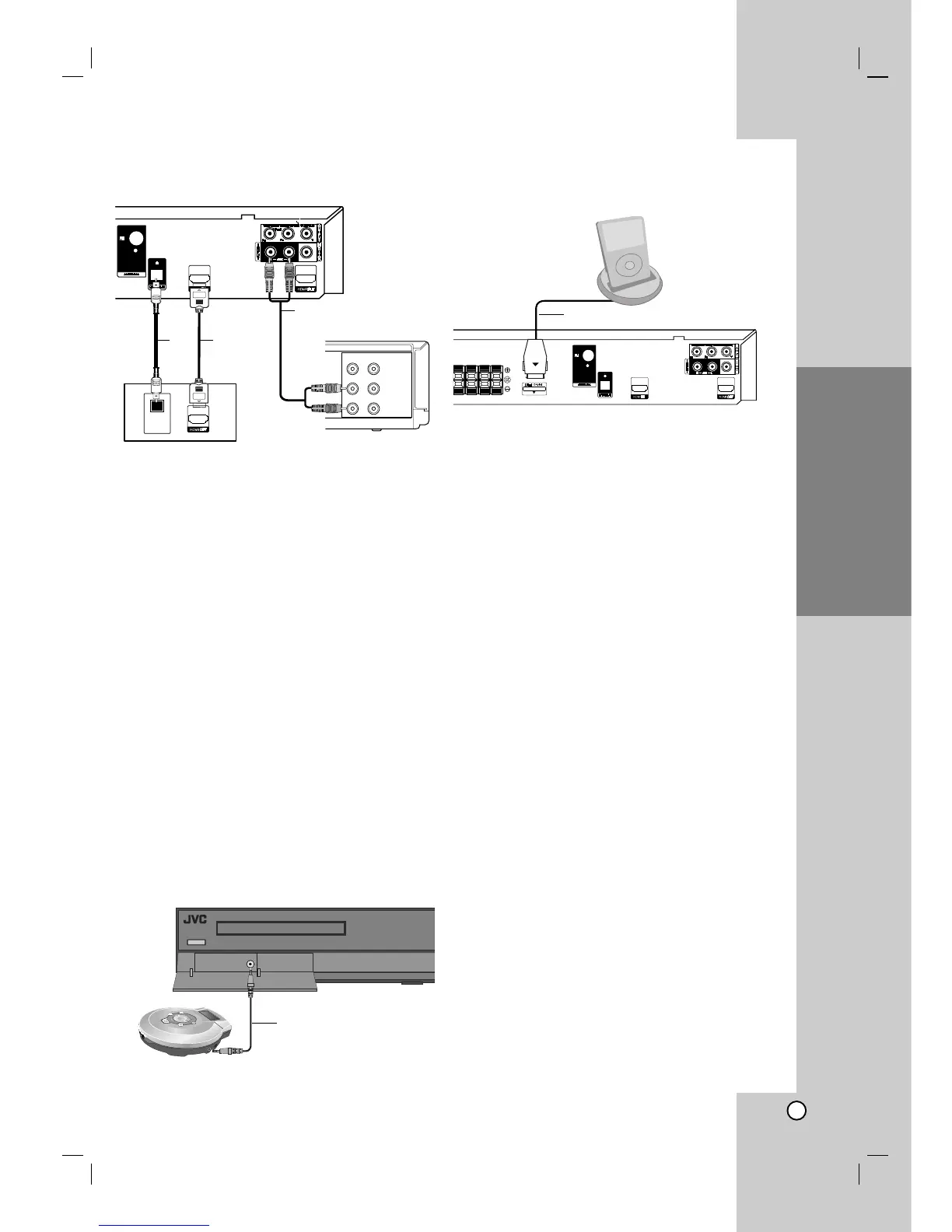

Connection
AUX IN connection (A)
Connect a Output of auxiliary device to the AUX
AUDIO Input (L/R) Connector.
OPTICAL IN connection (O)
Connect an optical output of DVD Player (or Digital
Device etc) to the OPTICAL IN connector.
HDMI In connection (H)
Connect the HDMI INPUT jack on the unit to the
HDMI output jack on your DVD Player (or Digital
Device etc.) using an HDMI cable. Set the external
source to HDMI IN by pressing INPUT. In HDMI IN
mode, you can’t change the resolution. Change the
resolution on your DVD Player (or Digital Device etc.)
by connectiong the unit.
Note:
Image of HDMI input can not output from component
and composite output.
AUDIO IN connection (D)
Connect a output of portable device (MP3 or PMP
etc) to the AUDIO input connector.
iPod connection (I)
Connect the iPod and the unit with iPod docking
station.(I).
Notes:
• The connector plug is protected with a cover when
it is first purchased. Please remove the cover
before operationg the unit.
• When the iPod is not connected, insert the terminal
cover. This prevents dust from entering and
possibly damaging the unit.
• Depending on the type of iPod, you may need to
insert one of the dock adapters into the dock slot
before you station your iPod.
• Adjust the volume to a moderate level before you
connect your iPod and this unit.
• The jack for the iPod cable of docking station are
keyed so that the cable connectors only connect in
one way. Connect the end on the cable with the
marked “v” facing down wards to rear on the unit.
