3.3 DVD changer mechanism assembly section
• Prior to performing the following procedures, remove the metal
cover, front panel assembly and the DVD changer mechanism
assembly.
3.3.1 Removing the tray assemblies
(See Figs.1 to 5)
(1) Remove the two screws A from the top cover and release
the two joints a on the both sides of the DVD changer
mechanism assembly. (See Figs.1 and 2)
(2) Remove the two rods from the top cover and remove the
top cover from the lifter assembly. (See Figs.1 and 2)
(3) Remove the open det lever on the left side of the DVD
changer mechanism assembly. (See Fig.3)
(4) From the right side of the DVD changer mechanism as-
sembly, draw out the tray assemblies toward the front while
pushing the part b of the side (R) assembly. (See Fig.4)
Attention:
The tray can be locked if all tray assemblies are at-
tached.
(5) From the top side of the DVD changer mechanism assem-
bly, move the stopper tabs c in the direction of the arrow
and release them. Pull out the tray assemblies from the
DVD changer mechanism assembly. (See Figs.4 and 5)
Caution:
Remove the tray assembly from top tray 5 in order.
Attention:
When reattaching the tray assembly, or when removing the
disc remaining inside, refer to another section "3.3.15 Taking
out the disc in the play mode".

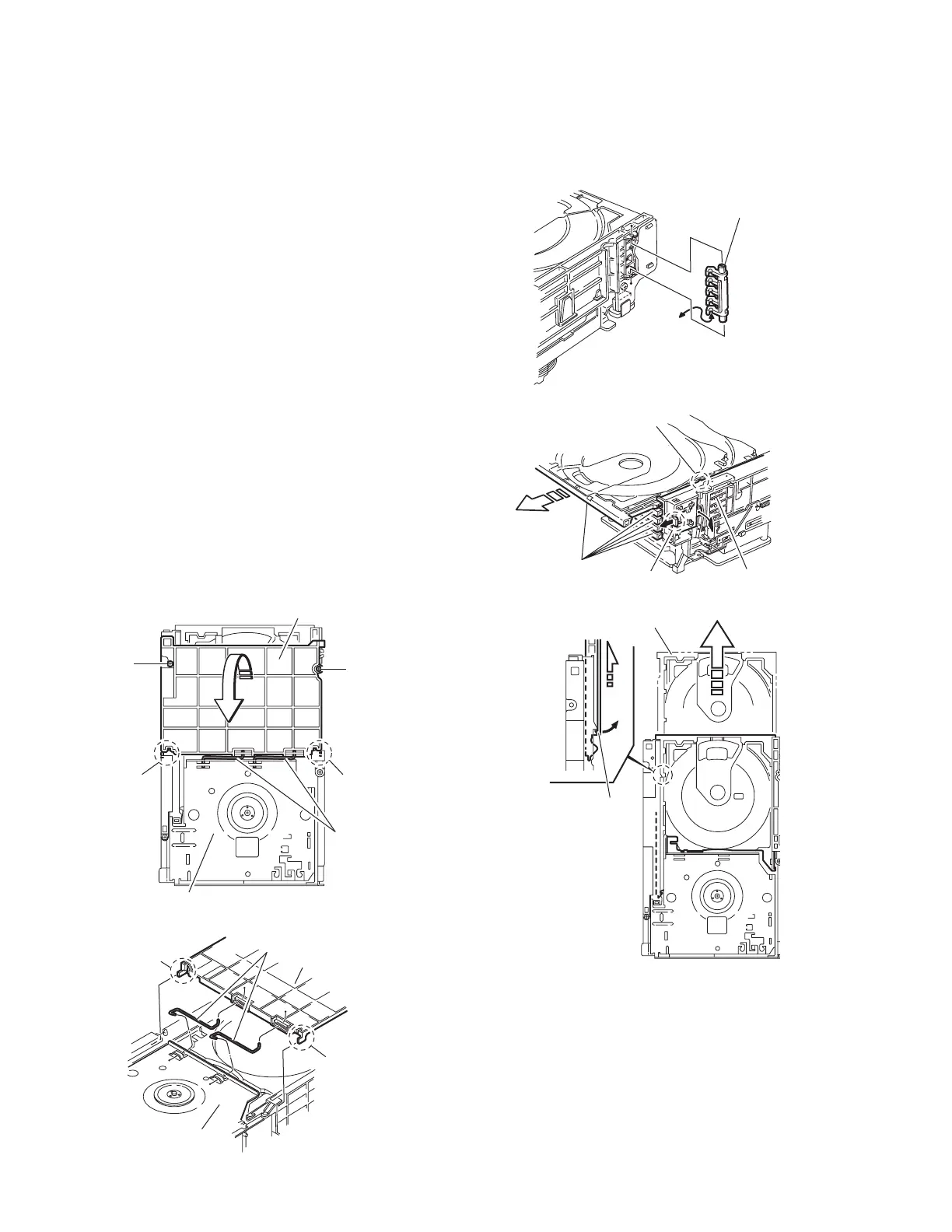

Fig.1
Fig.2
Fig.3
Fig.4
Fig.5
Top cover
Lifter assembly
Rods
A
Joint a
Joint a
A
Joint a
Rods
Top cover
Lifter assembly
Joint a
Open det leve
r
b
Tray assembly
Stopper tab c
Side (R) assembly
Stopper tab c
Tray assembly
