(No.MB294)1-15

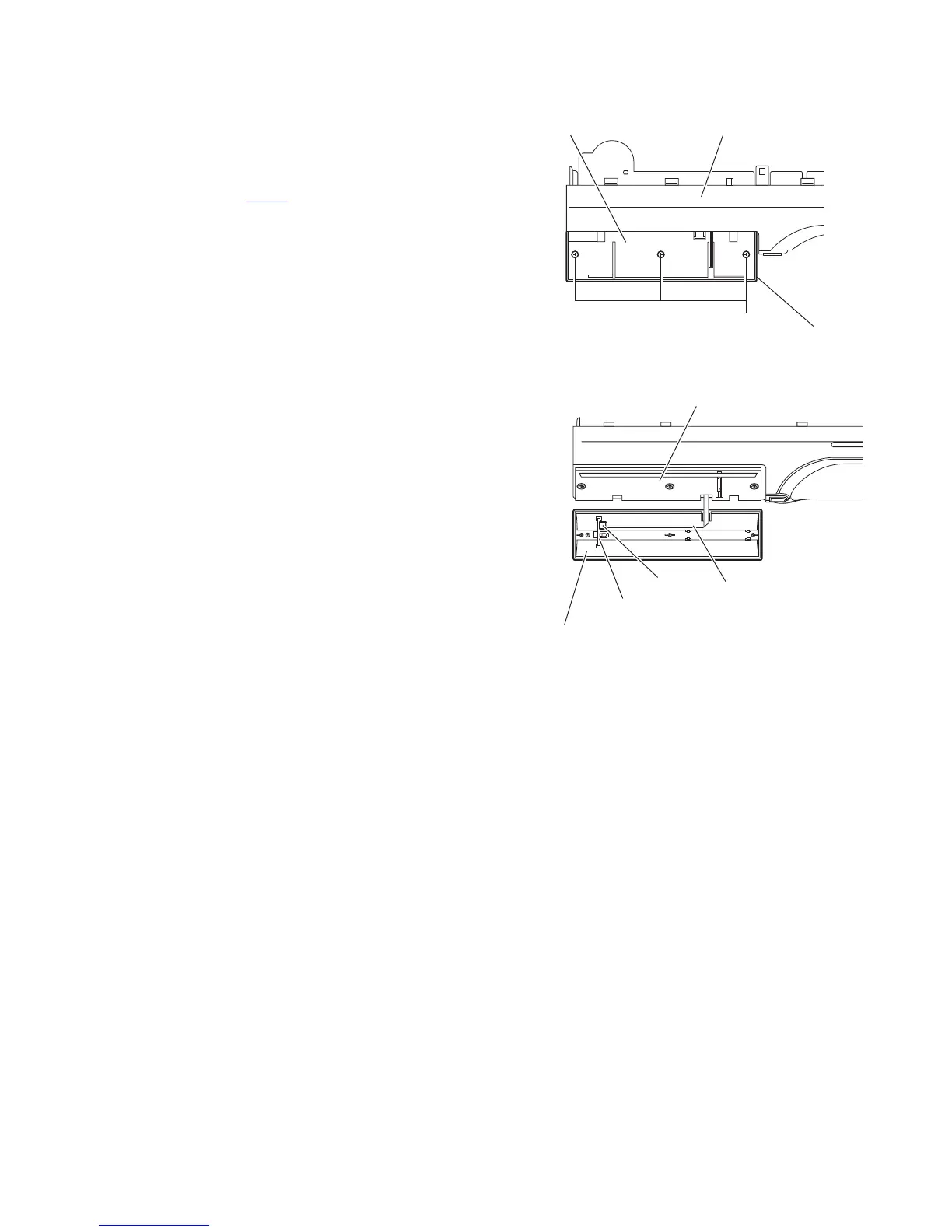

3.2.6 Removing the illumination board
(See Figs.5 and 6)
(1) Open the DVD door of the front panel assembly and re-
move the three screws F attaching the door holder to the
DVD door. (See Fig.5)
(2) Remove the DVD door from the door holder. (See Fig.5)
(3) From the inside of the DVD door, disconnect the card wire
from the connector CN551
on the illumination board. (See
Fig.6)
(4) Take out the illumination board from the DVD door.
Fig.5
Fig.6
Front panel assembly
Door holder
F
DVD doo
r
Door holder
DVD door
Illumination board
CN551
Card wire
