(No.MB665<Rev.004>)1-7
SECTION 2
SPECIFIC SERVICE INSTRUCTIONS
New CD mechanism was added.
In a model using new CD mechanism for, it stick a blue label for identification on the back side.
When it repair the CD mechanism of an article sticking this label on, please use a parts list of FMU-VK1-2M.
SECTION 3
DISASSEMBLY
3.1 Main body (Used figure are UX-G300E)
3.1.1 Removing the Metal Cover (See Fig.1, 2)
(1) Remove the seven screws A attaching the Metal cover.
(See Fig.1)
(2) Remove the two screws B attaching the both side of the
Metal cover. (See Fig.2)

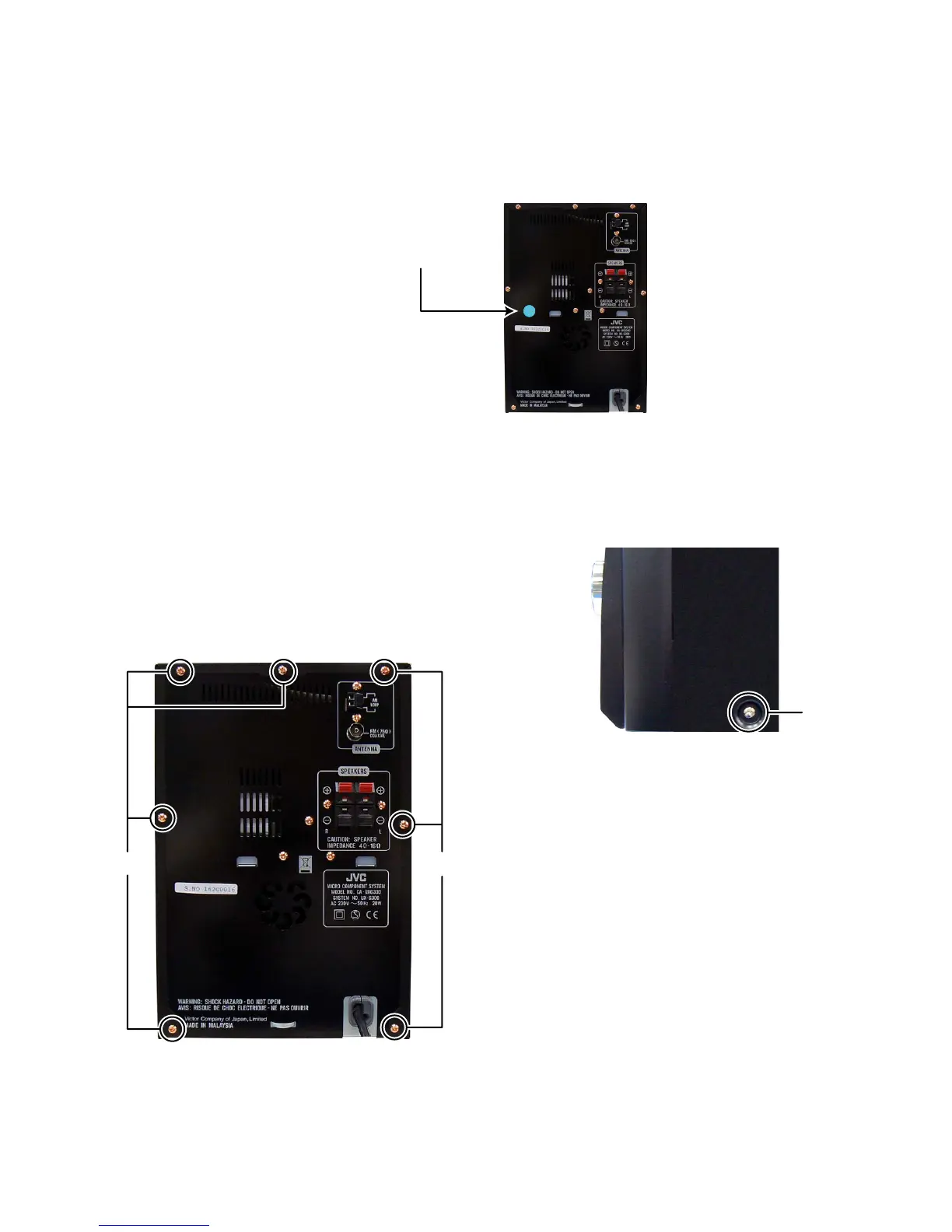

Fig.1
Fig.2
A
label for identification
A
A
B
