Connections
7 AM (MW) loop antenna
Setting up supplied AM (MW) loop antenna
Connecting AM (MW) loop antenna
• Turn the loop antenna until you have the best reception
during AM (MW) broadcast program reception.
NOTE
• Make sure the antenna conductors do not touch any other
terminals, connecting cords or power cords. This could cause
poor reception.
If reception is poor
7 FM antenna
If reception is poor
NOTE
• We recommend that you use coaxial cable for the FM
antenna as it is well-shielded against interference.

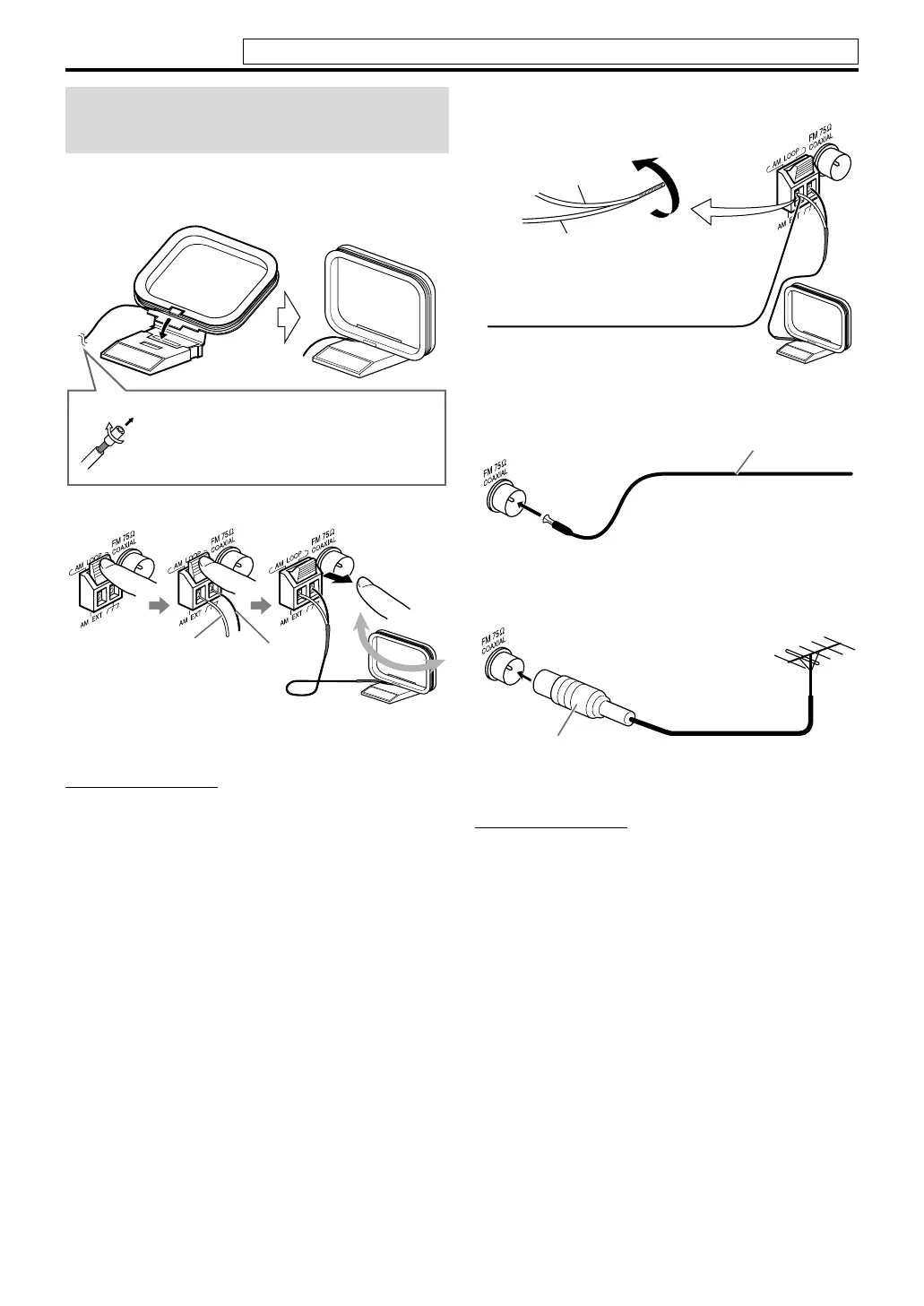

Connecting the FM and AM
(MW) antennas
If the antenna cord is covered with the
insulation coat, twist and pull the
insulation coat off and remove.
White
Black
Outdoor single vinyl-covered wire
antenna (not supplied)
AM (MW) loop
antenna (white)
Center unit
Extend the supplied FM antenna
horizontally.
Center unit
FM antenna (supplied)
Outdoor FM antenna (not
supplied)
Outdoor FM antenna cord
(not supplied)
Center unit
Standard type (75 Ω
coaxial) connector
Do not connect the power cord until all other connections have been made.
