Connections
7 Connecting speakers for TH-P3
CAUTION
• If you connect speakers other than the supplied ones, use
speakers of the same speaker impedance (SPEAKER
IMPEDANCE) indicated on the rear of the center unit.
• DO NOT connect more than one speaker to one speaker
terminal.
• When installing the satellite speakers on the wall;
– Be sure to have them installed on the wall by qualified
personnel.
DO NOT install the satellite speakers on the wall by
yourself to avoid unexpected damage from falling off the
wall due to incorrect installation or weakness in wall
structure.
– Care must be taken in selecting a location for speaker
installation on a wall. Injury to personnel or damage to
equipment may result if the speakers installed interfere
with daily activities.
Precautions for daily use
• When moving the speakers, do not pull the speaker
cords; otherwise, the speakers may fall over, causing
damage or injury.
• Do not reproduce sounds at so high a volume that the
sound is distorted; otherwise, the speakers may be
damaged by internal heat buildup.

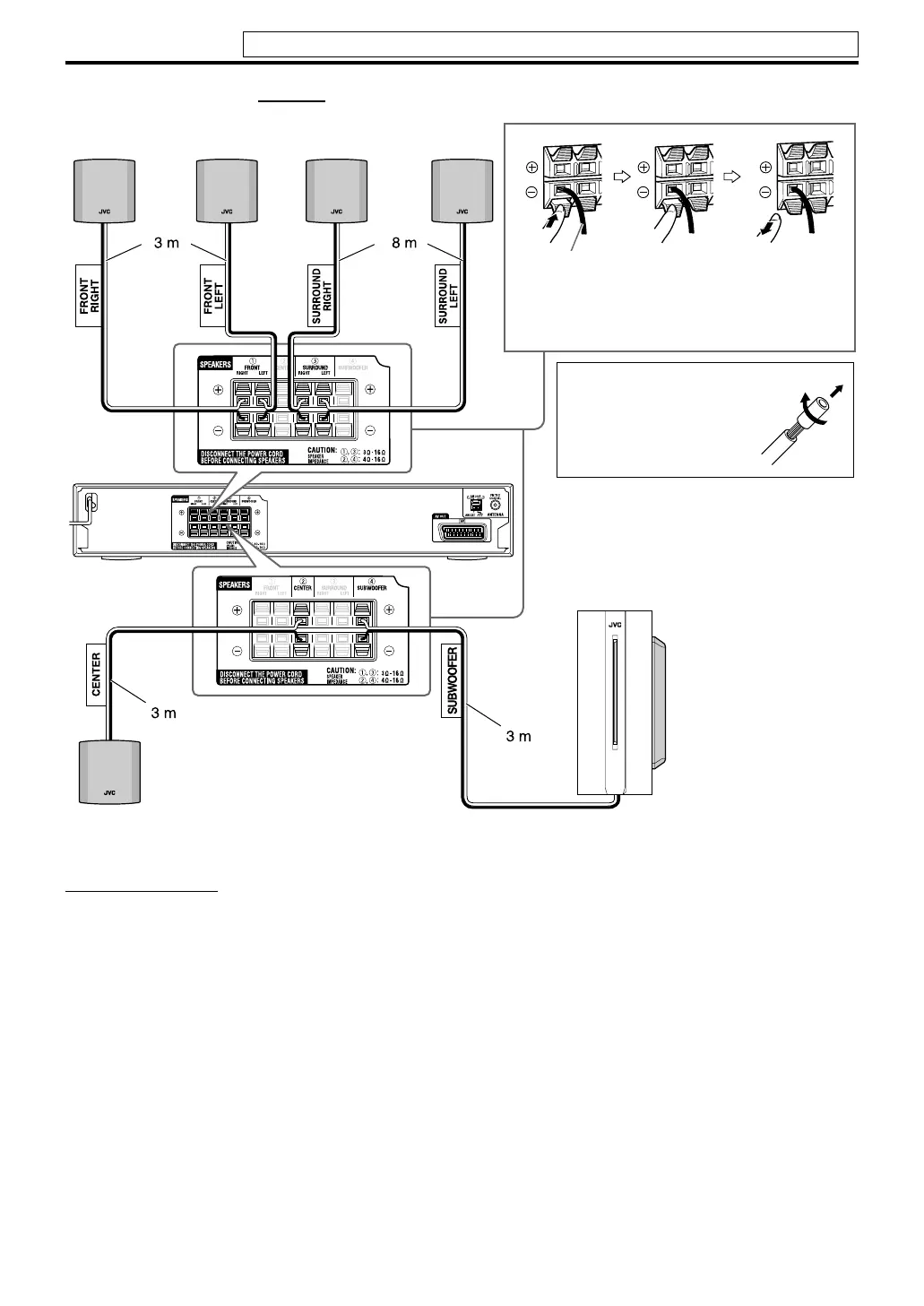

• Connect the black cords to the black (–) terminals.
• Connect the white cords to the red (+) terminals.
Speaker cord
SP-THP3S
Surround speakers
SP-THP3F
Front speakers
SP-WP5
Subwoofer
SP-THP3C
Center speaker
Before connecting the
speaker cords;
Twist and pull the
insulation coat off and
remove.
Do not connect the power cord until all other connections have been made.
