Masterpage:Right+
EN 13
Filename [DVM600US_05Name.fm]
INDEX
Page 13 Monday, 25 September 2006 13:54

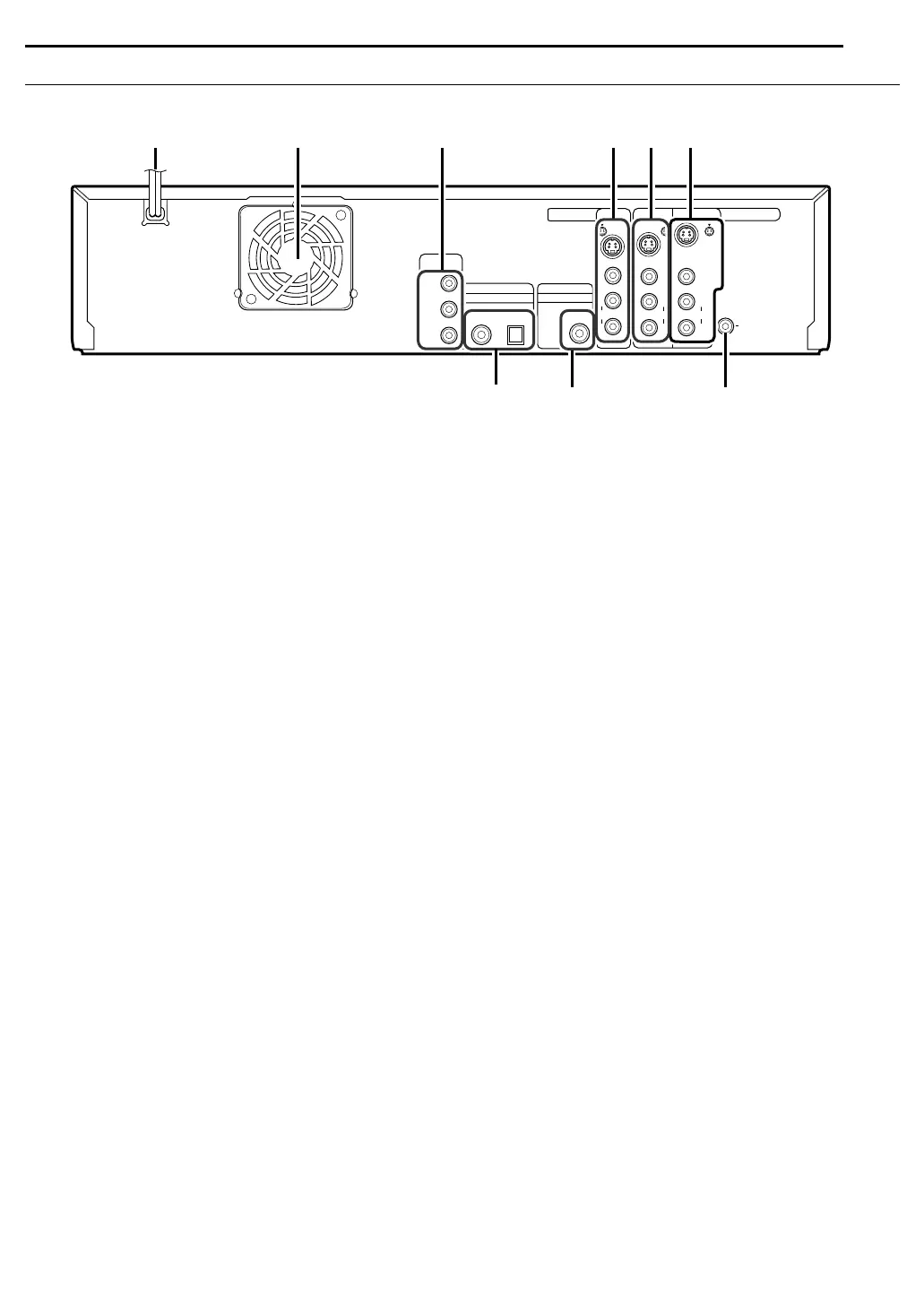

Rear View
A AC Power Cord A pg. 18
B Cooling Fan
This prevents the temperature from rising inside the unit.
Do not remove it.
Install the unit so as not to block the area around the fan.
The unit may become hot when it is turned off, as the cooling
fan on the rear of the unit is not activated. However, the cooling
fan may be activated in the standby mode when AQUICK
STARTUPB is set to AONB.
C Component Video Output Connectors [COMPONENT
VIDEO OUT (Y/P
B
/P
R
)] (HDD & DVD deck only) A pg. 18
D S-VIDEO/VIDEO/AUDIO OUTPUT Connectors (HDD & DVD
deck only)
These connectors only output DVD/HDD signals and can be
used to connect to a second monitor.
E S-VIDEO/VIDEO/AUDIO INPUT Connectors (L-1) A pg. 52
F S-VIDEO/VIDEO/AUDIO OUTPUT Connectors A pg. 18
G Digital Audio Output Connectors
[DIGITAL AUDIO OUTPUT (OPTICAL/COAXIAL)] (HDD &
DVD deck only) A pg. 53, 57
H BNC Video Output Connector [VIDEO OUTPUT] A pg. 18
I Remote Input Connector* [REMOTE IN]
* There is currently no compatible remote control unit available.
OUTPUT
DV/HDD/DVD
INPUT L-1
OPTICAL
HDD/DVD
L
R
DIGITAL AUDIO OUT
COMPONENT
VIDEO OUT
VIDEO
AUDIO
VIDEO
AUDIO
PCM/STREAM
L
R
VIDEO
COAXIAL
Y
P
B
PR
REMOTE IN
OUTPUT
HDD/DVD
L
R
AUDIO
VIDEO
S-VIDEO
DV/HDD/DVD
OUTPUT
S-VIDEO
S-VIDEO
BCA
G
H
D FE
I
DVM600US_00.book Page 13 Monday, September 25, 2006 1:54 PM
