4.7 Mechanism phase check/adjustment

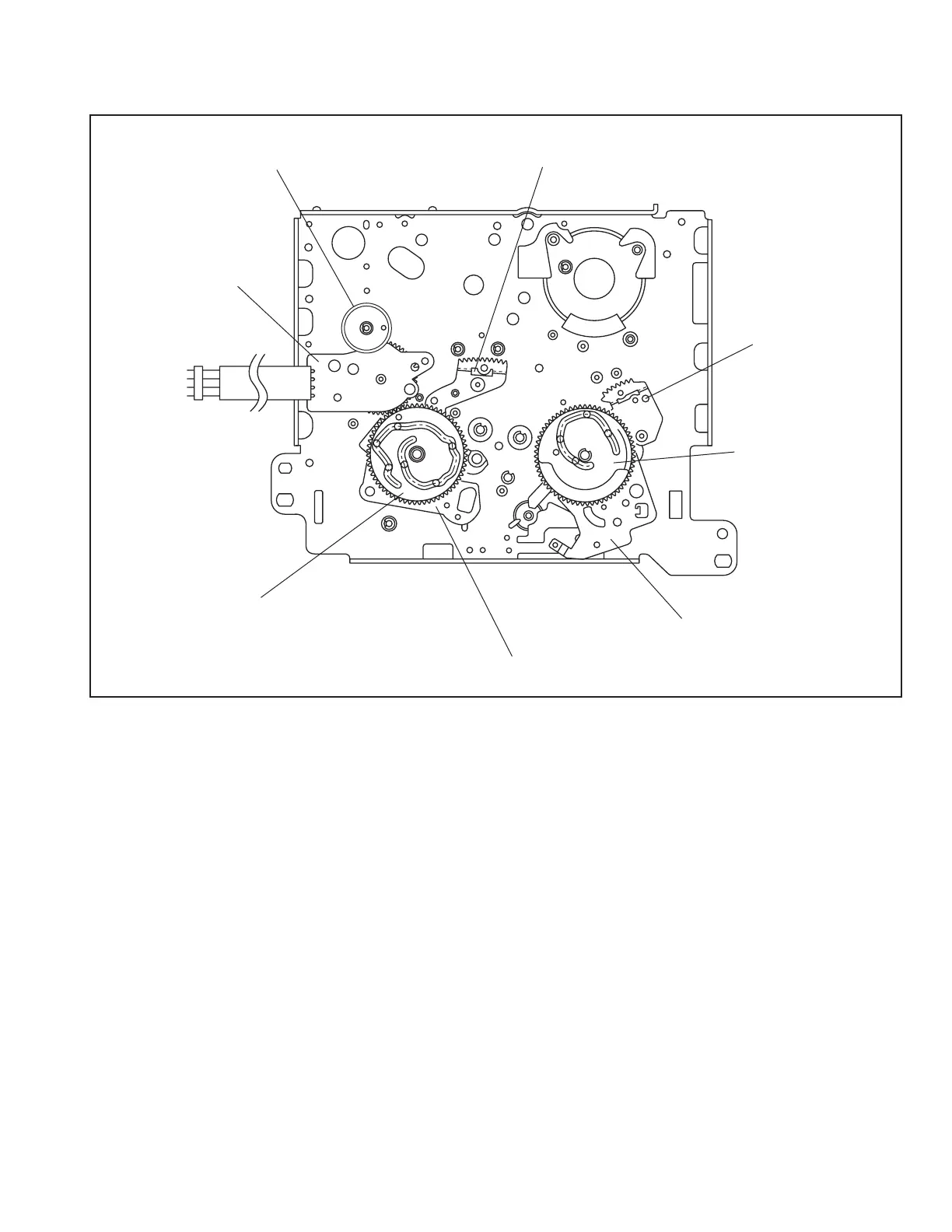

See Fig 4-7-1.
Fig.4-7-1
Worm wheel 2
See Fig. 4-5-9a.
Arm gear 1 assembly
See Fig. 4-5-13b.
Rotary encoder assembly
See Figs. 4-5-9a and
4-5-13a.
Main cam
See Figs. 4-5-13a and 4-5-13b.
Centering arm assembly
See Fig. 4-5-13b.
Clutch lock lever assembly
See Fig. 4-5-14a.
Arm gear 2 assembly
See Fig. 4-5-14a.
Sub cam
See Fig. 4-5-14a.
[
