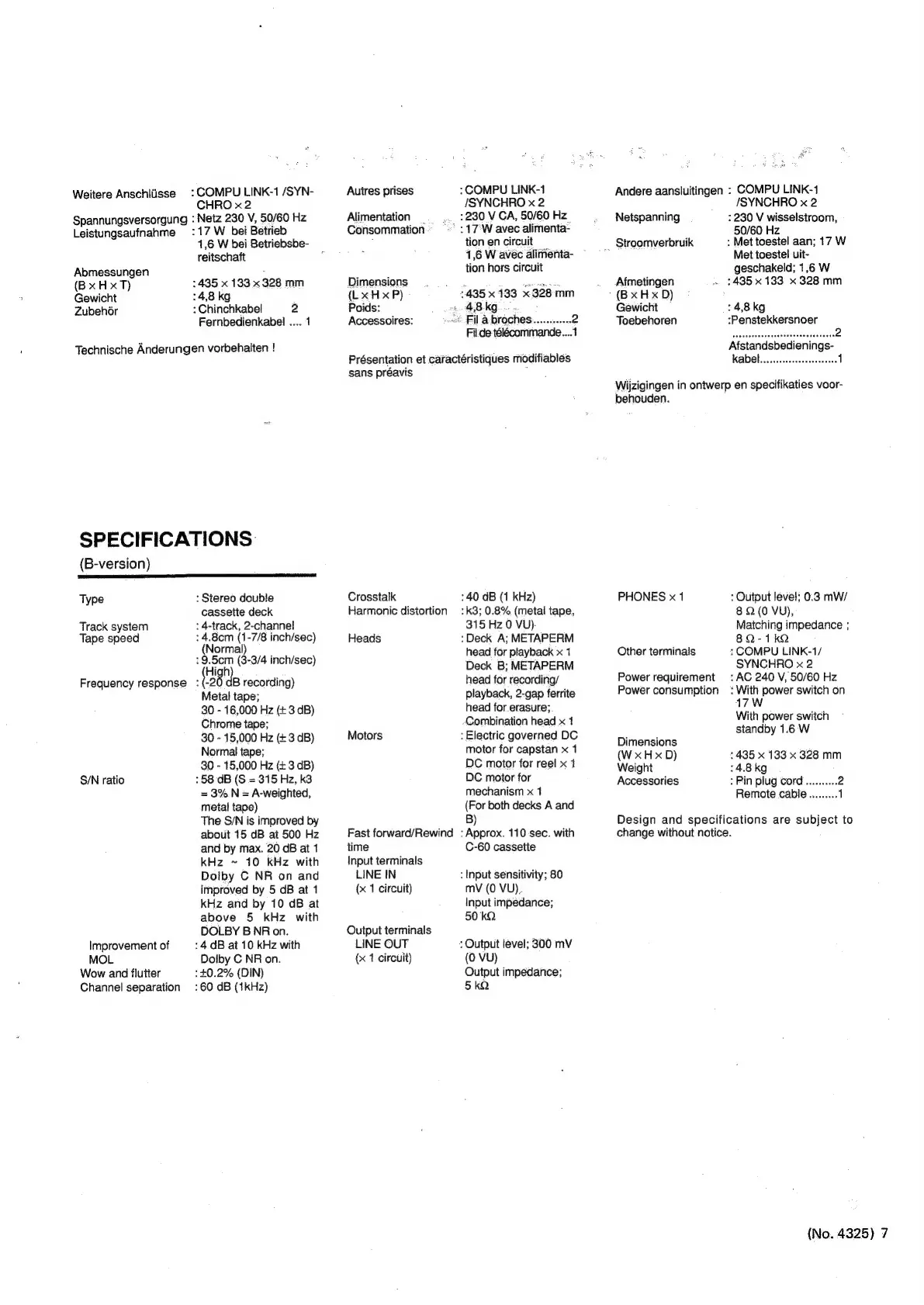

SPECIFICATIONS
(B-version)
Type : Stereo double
cassette deck
Track system :4-track, 2-channel
Tape speed :4.8cm (1-7/8 inch/sec)
Frequency response
S/N ratio
Improvement of
MOL
Wow and flutter
Channel separation
(Normal)
:9.5cm (3-3/4 inch/sec)
High
: ("58 de recording)
Metal tape;
30 - 16,000 Hz (+ 3 dB)
Chrome tape;
30 - 15,000 Hz (+ 3 dB)
Normal tape;
30 - 15,000 Hz (+ 3 dB)
:58 dB (S = 315 Hz, k3
= 3% N = A-weighted,
metal tape)
The S/N is improved by
about 15 dB at 500 Hz
and by max. 20 cB at 1
kHz ~ 10 kHz with
Dolby C NR on and
improved by 5 dB at 1
kHz and by 10 dB at
above 5 kHz with
DOLBY B NR on.
:4 dB at 10 kHz with
Dolby C NR on.
:£0.2% (DIN)
:60 dB (1kHz)
Autres prises
Alimentation _
Consommation -
Dimensions
(Lx H x P)
Poids:
Accessoires:
: COMPU LINK-1
ISYNCHRO x 2
:230 V CA, 50/60 Hz
= 117°W avec alimenta-
tion en circuit a,
1,6 W avec alimenta-
tion hors circuit
:435 x133 x 328 mm
. 4,8-kg
«Fil & broches............. 2
Fil de télécommande....1
Présentation et caractéristiques modifiables
sans préavis
Crosstalk
Harmonic distortion
Heads
:40 dB (1 kHz)
:k3; 0.8% (metal tape,
315 Hz 0 VU):
:Deck A; METAPERM
head for playback x 1
Deck B; METAPERM
head for recording/
playback, 2-gap ferrite
head for erasure;
-Combination head x 1
Motors
Fast forward/Rewind :
time
Input terminals
LINE IN
(x 1 circuit)
Output terminals
LINE OUT
(x 1 circuit)
: Electric governed DC
motor for capstan x 1
DC motor for reel x 1
DC motor for
mechanism x 1
(For both decks A and
B)
Approx. 110 sec. with
C-60 cassette
: Input sensitivity; 80
mV (0 VU).
Input impedance;
50 kQ
: Output level; 300 mV
(0 VU)
Output impedance;
5 kQ
_ Stroomverbruik
Andere aansluitingen : COMPU LINK-1
ISYNCHRO x 2
:230 V wisselstroom,
50/60 Hz
: Met toestel aan; 17 W
Met toestel uit-
geschakeld; 1,6 W
Netspanning
Afmetingen 2435 x 133 x 328 mm
-(BxHxD)
Gewicht — 74,8 kg
Toebehoren :Penstekkersnoer
oseuteducaseasateazavsesoeetis 2
Afstandsbedienings-
Kabol.s siciisessiraie 1
Wijzigingen in ontwerp en specifikaties voor-
behouden.
PHONES x 1 : Output fevel; 0.3 mW/
82 (0 VU),
Matching impedance ;
8Q-1kQ
: COMPU LINK-1/
SYNCHRO x 2
: AC 240 V, 50/60 Hz
: With power switch on
7W
Other terminals
Power requirement
Power consumption
With power switch
standby 1.6 W
Dimensions
(W xH x D) 1435 x 133 x 328 mm
Weight 14.8 kg
Accessories : Pin plug cord .......... 2
Remote cable......... 1
Design and specifications are subject to
change without notice.
(No. 4325) 7
