1-10 (No.MB506)
3.1.3 Removing the DVD mechanism assembly
(See Fig. 6 and 7)
(1) Disconnect the card wire from DVD mechanism assembly
connected to CN402, CN403 and CN404 of main board.
(See Fig.6)
(2) Disconnect the connector wire from USB jack board con-
nected to CN811
of DVD module board. (See Fig.7)
(3) Remove the four screws E attaching the DVD mechanism
assembly. (See Fig.6)

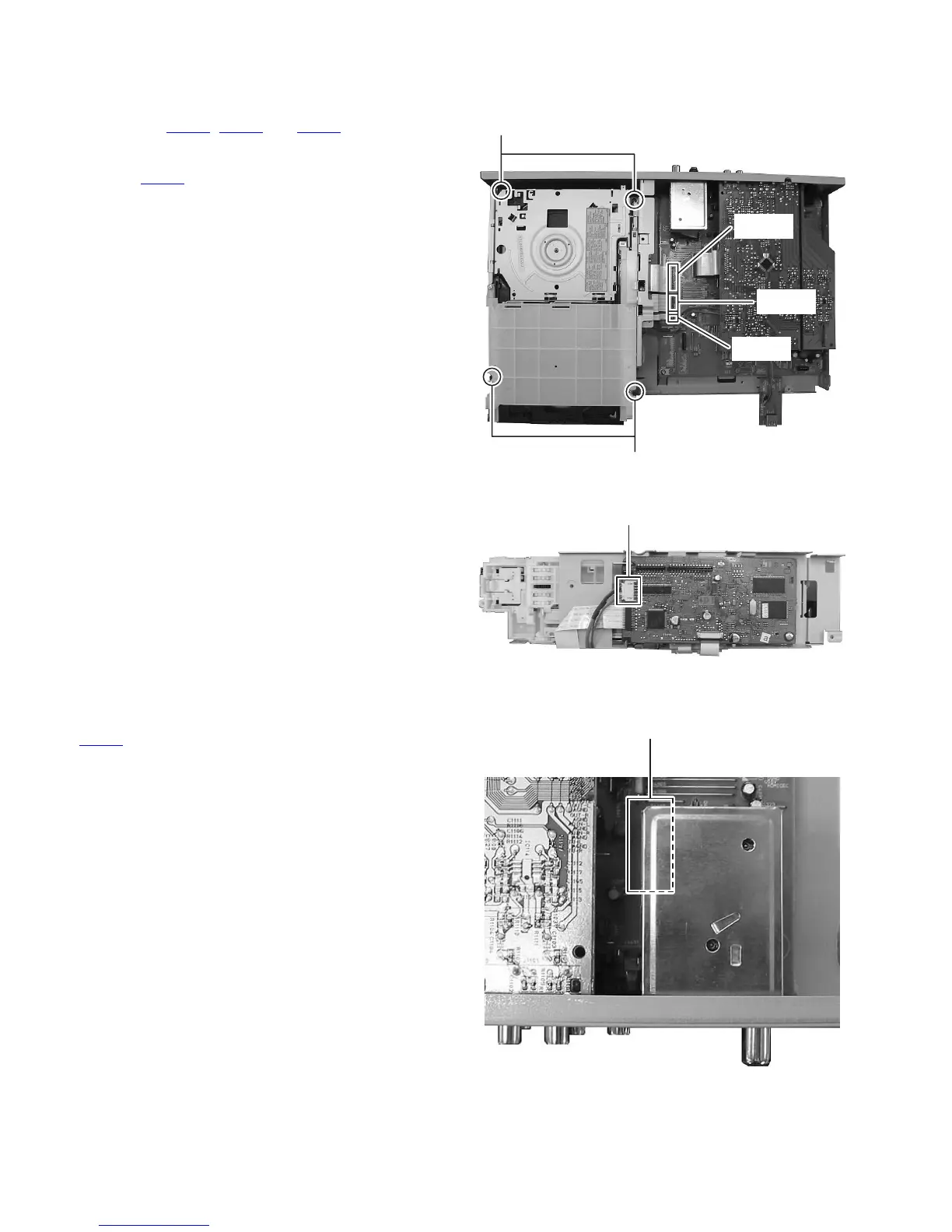

Fig.6
Fig.7
3.1.4 Removing the tuner pack
(See Fig.2 and 8)
(1) Disconnect the card wire from tuner pack connected to
CN410
of main board. (See Fig.8)
(2) Remove the two screws F attaching the tuner pack. (See
Fig.2)
Fig.8
CN402
CN403
CN404
E
E
CN811
CN410
