3.1.6 Removing the USB jack board assembly
(See Fig. 13)
(1) Disconnect the connector wire from USB jack board as-
sembly connected to connector CN811
of the DVD servo
board assembly.
(2) Remove the one screw M attaching the USB jack board as-
sembly.

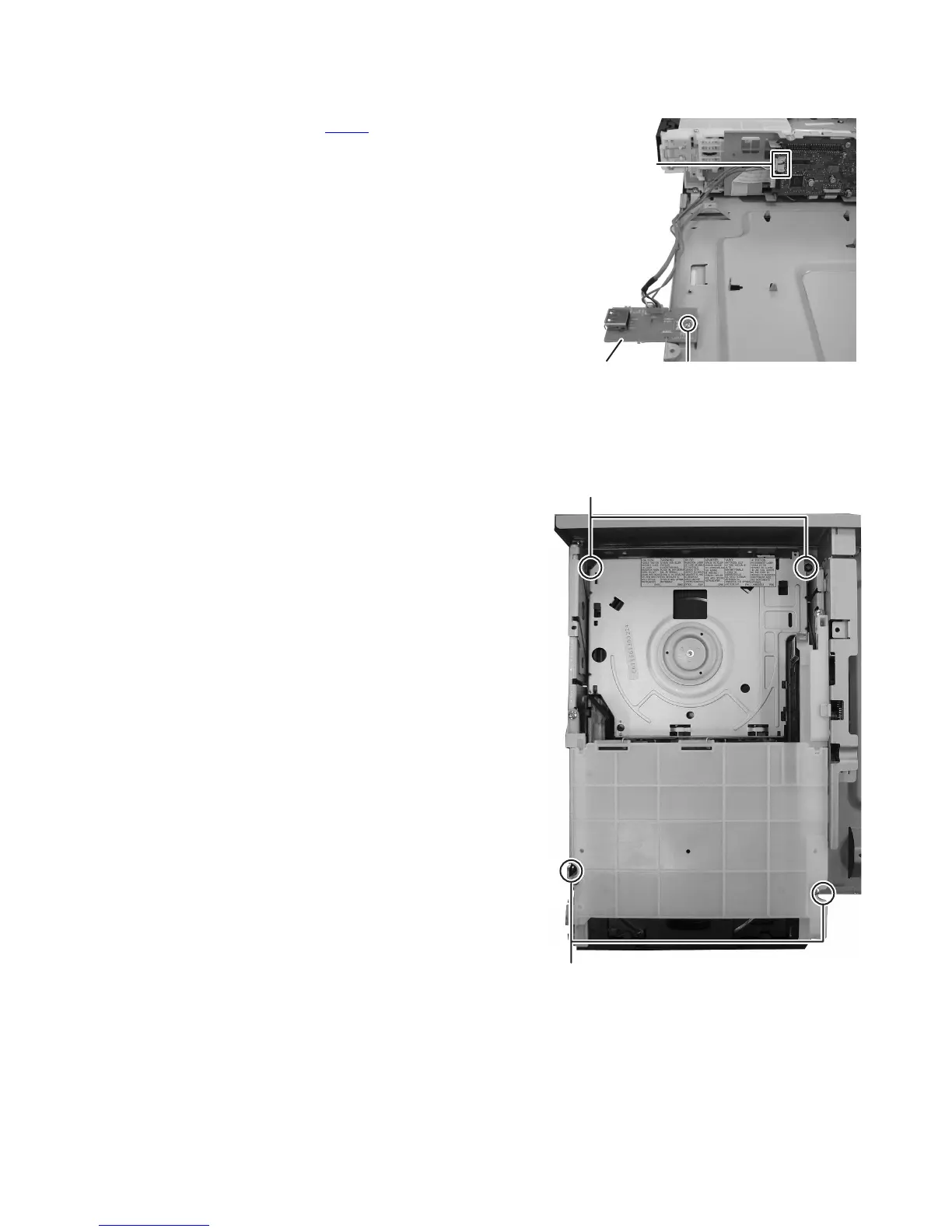

Fig.13
3.1.7 Removing the DVD changer mechanism assembly
(See Fig. 14)
(1) Remove the four screws N attaching the DVD changer
mechanism assembly.
Fig.14
USB jack board
CN811
M
N
N
