3.1.5 Removing the Main board assembly
(See Fig. 11, 12)
(1) Disconnect the card wires from DVD servo board assembly
connected to connector CN402, CN403 and CN404 of the
Main board assembly. (See Fig. 11)
(2) Remove the four screws K attaching the Main board as-
sembly. (See Fig. 11)
(3) Remove the four screws L attaching the Main board as-
sembly from back side. (See Fig. 12)

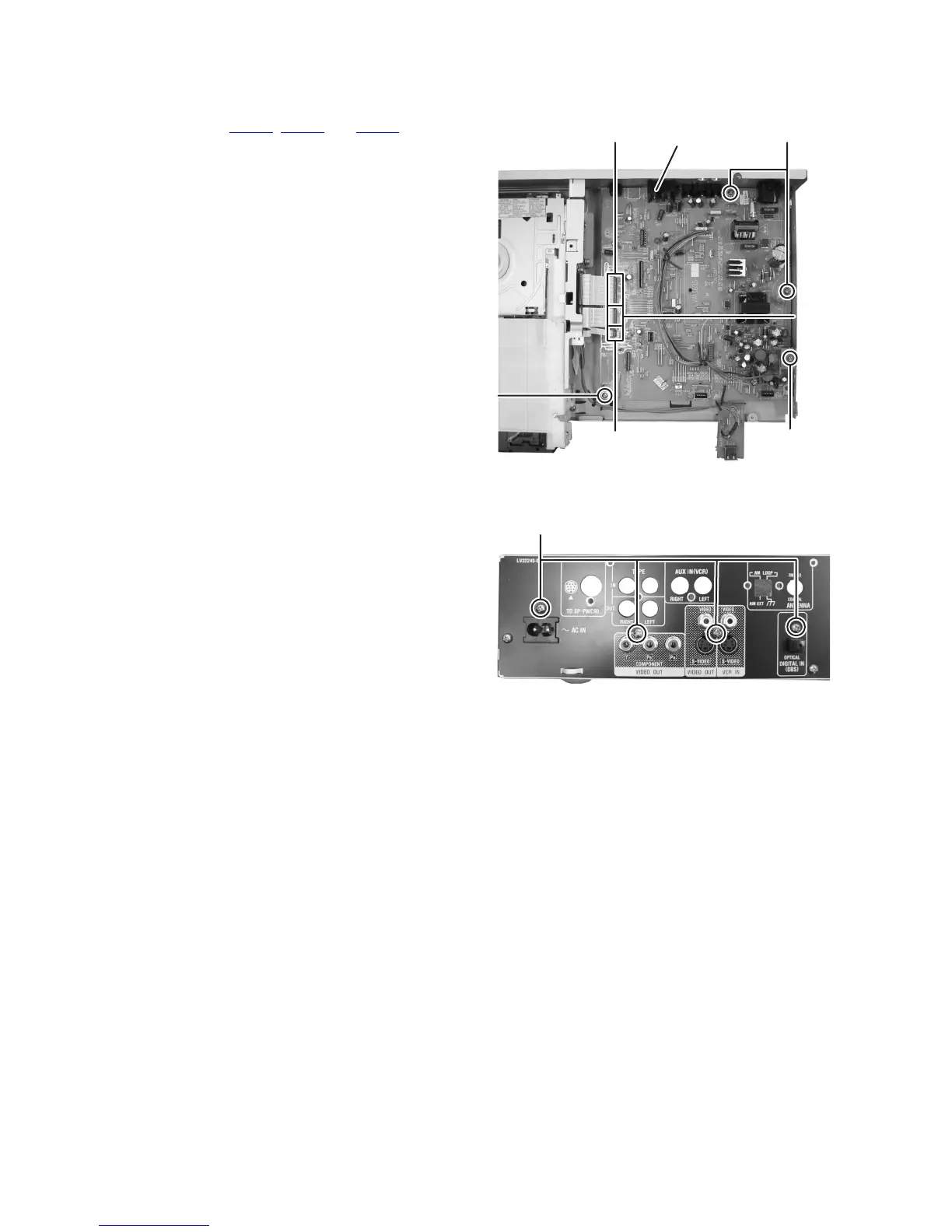

Fig.11
Fig.12
Main board
CN404
CN402
CN403
K
K
K
L
