(No.MB570)1-11
3.1.4 Removing the Tuner pack
(See Fig. 9, 10)
(1) Disconnect the card wire from Tuner pack connected to
connector CN410
of the Main board assembly. (See Fig. 9)
(2) Remove the two screws J attaching the Tuner pack. (See
Fig. 10)

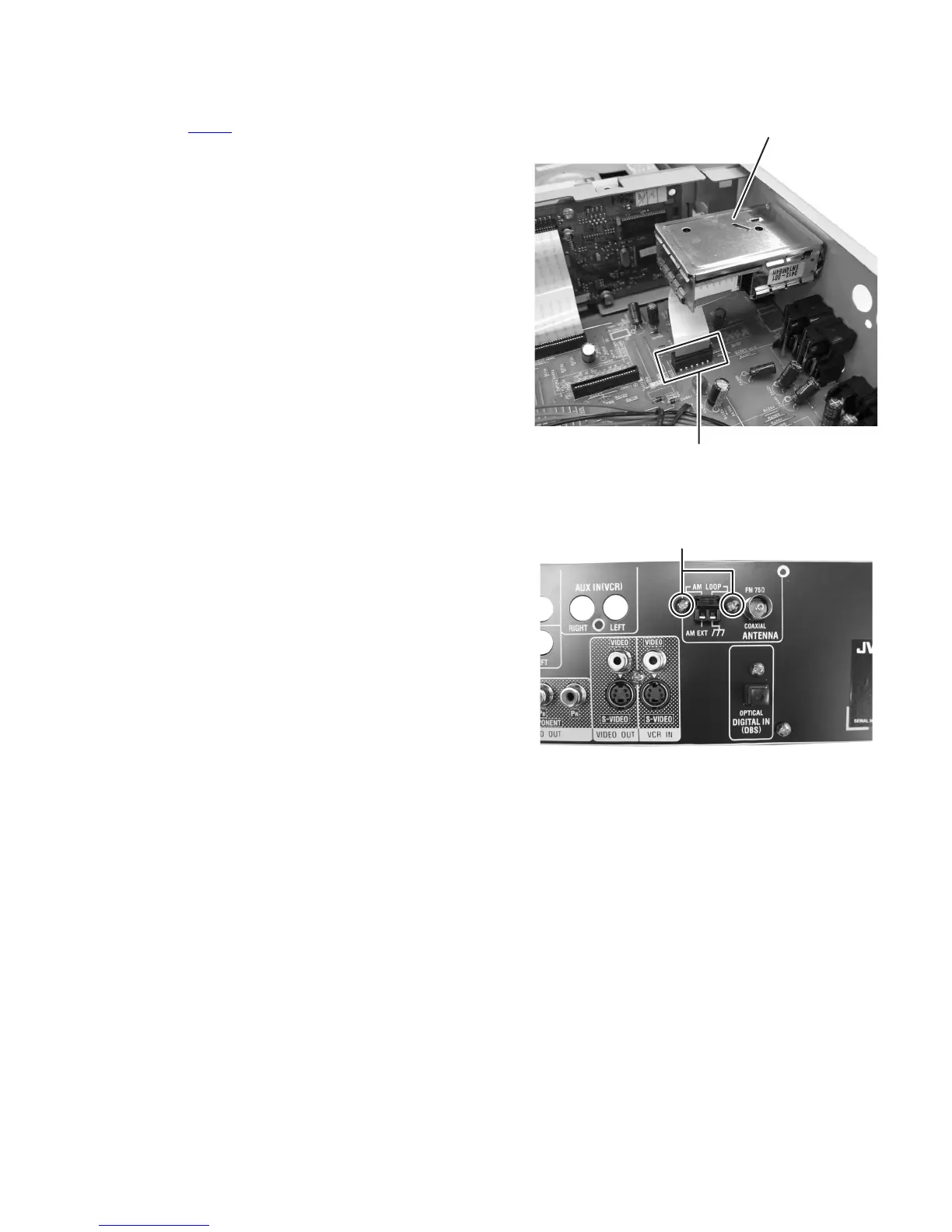

Fig.9
Fig.10
CN410
Tuner
J
