(No.MB570)1-29

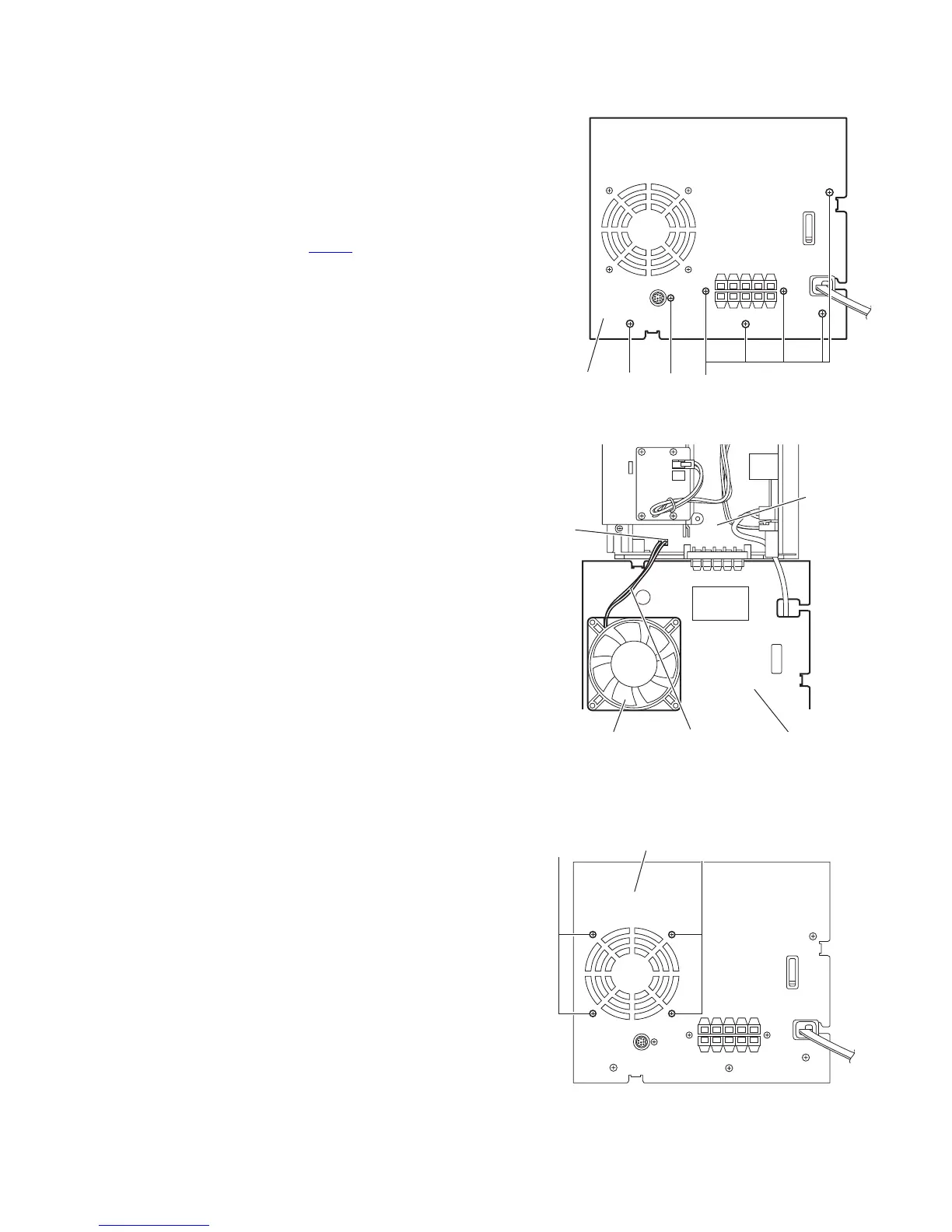

3.3.2 Removing the rear panel
(See Figs.4 and 5)
• Prior to performing the following procedure, remove the ampli-
fier assembly.
(1) From the back side of the amplifier assembly, remove the
six screws C and screw D attaching the rear panel. (See
Fig.4.)
(2) Take out the rear panel with fan motor backward from the
amplifier assembly.
(3) From the top side of the amplifier assembly, disconnect the
fan wire from the connector CN308
on the main board.
(See Fig.5.)
(4) Take out the rear panel.
Fig.4
Fig.5
3.3.3 Removing the fan motor
(See Fig.6)
• Prior to performing the following procedures, remove the am-
plifier assembly and rear panel.
(1) From the front side of the rear panel, remove the four
screws E attaching the fan motor.
(2) Take out the fan motor.
Fig.6
Rear panel
CDC
Fan motor Rear panelFan wire
CN308
Main board
Rear panel
To Next Page
