JVC TH-C90A - Page 9

(No.MB570)1-9

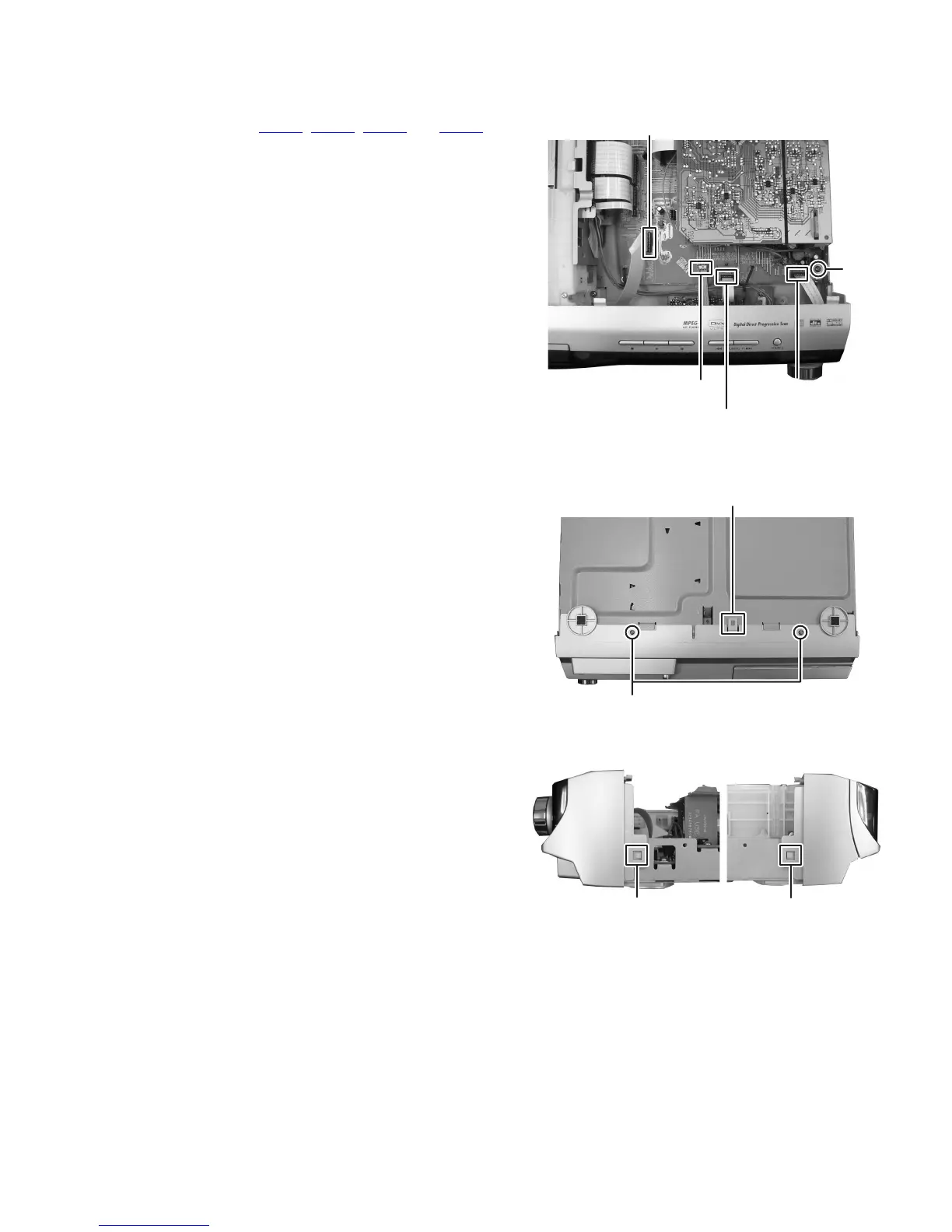

3.1.2 Removing the Front panel assembly
(See Fig. 3 to 5)
(1) Disconnect the card wires from Front panel assembly con-
nected to connectors CN450
, CN457, CN455 and CN451
of the main board assembly. (See Fig. 3)
(2) Remove the one screw C attaching the earth wire to Main
board assembly. (See Fig. 3)
(3) Remove the two screws D attaching the Front panel as-
sembly from bottom side. (See Fig. 4)
(4) Disengage the hook a from the bottom chassis. (See Fig.
4)
(5) Disengage the hook b and c from the both side of the bot-
tom chassis. (See Fig. 5)
Fig.3
Fig.4
Fig.5
CN450
CN457
CN455
CN451
C
D
a
bc
