JVC TH-D5B User Manual

(No.MB618)1-9

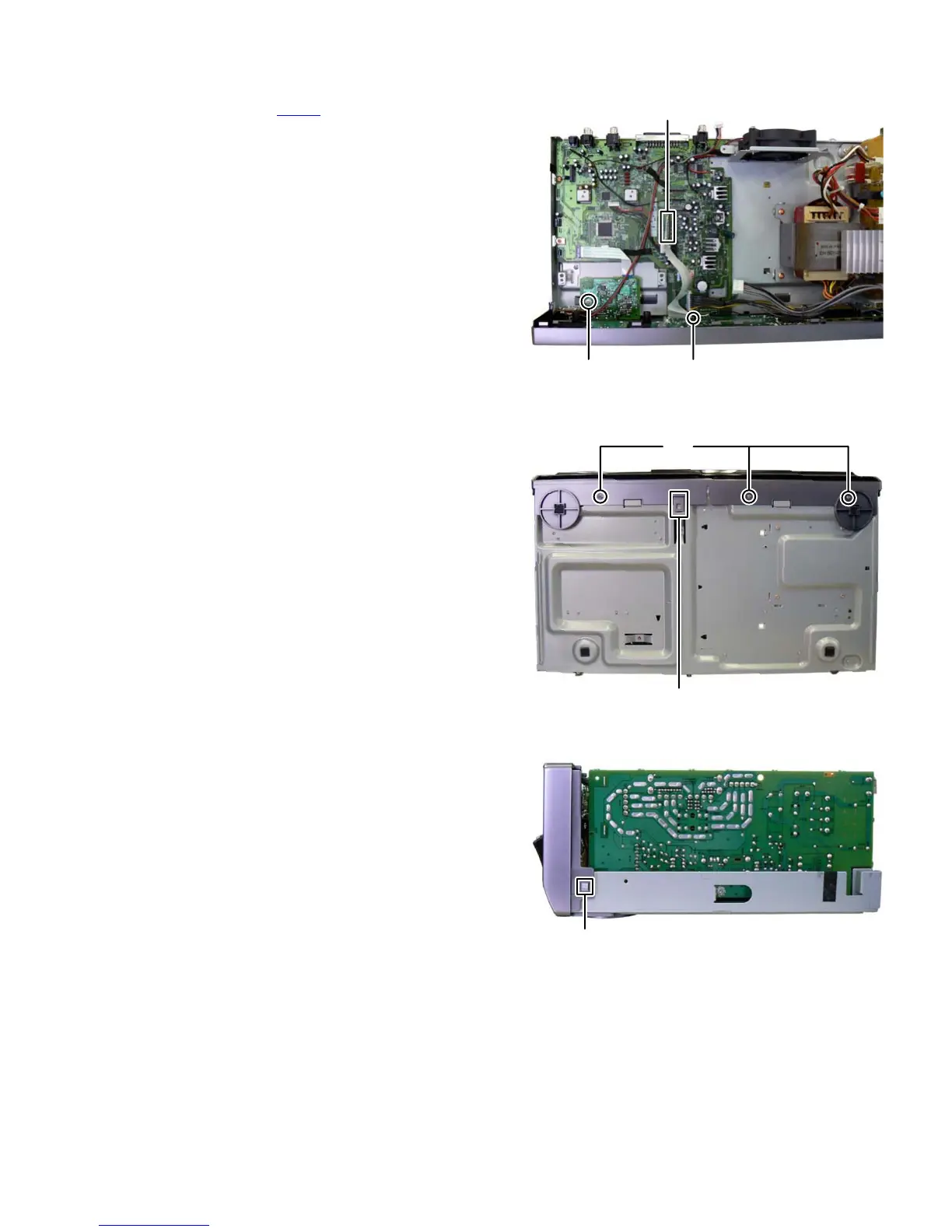

3.1.5 Removing the FRONT PANEL assembly (See Fig.6 to 8)
(1) Disconnect the card wire from FRONT PANEL assembly
connected to connector CN211
of the MAIN BOARD as-
sembly. (See Fig.6)
(2) Remove the one screw N attaching the EARTH WIRE from
FRONT PANEL assembly. (See Fig.6)
(3) Remove the one screw P attaching the EARTH WIRE from
USB BOARD assembly. (See Fig.6)
(4) Remove the three screws Q attaching the FRONT PANEL
assembly. (See Fig.7).
(5) Disengage hook a of bottom side and two hooks b of the
both side of FRONT PANEL assembly. (See Fig.7, 8)
Fig.6
Fig.7
Fig.8
CN211
NP
Q
hook a
hook b
