3.1.3 Removing the REAR PANEL (for European version) (See Fig.5 to 7)
(1) Disconnect the POWER CORD from connector CN101
of
the POWER BOARD assembly. (See Fig.5)
(2) Remove the three screws E attaching the HDMI BOARD
assembly. (See Fig.6)
(3) Remove the 13 screws F attaching the REAR PANEL.
(When remove the most right side screw, DIGITAL IN
JACK BOARD assembly come off, disconnect the connec-
tor wire from CN302
of the MAIN BOARD assembly.) (See
Fig.6, 7)

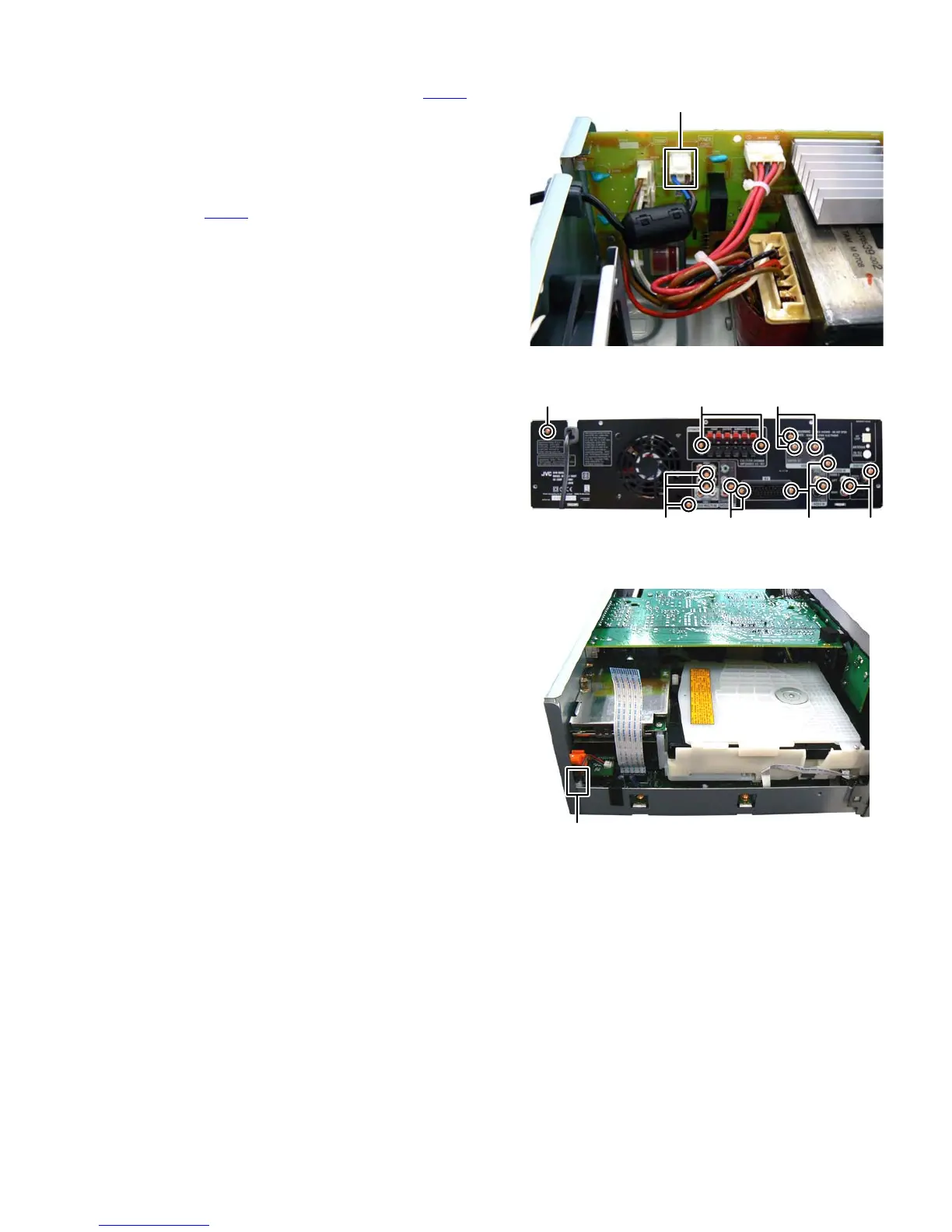

Fig.5
Fig.6
Fig.7
CN101
EF
FF FF
F
CN302
To Next Page
