3.2.3 Removing the feed motor assembly

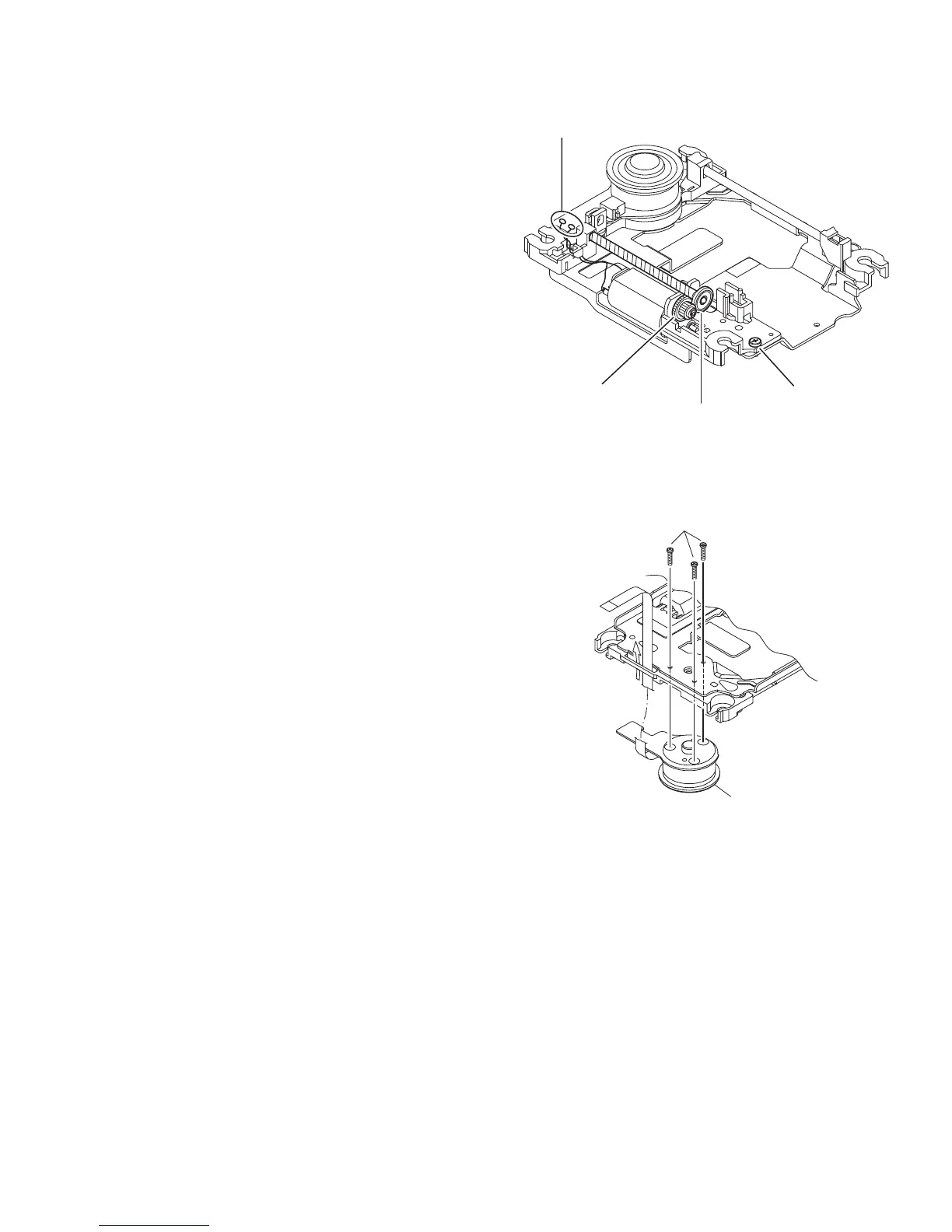

(See Fig.12)
(1) Remove the one screw G attaching the feed motor assem-
bly.
(2) Remove the feed motor wires from solder part of spindle
motor board.
Fig.12
3.2.4 Removing the spindle motor assembly
(See Fig.13)
(1) Remove the three screws H attaching the spindle motor
from spindle motor board.
Fig.13
Lead screw
Middle gear
Splder part
G
Spindle motor
H
