JVC TH-M603

Connections
10
CAUTION
• When you connect speakers other than the supplied ones, use
speakers with the same speaker impedance (SPEAKER
IMPEDANCE) indicated near the speaker terminals on the rear of
the powered subwoofer.
• DO NOT connect more than one speaker to one speaker terminal.

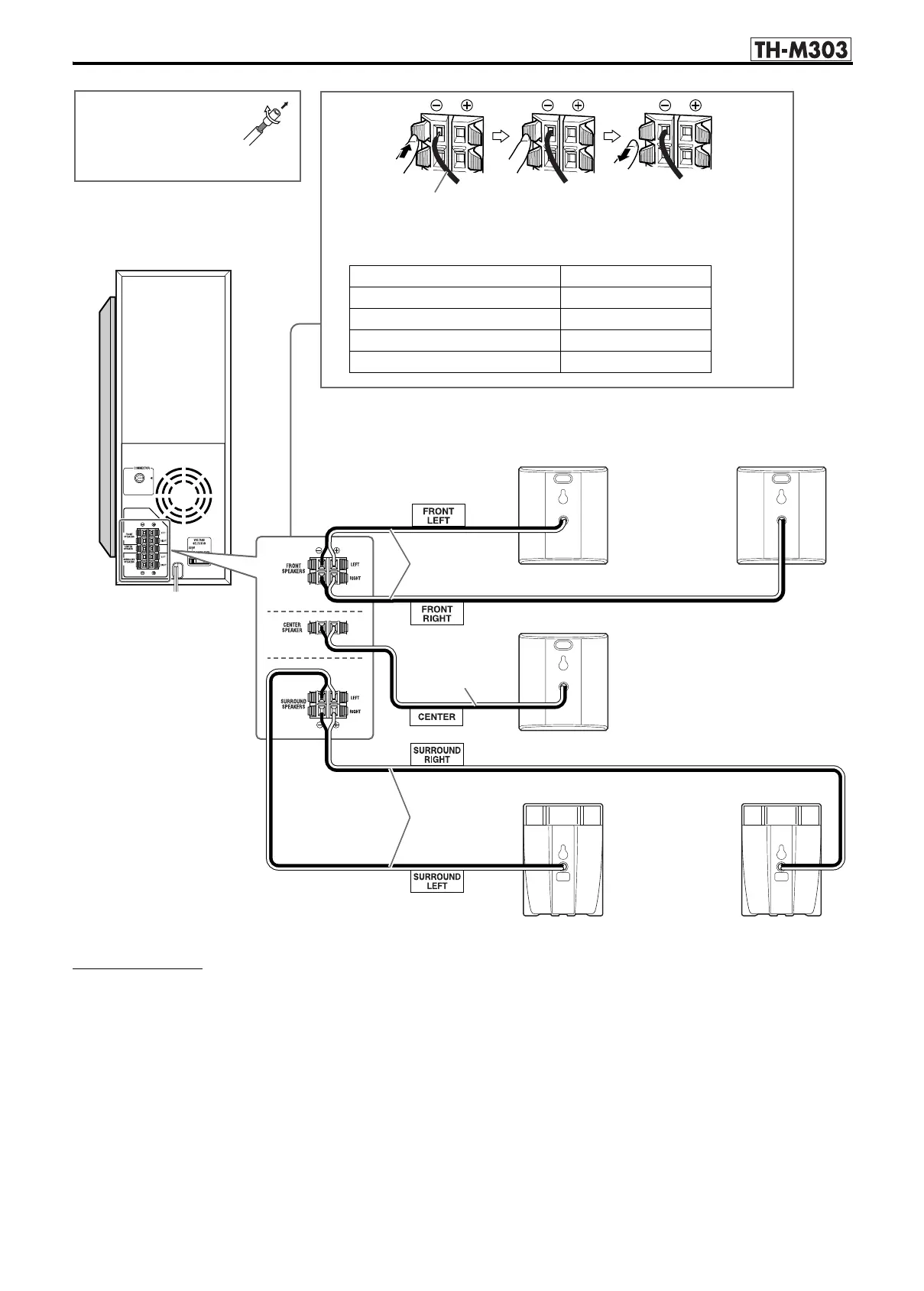

Connecting the satellite (front, center, surround)
speakers
Surround speakers
SP-THS9S
Center speaker
SP-THS9C
Copper
Black
Silver
Red
• Connect the silver cords to the black (r) terminals.
• Connect the copper cords to the (q) terminals referring to the table below:
Speaker cord (supplied)
FRONT SPEAKERS (LEFT) White
FRONT SPEAKERS (RIGHT) Red
CENTER SPEAKER Green
SURROUND SPEAKERS (LEFT) Blue
SURROUND SPEAKERS (RIGHT) Gray
Before connecting the
speaker cords;
Twist and pull the insulation coat
off and remove.
Powered subwoofer
SP-PWM603
Front speakers
SP-THS9F
4m 10m
4m
Continued on next page
