1-12 (No.MB180)
3.2 Front panel assembly section
• Prior to performing the following procedures, remove the top
cover and front panel assembly.
3.2.1 Removing the FL board
(See Fig.1)
(1) From the inside of the front panel assembly, remove the
screw A attaching the FL board.
(2) Take out the FL board from the front panel assembly.
Reference:
• When attaching the FL board, align the section a of the front
panel assembly to the right side of the FL board.
• After attaching the FL board, passing the card wire through
the Hook b.

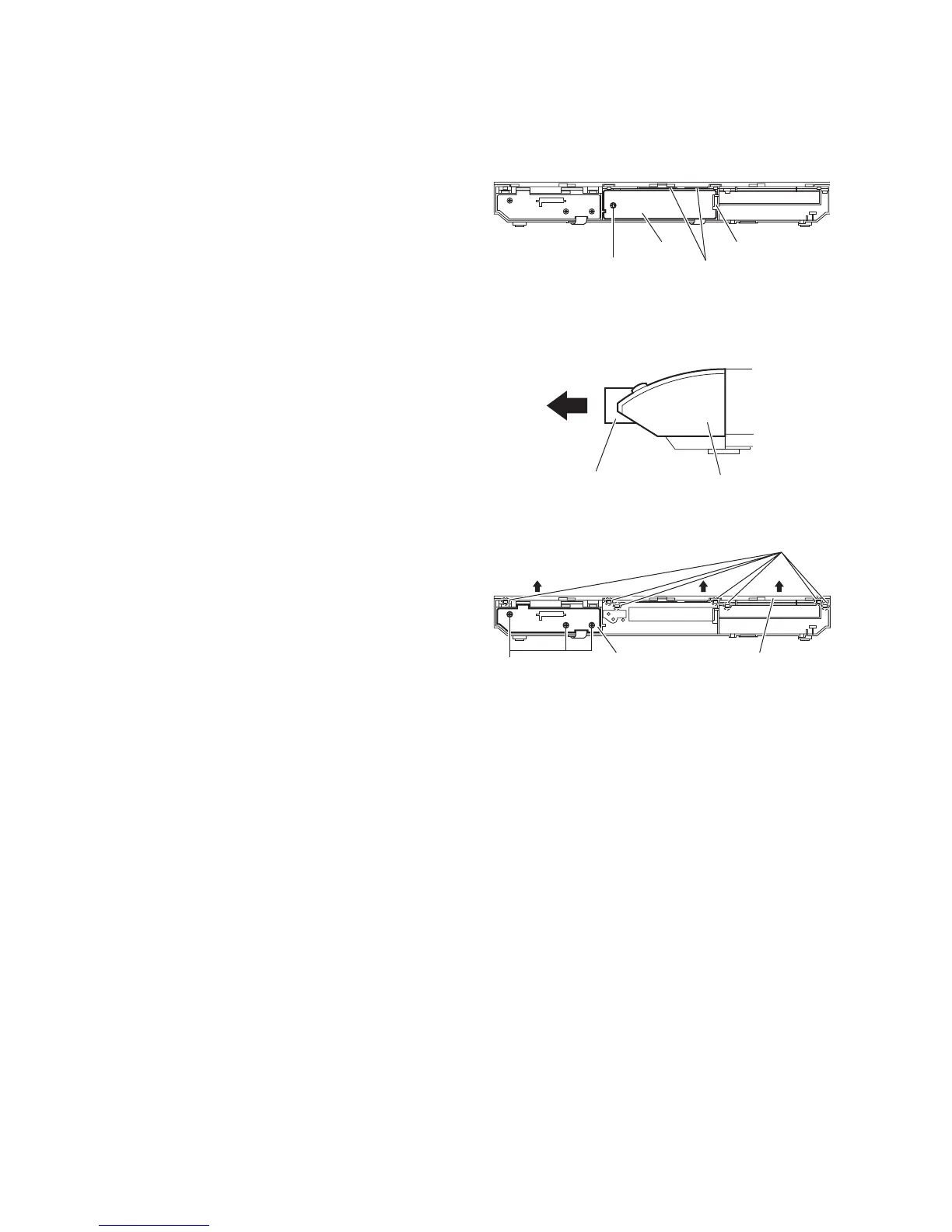

Fig.1
3.2.2 Removing the SW board
(See Figs.2 to 3)
(1) From the front side of the front panel assembly, remove the
volume jog from the front panel assembly forward.
(2) From the inside of the front panel assembly, release the
seven claws c attaching the front cover.
(3) Remove the front cover to the direction of the arrow.
(4) Remove the three screws B attaching the SW board, and
take out the SW board.
Fig.2
Fig.3
A
Hooks b
FL board
Section a
Volume jog
Front assembly
B
Claws c
SW board Front cover
To Next Page
