3.2.12 Removing the side (R) assembly

(See Fig.22 to 26)

• Prior to performing the following procedures, remove the tray

assemblies and DVD servo board.

• When removing the DVD servo board, it is not necessary to re-

move the DVD servo board from the bracket.

(1) From the inside of the side (R) assembly, release the two

tabs t of the gear cover and remove the gear cover out-

ward. (See Figs.22 and 23.)

(2) From the right side of the DVD changer mechanism as-

sembly, remove the elevator spring attached to the hook u

of the chassis assembly. (See Figs.23 and 24.)

(3) From the topside of the DVD changer mechanism assem-

bly, turn the gear 1 clockwise to move the elevator cam

rearward. (See Fig.24.)

(4) Move the two slots v and joint w of the elevator cam and

remove the elevator cam outward. (See Fig.24.)

(5) Remove the three screws U and detach the side (R) as-

sembly upward. (See Figs.25 and 26.)

Caution:

When reattaching the side (R) assembly, make sure to fit the

shaft (part x) into the slot of the select lever. (See Fig.25.)

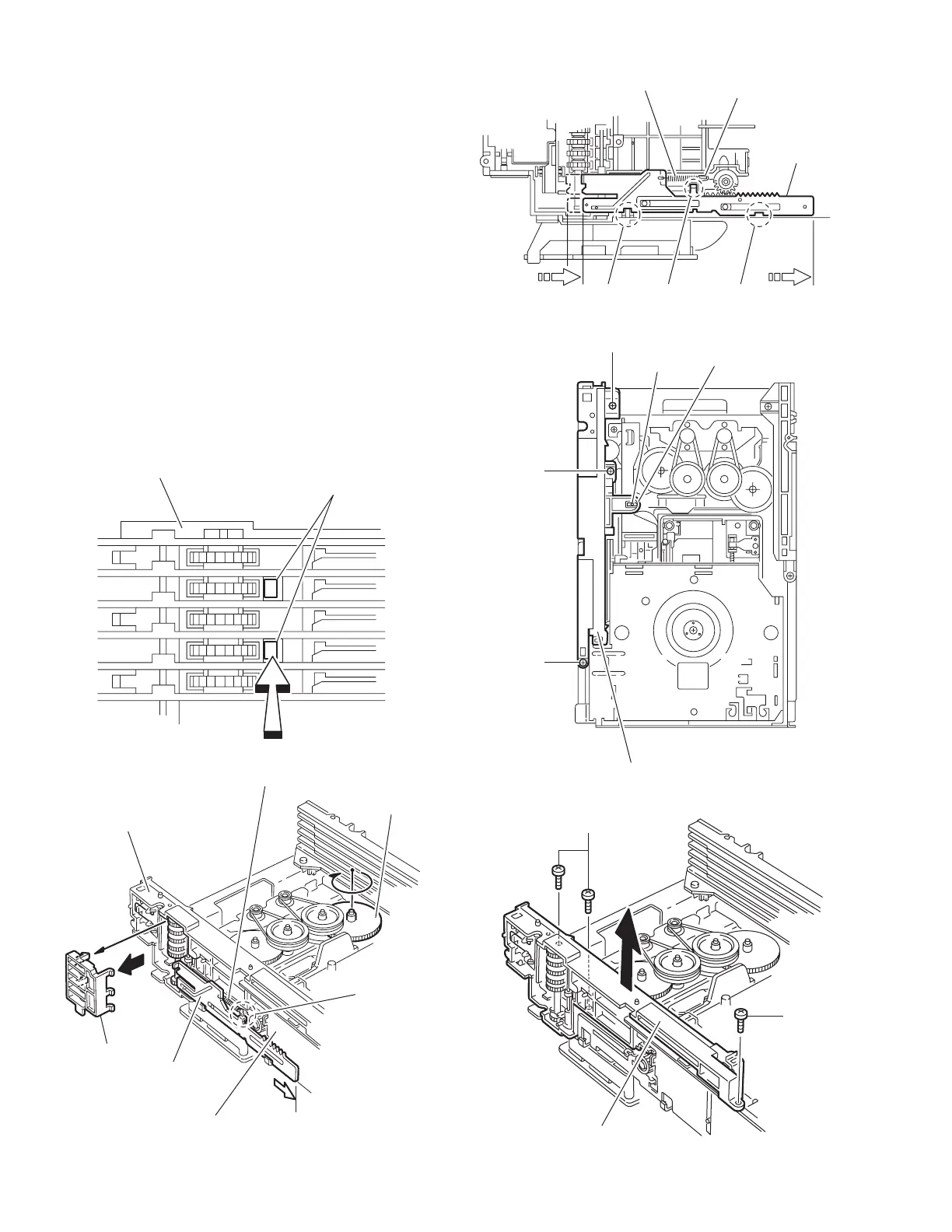

Fig.22

Fig.23

Fig.24

Fig.25

Fig.26

Side (R) assembly

Elevator spring

Gear cover

Elevator cam

Gear 1

Chassis assembly

Elevator cam

Elevator spring

Side (R) assembly

Select lever

Side (R) assembly
