TK-C685E/TK-C686E
䡵 CAMERA HEAD
Image pickup device : 1/4 type, Interline Transfer CCD
Effect pixels : 752 (H) x 582 (V)
Synchronization system
: Internal synchronization/Linelock
Video output : VBS 1 V(p-p) 75 K
Scanning frequency
: Horizontal 15.625 kHz, Vertical 50 Hz
S / N : 50 dB (TYP) (AGC mode: OFF,
Enhance level: –5)
48 dB (Minimum) (AGC mode: OFF,
Enhance level: –5)
Horizontal Resolution
: 540 lines (TYP, WIDE edge)
520 lines (Minimum, WIDE edge)
Minimum brightness of object:
Color : 1.0 lx (50 % output, AGC SUPER,
WIDE edge)
0.5 lx (25 % output, AGC SUPER,
WIDE edge, theoretical value)
Black-and-white (theoretical value)
: 0.08 lx (50 % output, AGC SUPER,
WIDE edge)
0.04 lx (25 % output, AGC MID, WIDE
edge)
White balance : Select from ATW-W/ATW-N/AWC
Electronic Shutter : 1/50 seconds (Normal) 1/120 seconds
(50 Hz Flickerless), 1/250, 1/500, 1/
1000, 1/2000, 1/4000, 1/10000
Backlight Compensation
: YES, 4 photometry areas can be
selected
Color level adjustment
: YES
Contour adjustment: Effective for both horizontal and
vertical (adjustable level)
䡵 Lens
Zoom ratio
TK-C685E : Approx. 27 times
TK-C686E : Approx. 36 times
Focal length
TK-C685E : 3.43 mm to 92.6 mm
TK-C686E : 3.43 mm to 122 mm
Maximum aperture ratio:
TK-C685E : F1.6 (WIDE) to F3.5 (TELE)
TK-C686E : F1.6 (WIDE) to F4.5 (TELE)
Maximum aperture : F1.6 (Opened fully) to Equivalent to
F360
Maximum close-range
: Approx. 1.8 m (TELE)
Approx. 0.6 m (WIDE)
䡵 Rotation platform
Horizontal rotation range
:360⬚ endless rotation
Horizontal rotation speed
:
Approximately 0.04
⬚
/s to approximately
500
⬚
/s
Vertical rotation range : -5
⬚
to 185
⬚
(Horizontal to lower to Horizontal)
Vertical rotation speed :
Approximately 0.04⬚/s to
approximately 500⬚/s
䡵 Overall
Power requirements
: AC24 V 50 Hz/60 Hz, 1.3 A
Number of preset positions
: Up to 100
Suitable control unit :
RM-P2580
Surrounding temperature
: –10 I to 50 I (operation)
–0 I to 40 I (recommended)
Humidity : 20 % RH to 90 % RH (condensation is
not allowed)
Mass : 1.9 kg (including camera, dome cover,
ceiling mount bracket)
Accessories : Instructions .................................... 2
Ceiling Mount................................. 1
Dome Cover .................................. 1
Template ........................................ 1
Alarm Cable................................... 1
Wire Clamp.................................... 1

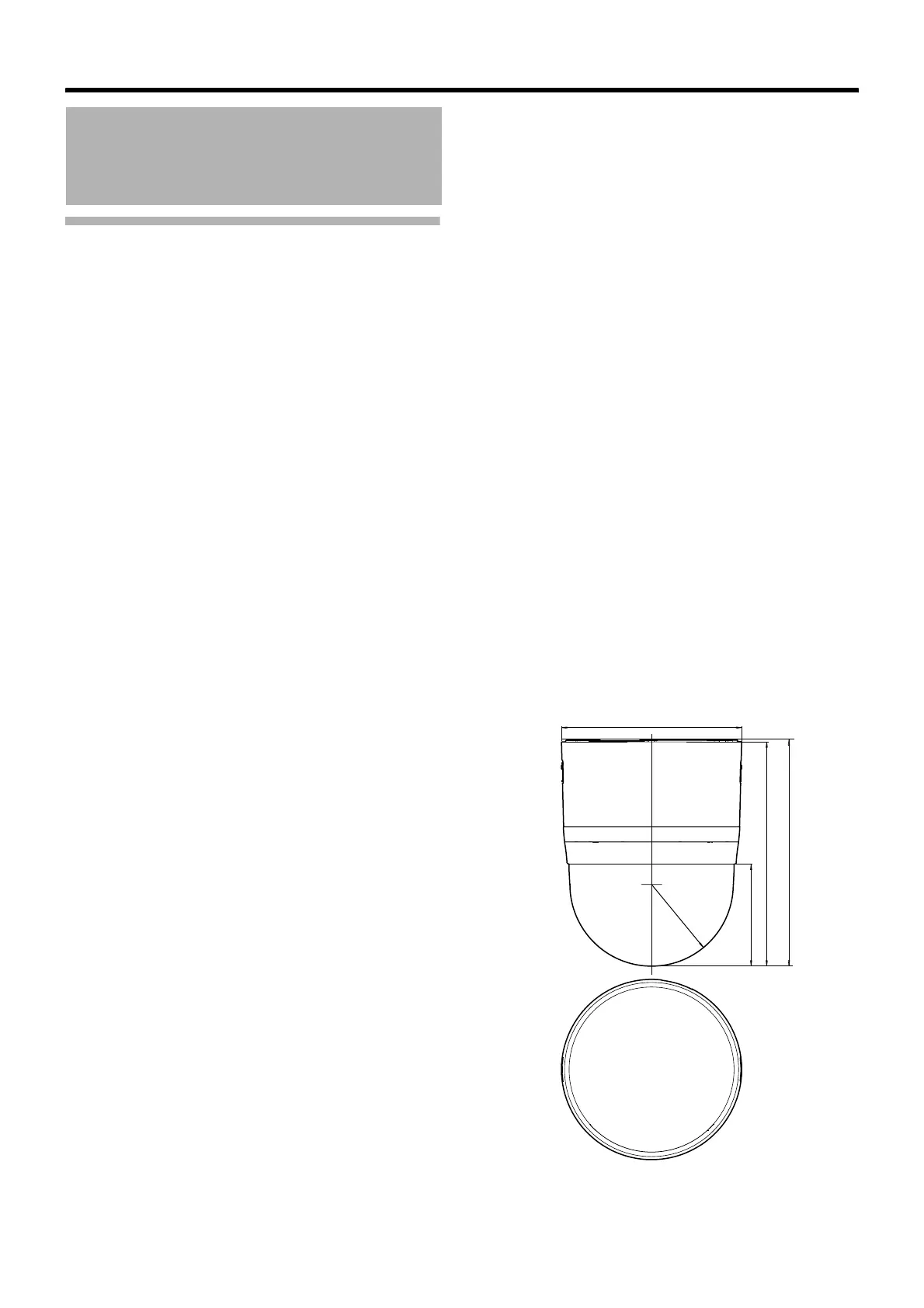

䡵 Dimension [Unit: mm (inch)]
Specifications
R160 (6 19/64)
201 (7 59/64)
199 (7
53/64)
90.5 (3
9/16)
S
R
7
2
.
5
(
2
5
5
/
6
4
)
