Rotation platform
Horizontal rotation range
:360 endless rotation
Horizontal rotation speed
: Approximately 0.04/s to
approximately 500/s
Vertical rotation range
:-5 to 185 (Horizontal to lower to
Horizontal)
Vertical rotation speed
: Approximately 0.04/s to
approximately 500/s
Overall
Power requirements
: AC24 V 50 Hz/60 Hz 2.7 A
Number of preset positions
: Up to 100
Suitable control unit
: RM-P2580
Surrounding temperature
:-40 I to 50 I (operation) (power is
supplied constantly)
T1
-30 I to 40 I (recommended)
Humidity : 20 % RH to 90 % RH (condensation is
not allowed)
Mass : 5.5 kg
Accessories
: Instructions.................................... 2
T1 When using in a low temperature (–40 I to –20 I)
environment, images may not be available for less than
2 hours until the built-in heater has warmed up. It is
recommended to always turn on the electricity for the
unit under a low temperature environment.

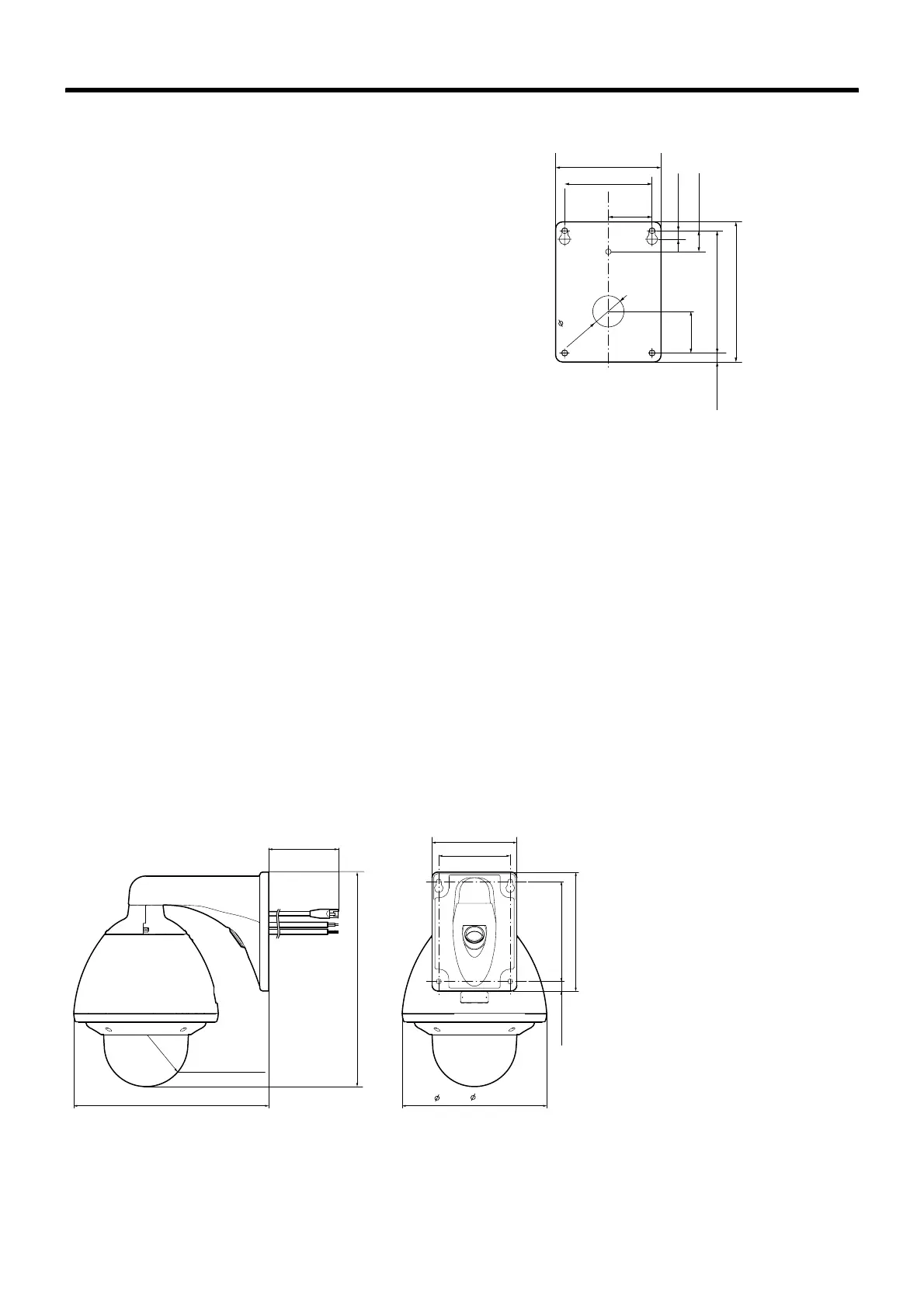

Wall mounting hole [Unit: mm (inch)]
Dimension [Unit: mm (inch)]
T Specifications and appearance of this unit are subject to change for further improvement without prior notice.
213
(8
25/64
)
176
(6
59/64
)
60
(2
23/64
)
20
(
51/64
)
152(5
63/64
)
126(4
31/32
)
63
(2
31/64
)
45
(1
49/64
)
12(
15/32
)
30(1
3/16
)
385 (15
5/32
)
350 (13
25/32
)
213 (8
25/64
)
176 (6
59/64
)
20
(
51/64
)
152 (5
63/64
)
126 (4
31/32
)
260 ( 10
15/64
)
SR75 (2
61/64
)
1440 (56
45/64
)
About
