9

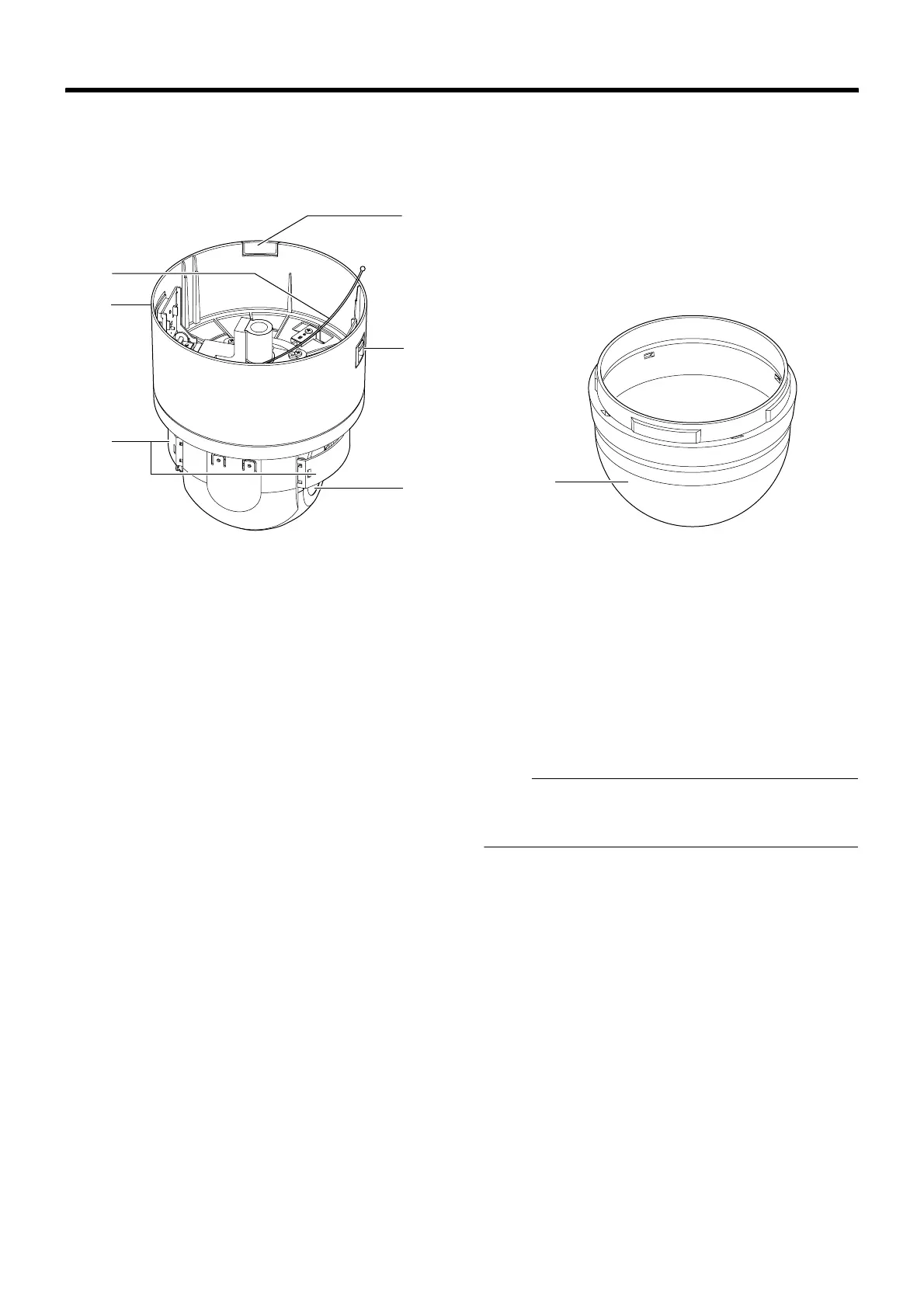

䡵 Camera
I Fixing holes (x3)
This hole is for mounting the ceiling mount bracket to the
ceiling or the ceiling recessed bracket (WB-S685U: Sold
separately).
J Setting Switch
This switch allows you to configure settings such as protocol
and SYNC.
(A Page 19)
K Machine ID Setting Switch
When the communication system is RS-485 multi DROP such
as the RM-P2580 system, a machine ID will be set for every
camera. (
A
Page 20)
L Option Switch
Configure this switch when Pelco protocol is used.
(A Page 19)
M Power lamp
The lamp lights up in green when AC24V power is turned on.
N Camera connection terminal (female)
This connects to the connection terminal (male) of the
camera.
O Fall Prevention Wire
This attaches to the fall prevention wire fixing bracket F of
the camera.
P Front Mask
Q Lens
Lens cannot be replaced.
R Camera fixing lock knob (x2)
This knob secures the camera to the ceiling so that it does
not fall.
S Cable cover
Remove the cover to pull the cables from the side of the
camera and mount the camera. (A Page 16)
T Dome Cover
The dome cover is a delicate object. Handle it with care.
Note :
● Do not peel off the protective sheet which is attached at
shipment, until the dome cover is mounted on the main
unit. (A Page 17)
R
O
Q
P
S
R
T
To Next Page
