UX-A5 A/B/E/G/GI/EN

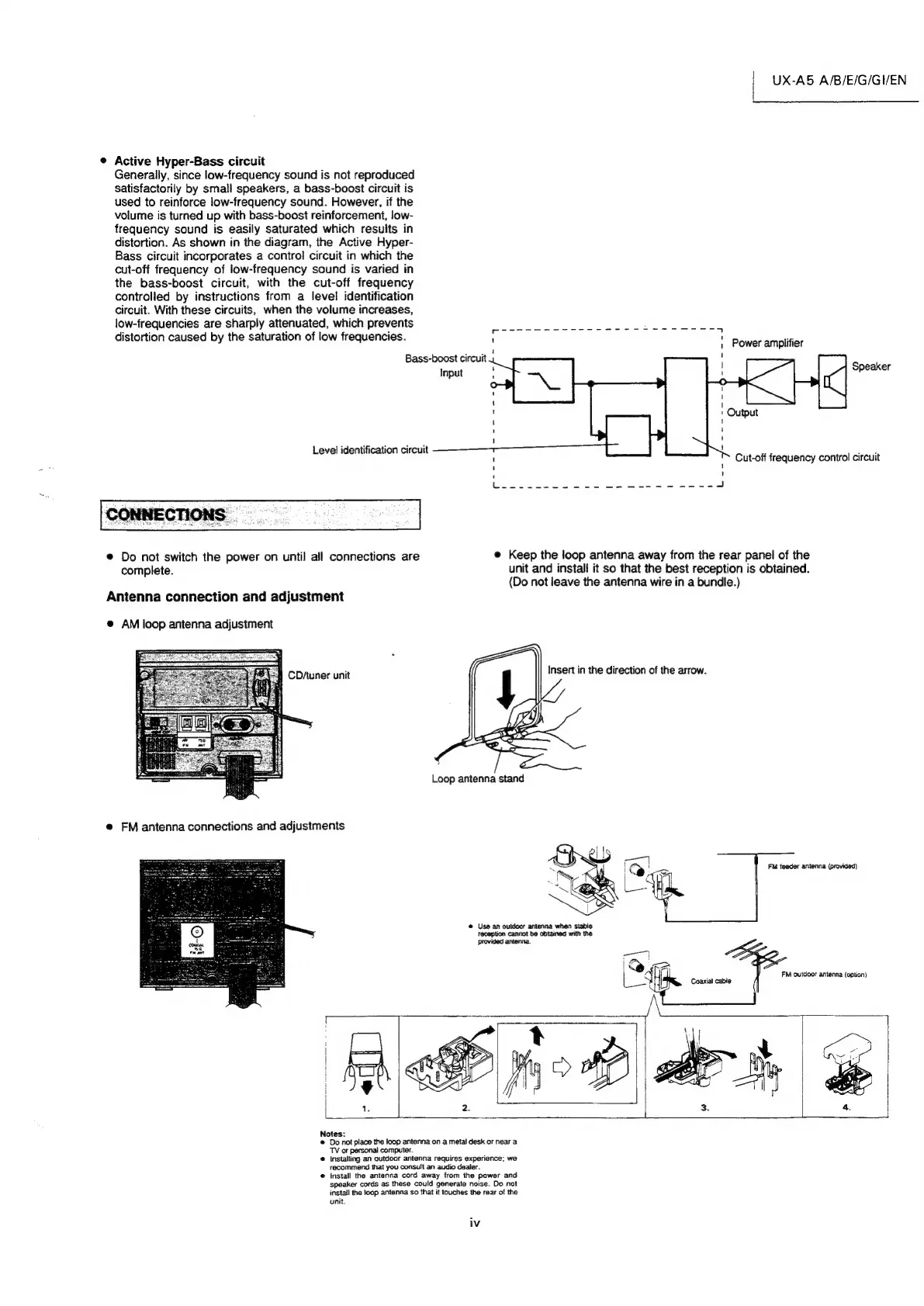

© Active Hyper-Bass circuit
Generally, since low-frequency sound is not reproduced
satisfactorily by small speakers, a bass-boost circuit is
used to reinforce low-frequency sound. However, if the
volume is turned up with bass-boost reinforcement, low-
frequency sound is easily saturated which results in
distortion. As shown in the diagram, the Active Hyper-
Bass circuit incorporates a control circuit in which the
cut-off frequency of low-frequency sound is varied in
the bass-boost circuit, with the cut-off frequency
controlled by instructions from a level identification
circuit. With these circuits, when the volume increases,
low-frequencies are sharply attenuated, which prevents
distortion caused by the saturation of low frequencies. i
Bass-boost circuit
Input
Speaker
Level
identification
circuit
aoe
1
Cut-off
frequency
control
circuit
beste ce ck a oe Seis Se ee Sed
@ Do not switch the power on until all connections are © Keep the loop antenna away from the rear panel of the
complete. unit and install it so that the best reception is obtained.
(Do not leave the antenna wire in a bundle.)
Antenna connection and adjustment
@ AM loop antenna adjustment
Insert in the direction of the arrow.
f/
CDftuner unit
Loop antenna stand
e FM antenna connections and adjustments
FM feeder antenna (provided)
@ Use an outdoor antenna when stable
reception cannot be obtained with the
provided antenna.
FM outdoor antenna (option)
Coaxial cable
Notes:
®@ Do not place the loop antenna on a metal desk or near a
TV or personal computer.
@ Installing an outdoor antenna requires experience; we
recommend that you consult an audio dealer.
@ Install the antenna cord away from the power and
speaker cords as these could generate noise. Do not
install the loop antenna so that it touches the rear of the
unit.
iv
