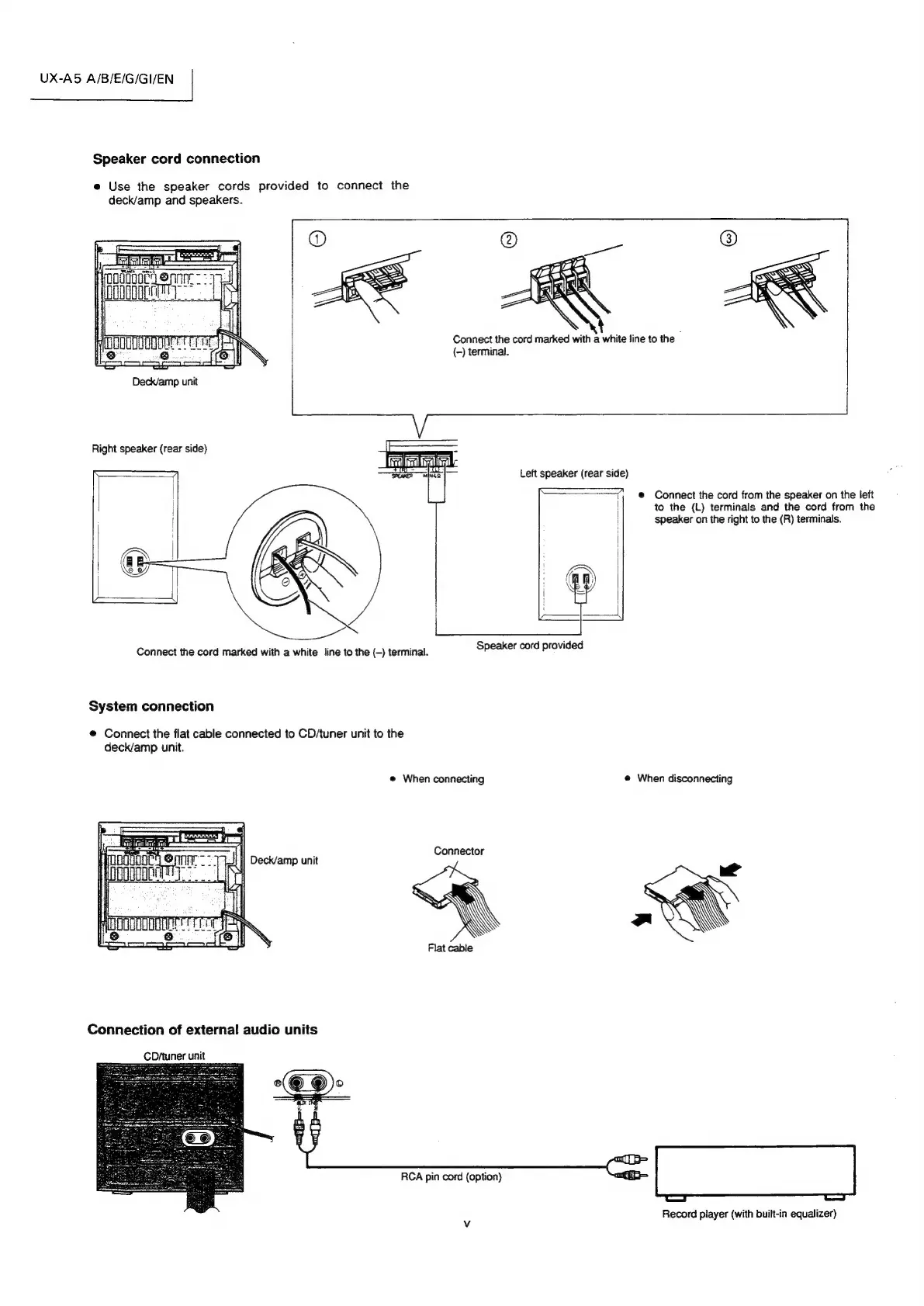

Speaker cord connection
e Use the speaker cords provided to connect the
deck/amp and speakers.
Connect the cord marked with a white fine to the _
(-) terminal.
Deck/amp unit
Right speaker (rear side)
Left speaker (rear side)
® Connect the cord from the speaker on the left
to the (L) terminals and the cord from the
speaker on the right to the (R) terminals.
Connect the cord marked with a white line to the (-) terminal. Speaker cord provided
System connection
@ Connect the flat cable connected to CD/tuner unit to the
deck/amp unit.
@ When connecting @ When disconnecting
Connector
a
\ >
Flat cable
Connection of external audio units
CDftuner unit
RCA pin cord (option)
Record player (with built-in equalizer)
