1-28
UX-A52R
System control board
(CN706, CN715, CN716)

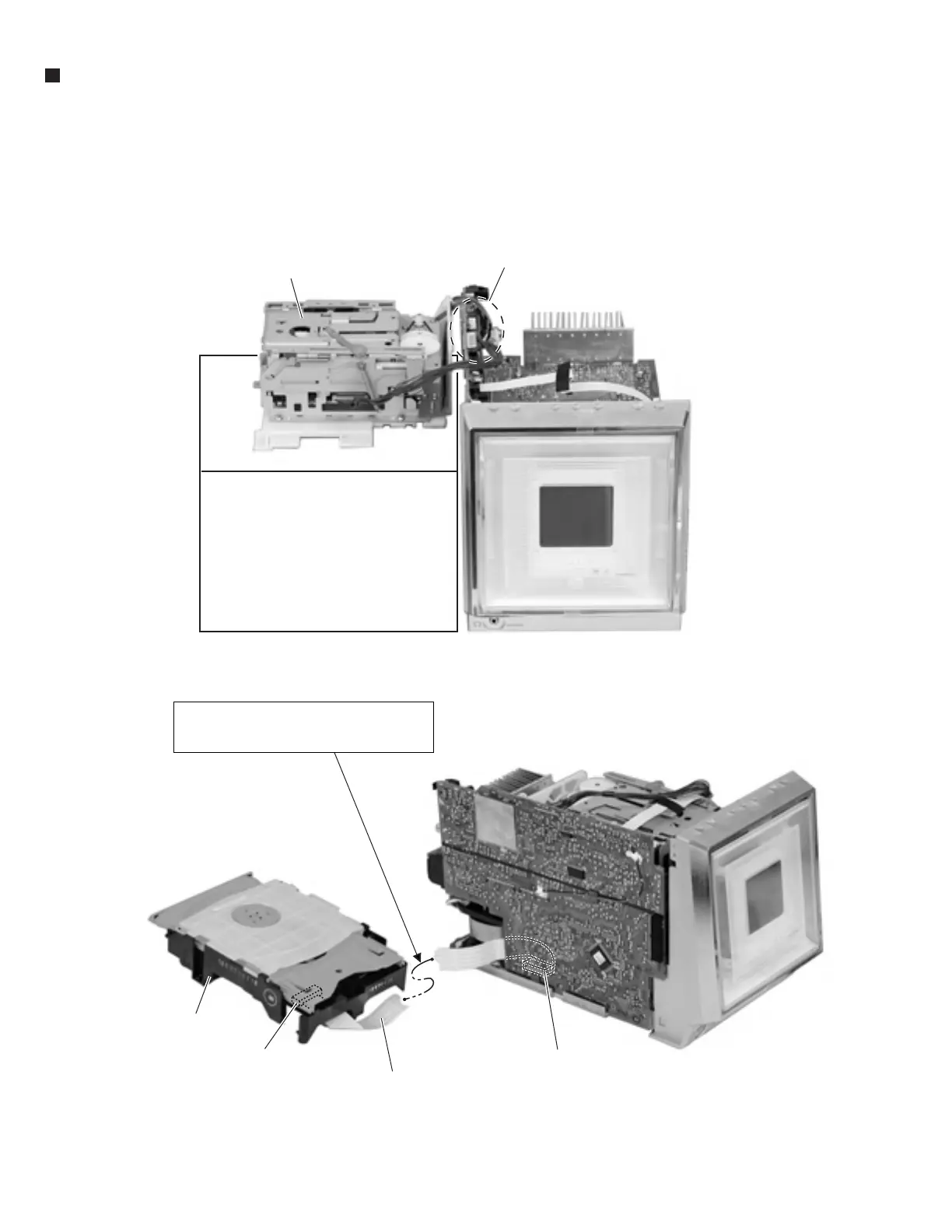

Cassette mechanism assembly
Extension code connecting method
CD mechanism assembly
CD servo control board
(CN651)
System control board
(CN704)
Extension wire
QUQ110-1940BJ
