Removing the key switch board / (d)
board (See Fig.32 and 33)
Prior to performing the following procedure, remove
the bracket (c).
Remove the three screws X attaching the key switch
board.
Remove the spring g and the screw Y attaching the
(d) board.
1.
2.

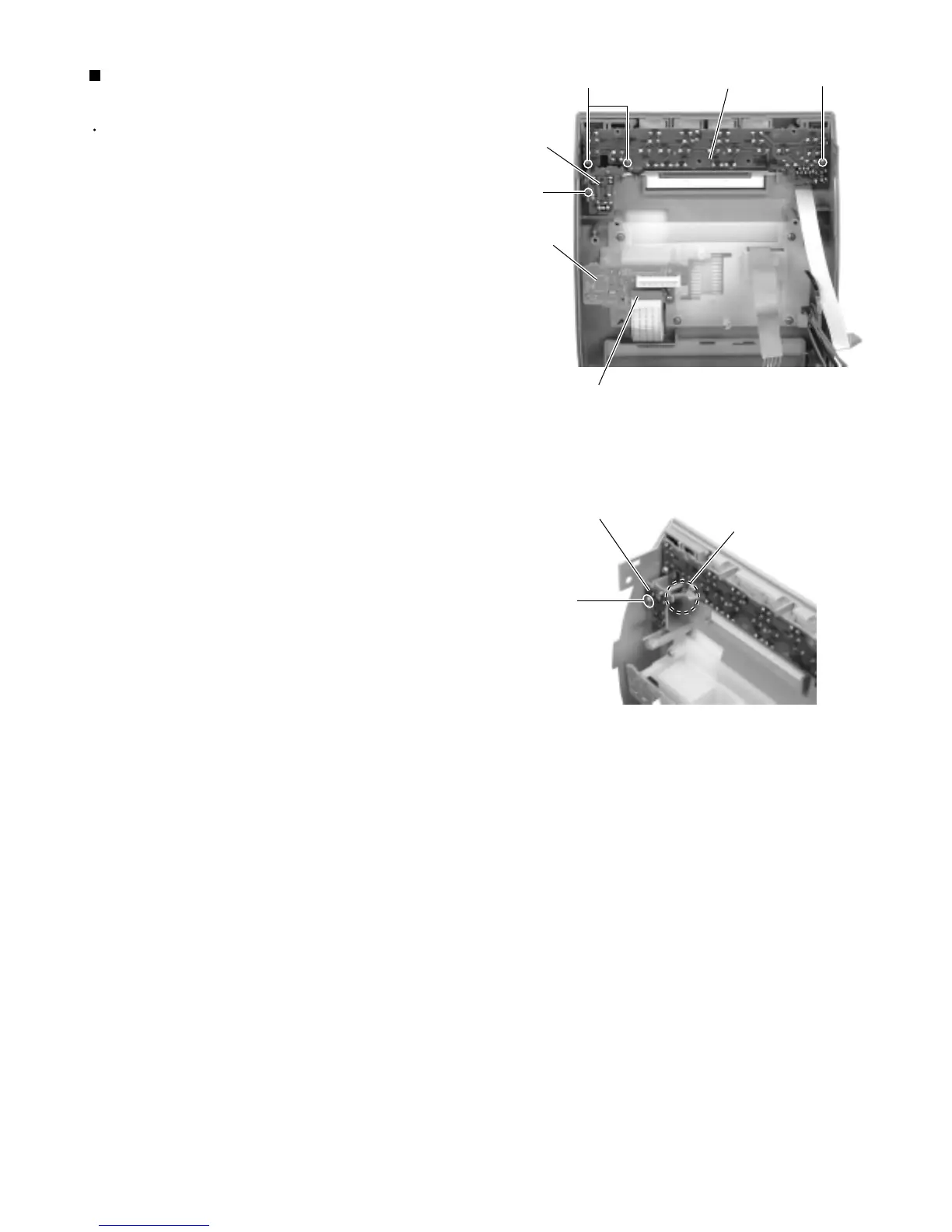

Fig.32
Fig.33
X
X
Y
Relay board
CN908
Key switch board
(d) board
Spring g
Y
(d) board
