UX-A70MD
Removing the CD / MD door board

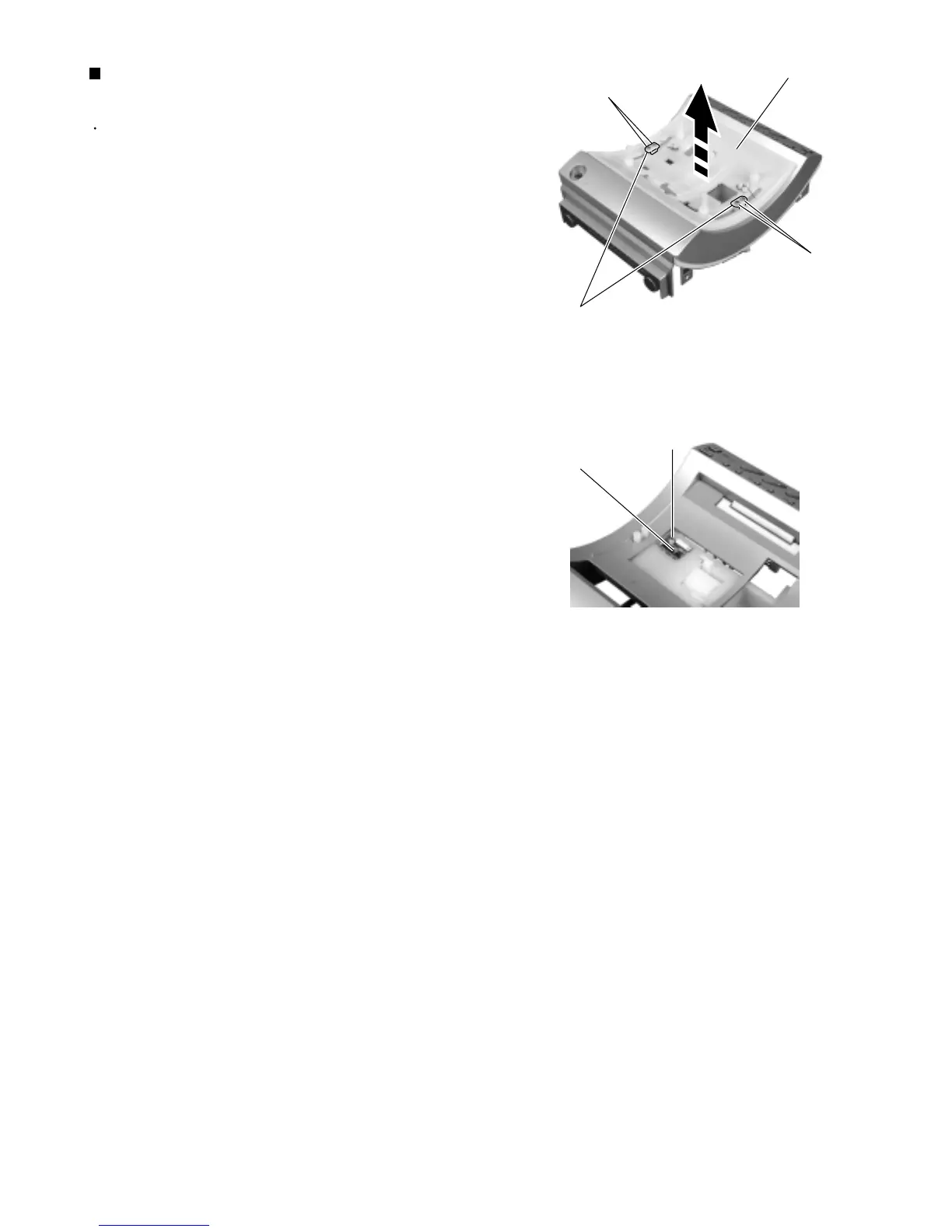

(See Fig.38 and 39)
Prior to performing the following procedure,remove
the LCD board unit.
Remove the four screws B' attaching the two
brackets (e). Remove the CD / MD door base and
the two brackets (e).
Remove the screw C' attaching the CD / MD door
board.
1.
2.
Fig.38
Fig.39
B'
B'
Brackets (e)
CD / MD door base
C'
CD / MD door board
