1-27
UX-A70MD

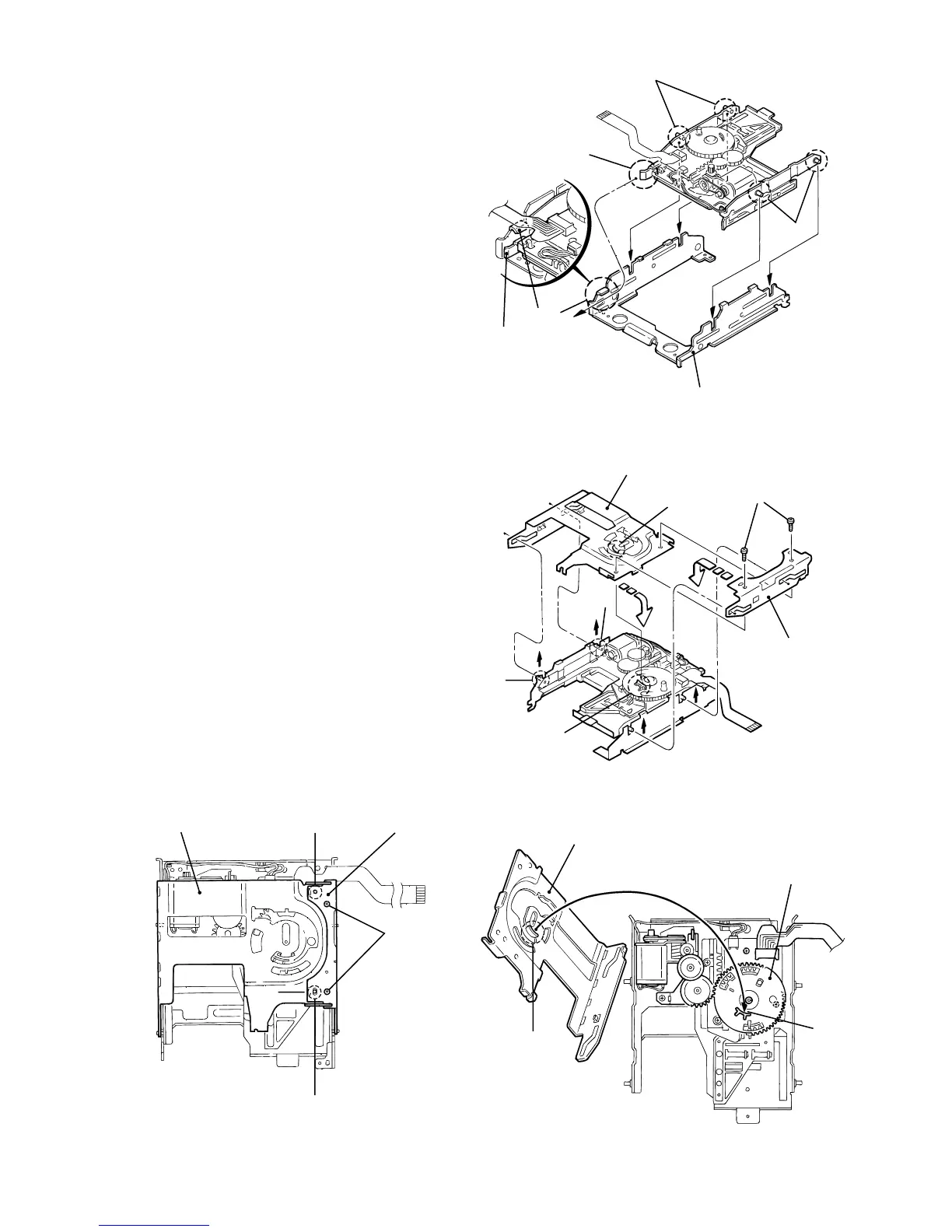

Reattach the UD base while engaging the four pins
on both sides of the UD base to the notches of the
loading mechanism base and placing the edge
(marked e’) of the cartridge holder assembly under
the hook e of the loading mechanism base. (Fig.23)
Reattach the slide base (R) while fitting the two pins
on another side of the UD base to the slots of the
slide base (R). (Fig.24)
8.
9.
Reattach the slide base (L) on the slide base (R)
while fitting the two pins on another side of the UD
base to the slots of the slide base (L) (Fig.25). Make
sure the two slots of the slide base (L) are fitted to
the two bosses marked E’ and tighten the two
screws E. (Fig.26)
10.
Fit the part v of the slide base (R) to
the part w on the inward side of the
cam gear rib. (Fig.25)
ATTENTION:
To expedite the work, bring up the UD base
slightly when fitting each pin to the appropriate
notch.
Ref:
Fig.23
Fig.24
Fig.25Fig.26
E
Loading mechanism base
Slide base (R)
Slide base (L)
Pin
Pin
Pin
Pin
Part w
Part v
Hook e'
Hook e'
Hook e
E
E'
E'
Part w
Part v
Slide base (L)Slide base (R)
Slide base (R)
Cam gear
