UX-A7DVD
1-14 (No.22013)
2.1.12 Removiing the power amplifier board
(See Fig.28, 29)
• Prior to performing the following procedure, remove the metal
cover, the DVD mechanism assembly, the front panel assem-
bly, the rear cover/ rear panel, the main board and the base
chassis.
(1) Disconnect the wire from connector CN111 on the power
amplifier board.
(2) Remove the band attaching the wire to the power amplifier
board.
(3) Release the wires from the clamp.
(4) Move the power amplifier board upward to release the two
joints g and remove to the right.

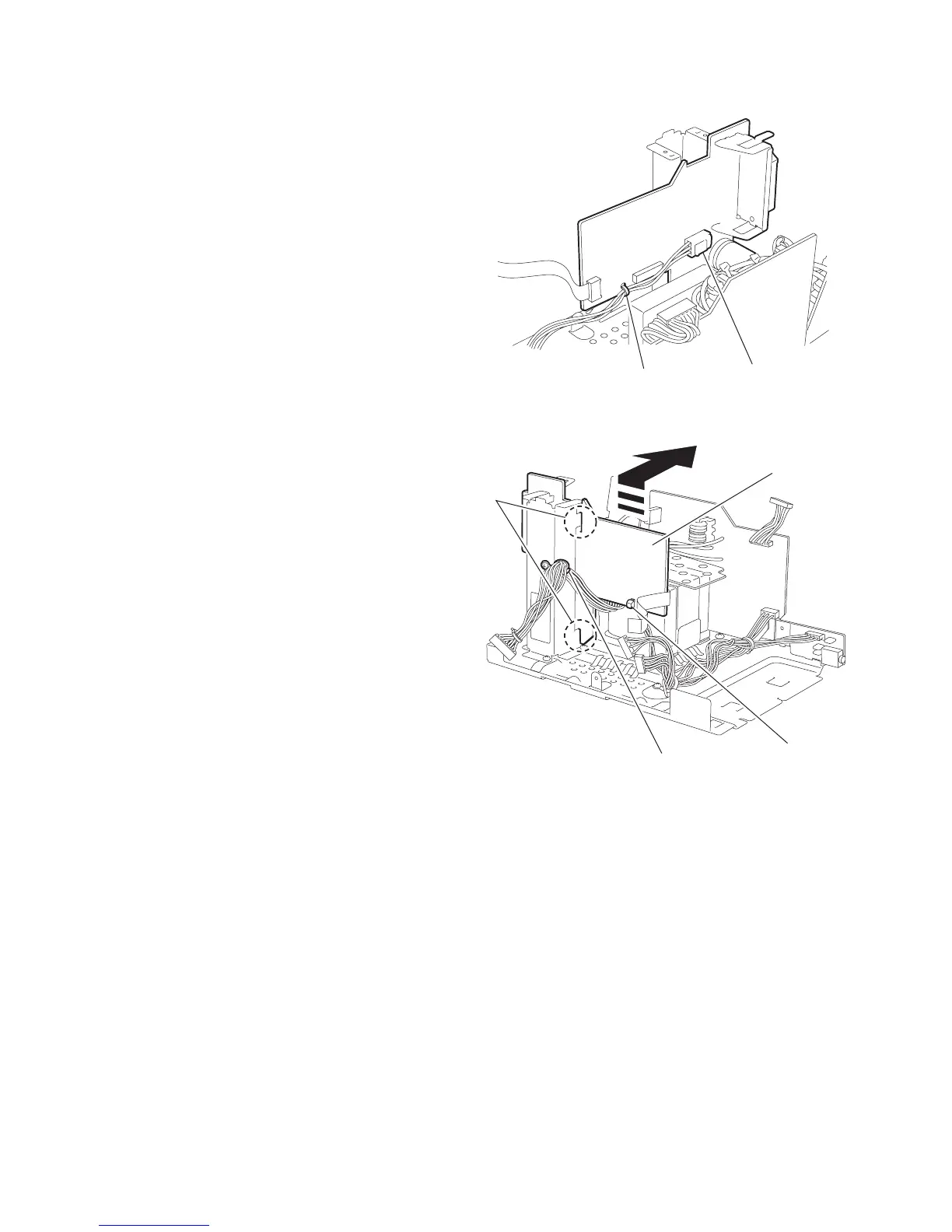

Fig.28
Fig.29
Band
Power amplifier board
CN111
Band
g
Clamp
Power amplifier
board
To Next Page
