2.2 Front panel assembly
• Prior to performing the following procedure, remove the metal
cover, the DVD mechanism assembly and the front panel as-
sembly.
2.2.1 Removing the cassette mechanism assembly

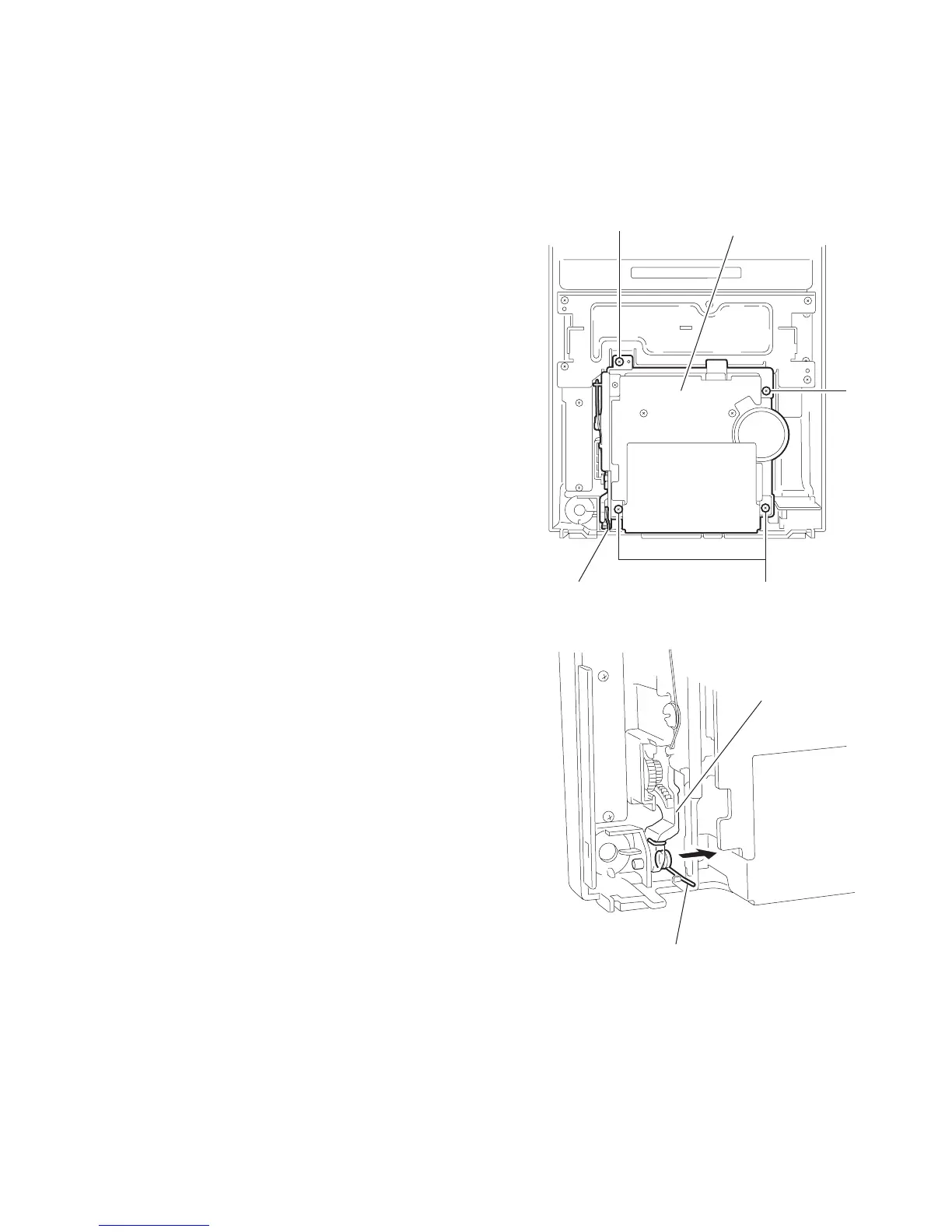

(See Fig.30, 31)
(1) Remove the spring attached to the cassette door on the
back of the front panel.
(2) Remove the four screws V attaching the cassette mecha-
nism assembly.
Fig.30
Fig.31
V
V
V
Spring
Cassette mechanism
assembly
Cassette door
Spring
