2.2.2 Removing the key board

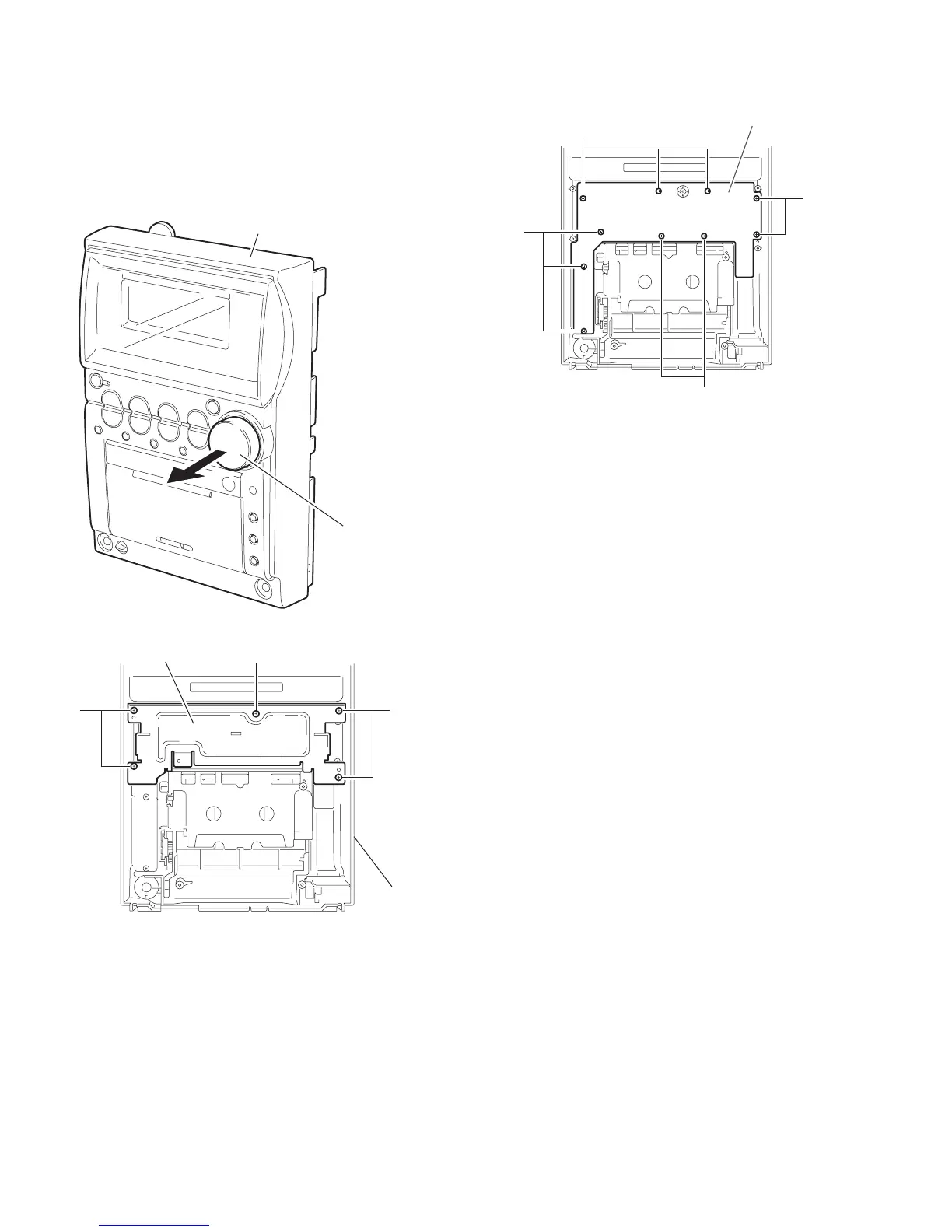

(See Fig.32~34)
• Prior to performing the following procedure, remove the cas-
sette mechanism assembly.
(1) Pull out the volume knob on the front side of the front panel.
(2) Remove the five screws W attaching the bracket (1) on the
back of the front panel.
(3) Remove the ten screws X attaching the key board.
Fig.32
Fig.33
Fig.34
Front panel assembly
Volume knob
WW
W
Bracket(1)
Front panel
X
X
X
X
Key board
