UX-A7DVD
(No.22013)1-17

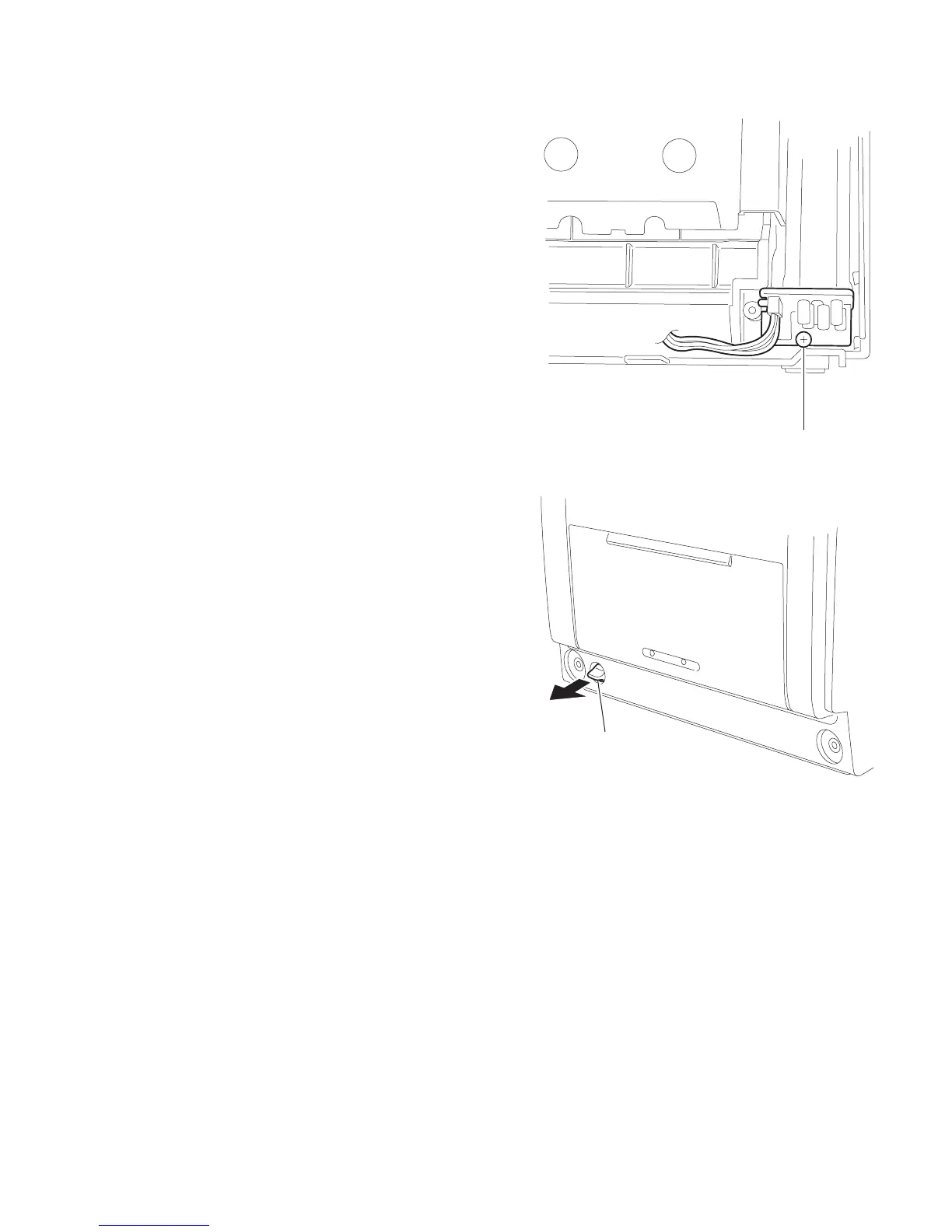

2.2.3 Removing the MIC board
(See Fig.35, 36)
Prior to performing following procedure, remove the cassette
mechanism assembly
(1) Remove the screw Y attaching the MIC board.
(2) Pull out the mic volume knob on the front side of the front
panel.
Fig.35
Fig.36
Y
Mic volume knob
