UX-A7DVD
1-18 (No.22013)

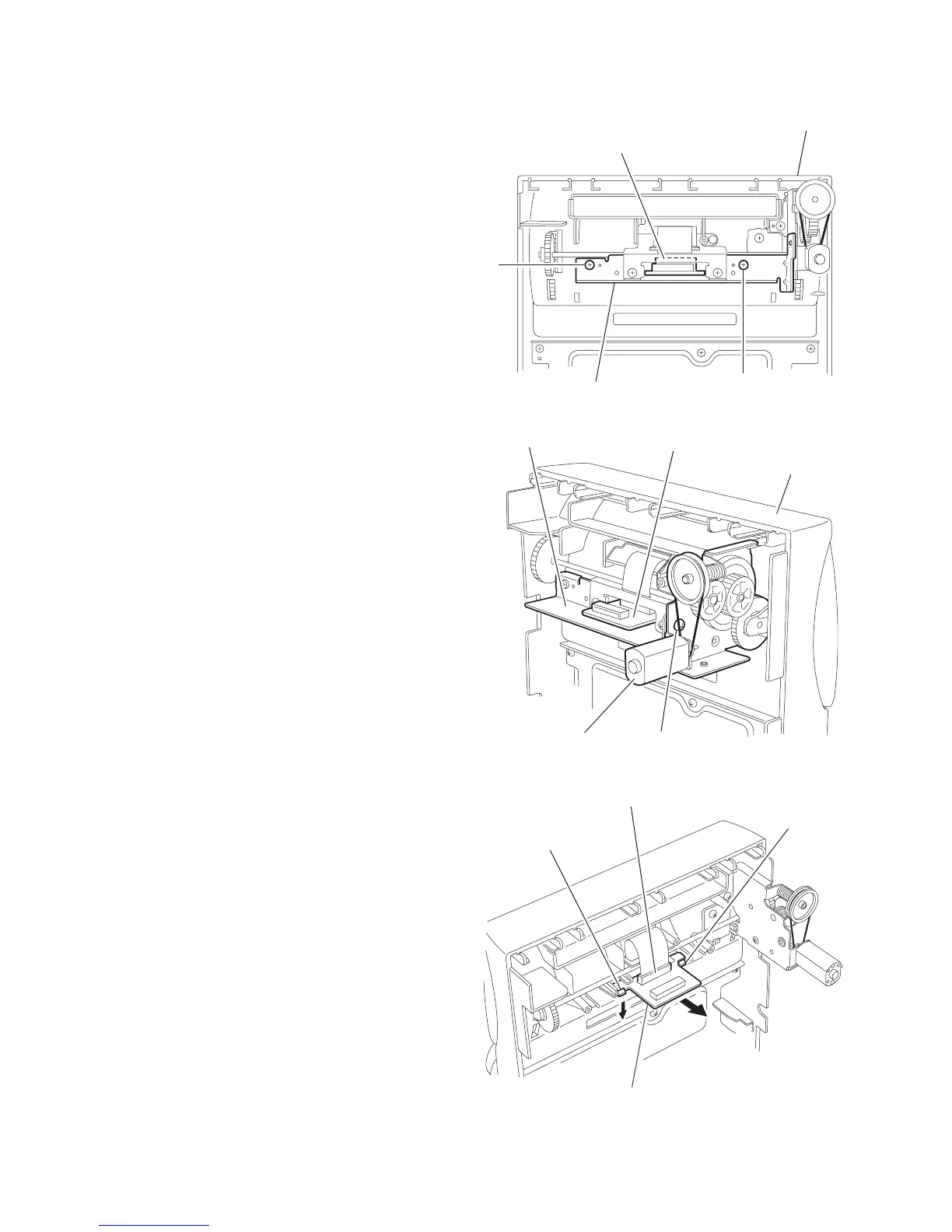

2.2.4 Removing the FL connection board
(See Fig.37~39)
(1) Remove the two screws Z and the screw AA attaching the
bracket (2) on the back of the front panel.
(2) Disconnect the card wire from connector CN441 on the FL
connection board.
(3) Push the two joint tabs h downward to release and pull out
the FL connection board.
Fig.37
Fig.38
Fig.39
FL connection board
CN441
Front panel
Bracket(2)
Z
Z
Bracket(2)
Front panel
Drive motor assembly
AA
FL connection board
CN441
FL connection board
h
h
