SECTION 3
DISASSEMBLY
3.1 Main body
3.1.1 Removing the TOP PANEL assembly
(See Fig.1, 2)
(1) Remove the three screws A attaching the TOP PANEL as-
sembly. (See Fig.1)
(2) Lift up the TOP PANEL assembly, disconnect the card wire
from MAIN BOARD assembly connected to connector
CN431
of the TACT & TOUCH & LED BOARD assembly.
(See Fig.2)

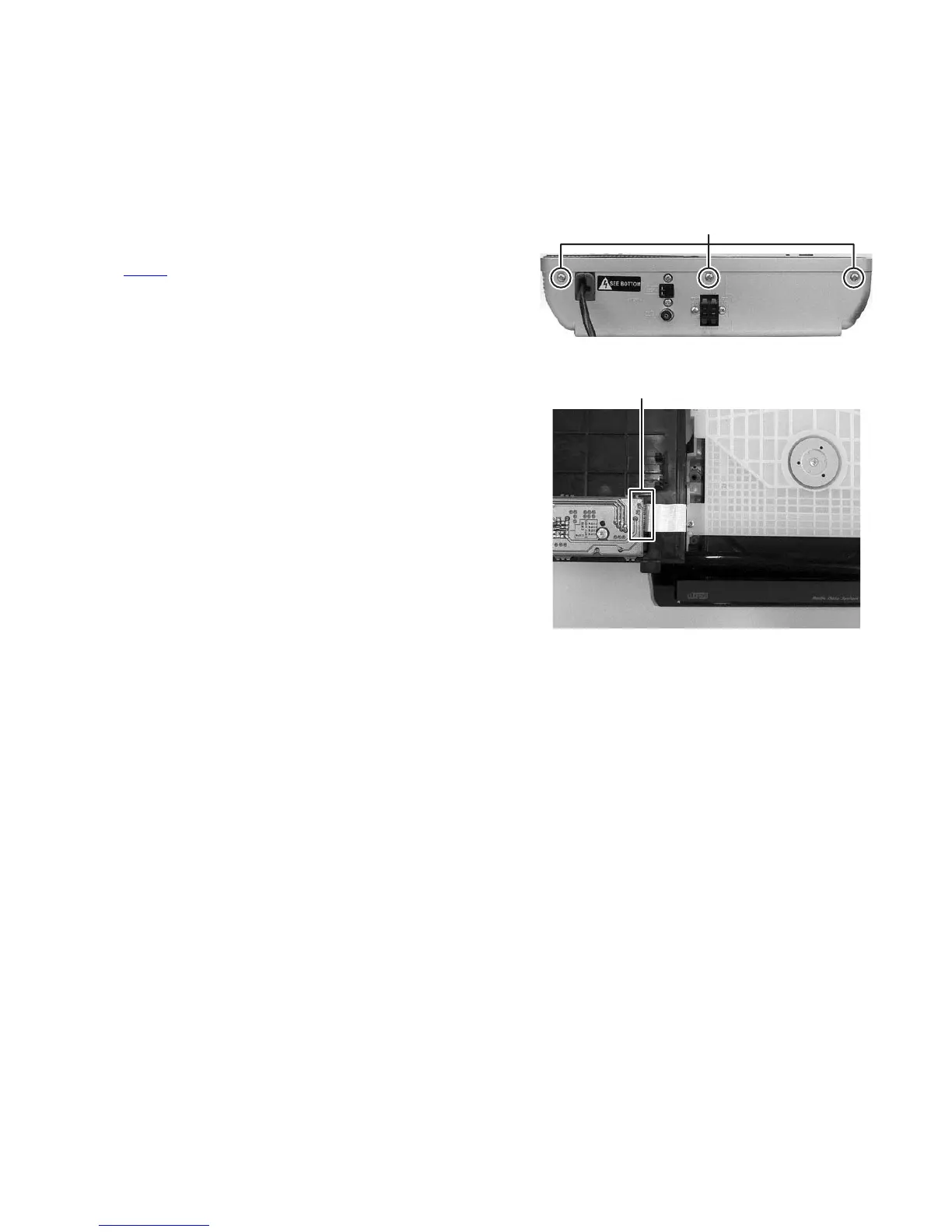

Fig.1
Fig.2
A
CN431
