3.1.3 Removing the FRONT PANEL assembly
(See Fig.6 to 8)
(1) Remove the FITTING.
(2) Disconnect the card wire from FRONT PANEL assembly
connected to connector CN701
of the MAIN BOARD as-
sembly. (See Fig.6)
(3) Disengage the two hooks a and three hooks b engaged
both side of the FRONT PANEL assembly. (See Fig.7, 8)

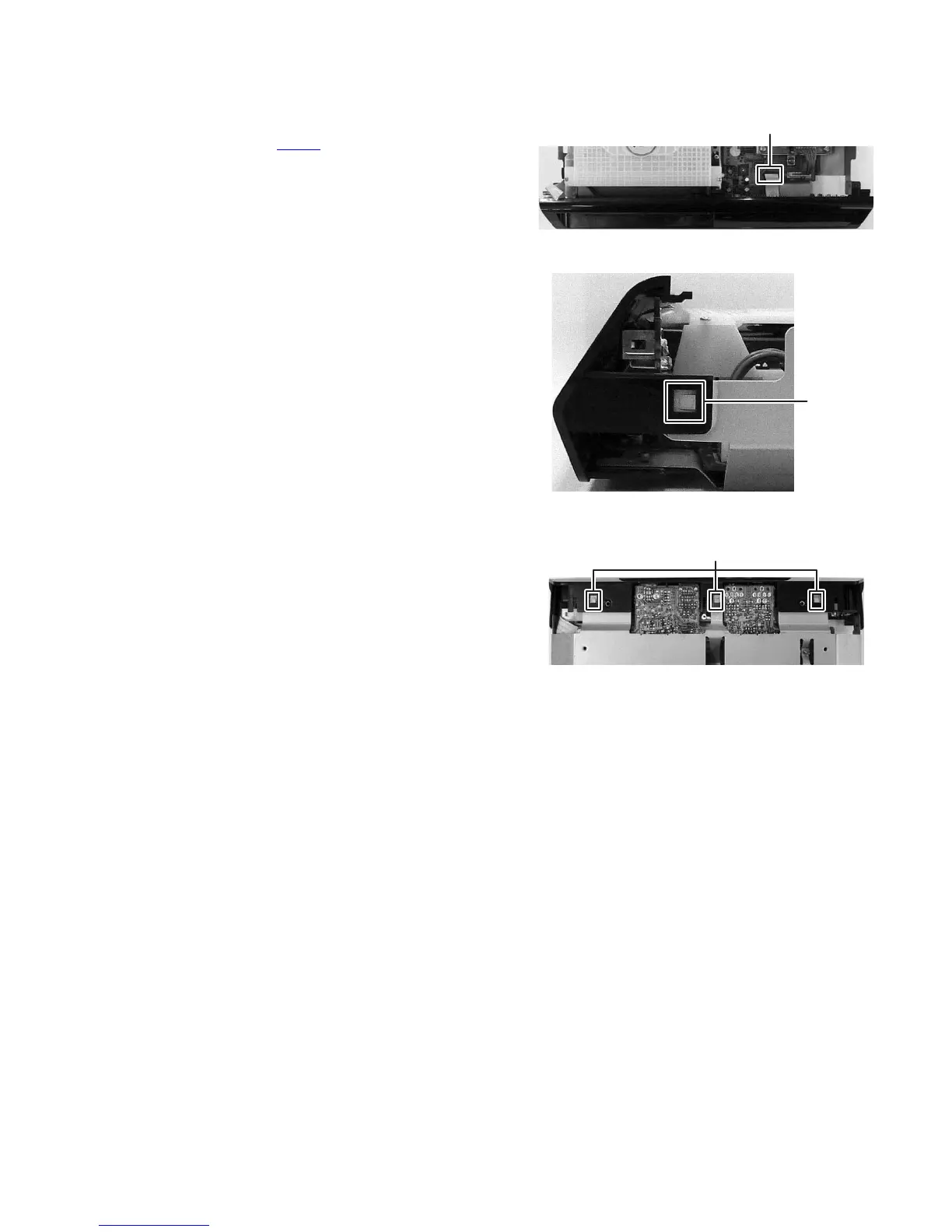

Fig.6
Fig.7
Fig.8
CN701
hook a
hook b
