To connect the AM loop antenna
Make sure to connect the wire correctly.
For better FM/AM reception
• Make sure the antenna conductors do not touch any other
terminals, connecting cords and power cord. Also, keep the
antennas away from metallic parts of the System,
connecting cords, and the AC power cord. This could cause
poor reception.
To connect the speaker cords
Make sure the both speakers are connected correctly and
firmly.
When connecting the speaker cords, match the polarity of
the speaker terminals: The black cord to (-), the red cord to
(+).

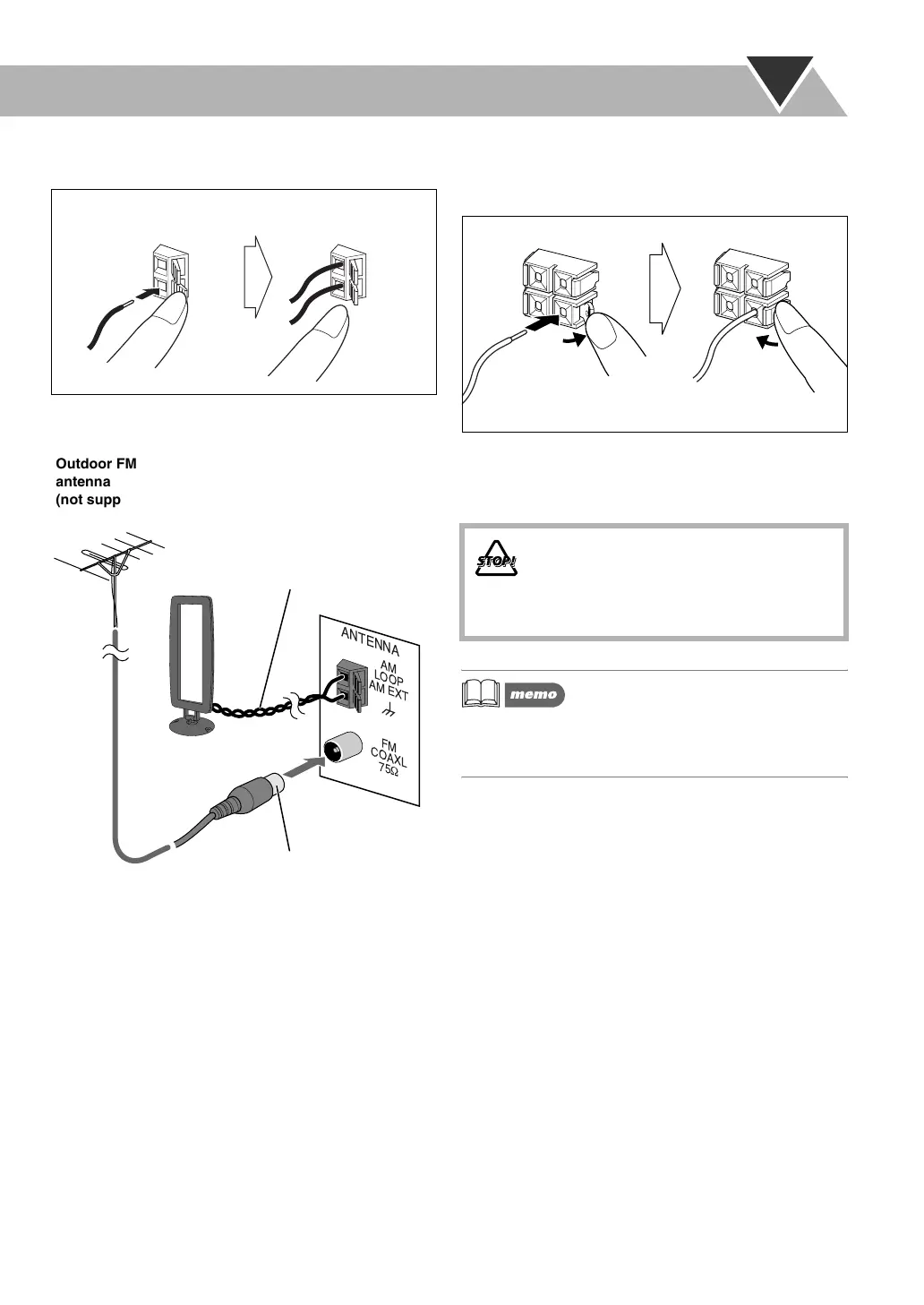

• If the AM loop antenna wire or speaker cords are covered
with vinyl, remove the vinyl to expose the tip of the
antenna wire or speaker cords by twisting the vinyl.
1 Hold
2 Insert
3 Release



9


 

Outdoor FM
antenna
(not supplied)
Vynile-covered wire (not supplied)
Extend it horizontally.
Disconnect the supplied FM antenna,
and connect to an outdoor FM antenna
using a 75 Ω wire with coaxial type
connector (IEC or DIN45325).
Outdoor FM
antenna
(not supplied)
AM loop antenna
Keep it connected.
• DO NOT connect more than one speaker to
each terminal.
• DO NOT allow the conductor of the speaker
cords to be in touch with the metallic parts of
the System.
1 Unlock
2 Insert
3 Lock
