1-10 (No.MB611)

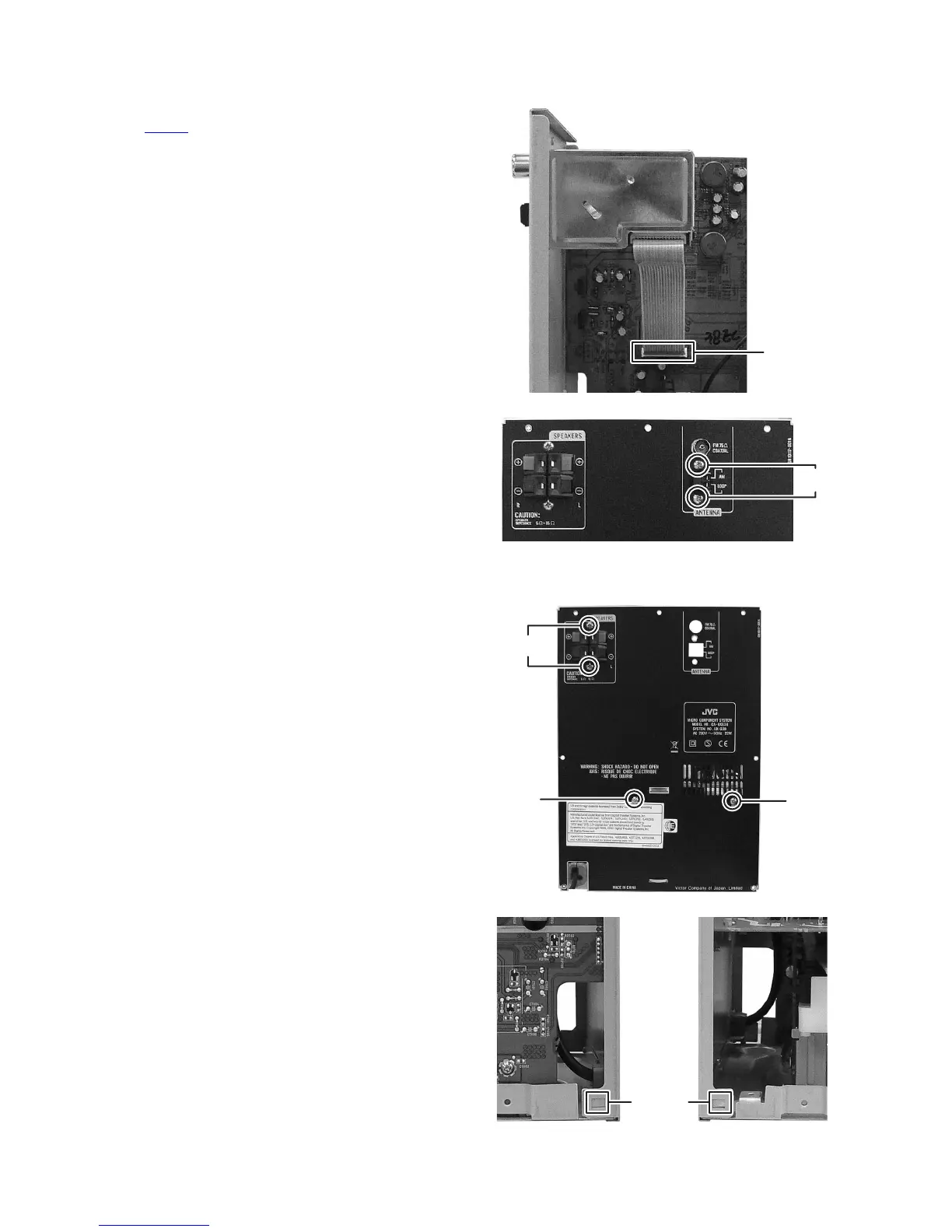

3.1.3 Removing the Tuner pack
(See Fig.6, 7)
(1) Disconnect the card wire from Tuner pack connected to
connector CN911 of the Main board assembly. (See Fig.6)
(2) Remove the two screws D attaching the Tuner pack. (See
Fig.7)
Fig.6
Fig.7
3.1.4 Removing the Rear Panel
(See Fig.8, 9)
(1) Remove the two screws E attaching the Speaker terminal.
(See Fig.8)
(2) Remove the two screws F attaching the Power board as-
sembly. (See Fig.8)
(3) Disengage the hook c engaged both side of Rear panel.
(See Fig.9)
Fig.8
Fig.9
CN911
D
E
FF
hook c
To Next Page
