1-12 (No.MB611)

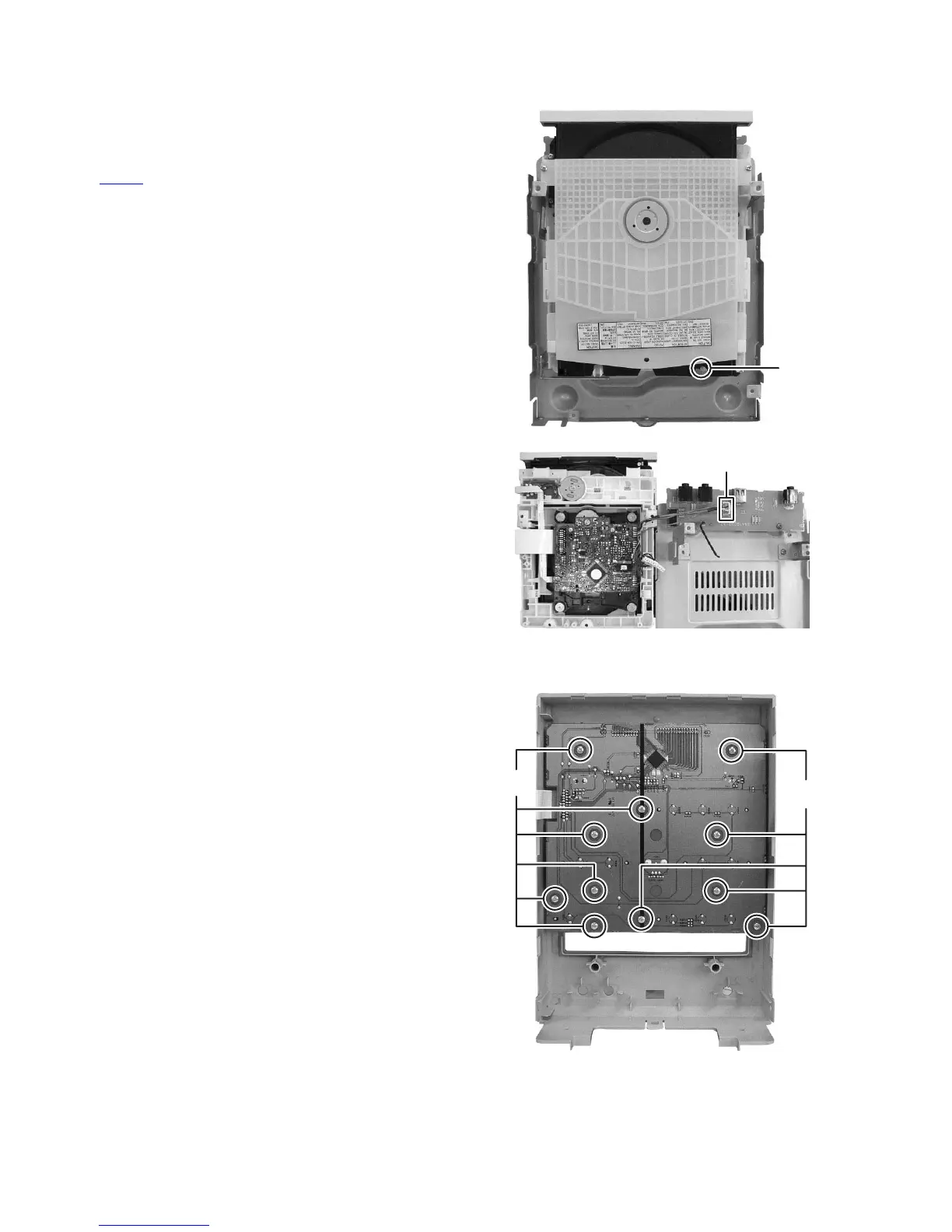

3.1.7 Removing the CD mechanism assembly
(See Fig.12, 13)
(1) Remove the one screw J attaching the CD mechanism as-
sembly. (See Fig.12)
(2) Turnover the CD mechanism, disconnect the connector
wire from CD mechanism assembly connected to connec-
tor CN104
of the Jack board assembly. (See Fig.13)
Fig.12
Fig.13
3.1.8 Removing the Front board assembly
(See Fig.14)
(1) Remove the volume knob.
(2) Remove the eleven screws K attaching the Front board as-
sembly.
Fig.14
J
CN104
K
K
To Next Page
