~ AM/FM antenna

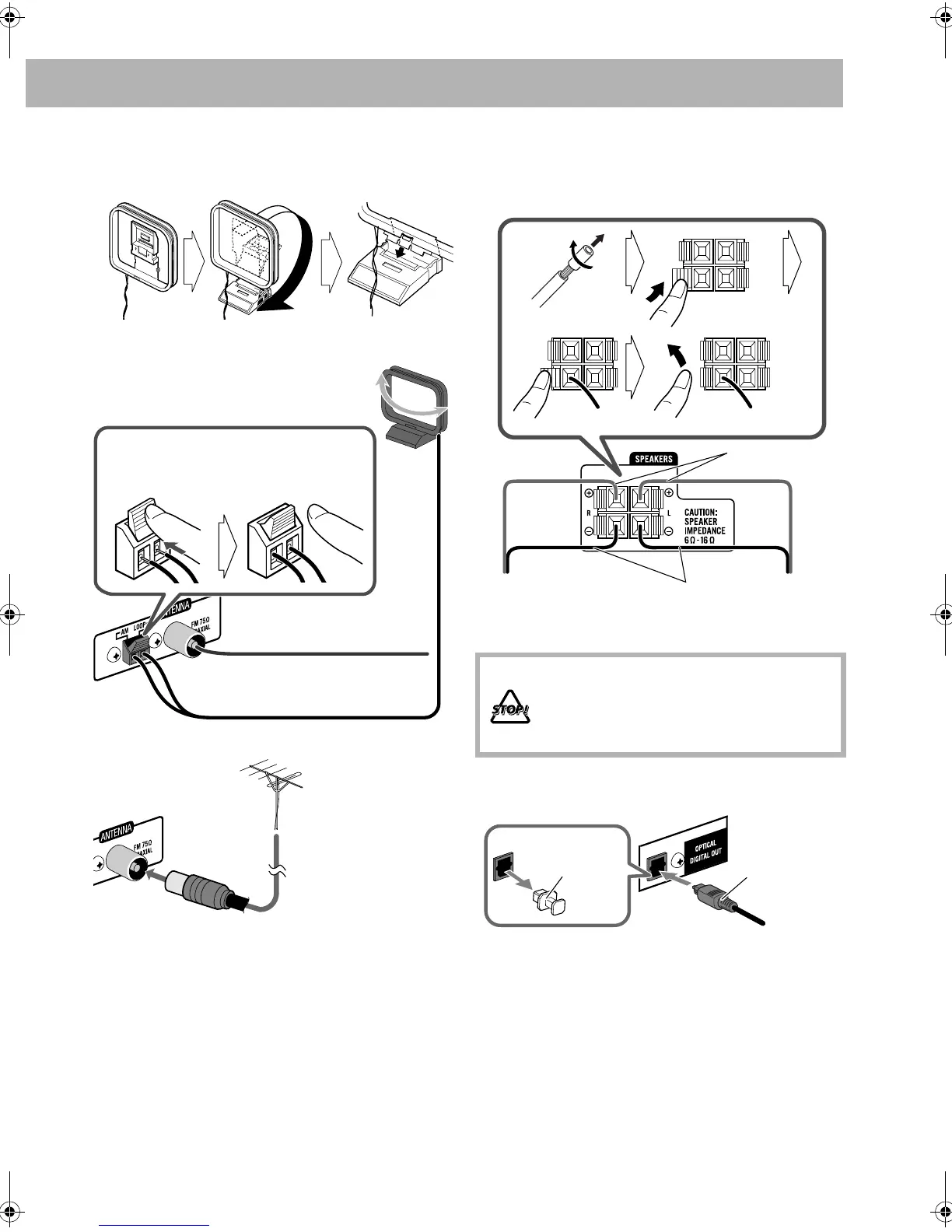

To assemble the AM loop antenna
To connect AM/FM antenna
For better FM reception
• Disconnect the supplied FM antenna, and connect to an
outdoor FM antenna using a 75
Ω
wire with coaxial type
connector (IEC or DIN45325).
Ÿ Speakers
• When connecting the speaker cords, match the polarity of
the speaker terminals: red to (+) and black to (–).
! Digital audio component
• Set “DIGITAL AUDIO OUTPUT” in the “AUDIO” menu
correctly according to the connected digital audio
equipment (see page 32).
• The digital signal through the OPTICAL DIGITAL OUT
terminal is transmitted only when “DVD/CD” is selected as
the source.
Extend it so that you can obtain the
best reception.
FM antenna (supplied)
AM loop antenna (supplied)
Turn it until the best reception is obtained.
If the cords are covered with vinyl, remove
the vinyl to expose the tip of the cord by
twisting the vinyl.
FM outdoor antenna
(not supplied)
• DO NOT connect more than one speaker to
each terminal.
• DO NOT push or pull the speakers as this
will damage the foot spacers at the bottom
of the speakers.
From right
speaker
From left
speaker
Red
Black
Press and hold
ReleaseInsert
Protective cap
Optical digital
cord (not
supplied)
