3.1.4 Removing the Amp board (See Fig.6)
(1) Disconnect the connector wire from Power board connect-
ed to connector CN640
of the Amp board.
(2) Disconnect the card wire from Amp board connected to
connector CN520
of the Micom board.
(3) Remove the one screw E attaching the Amp board.

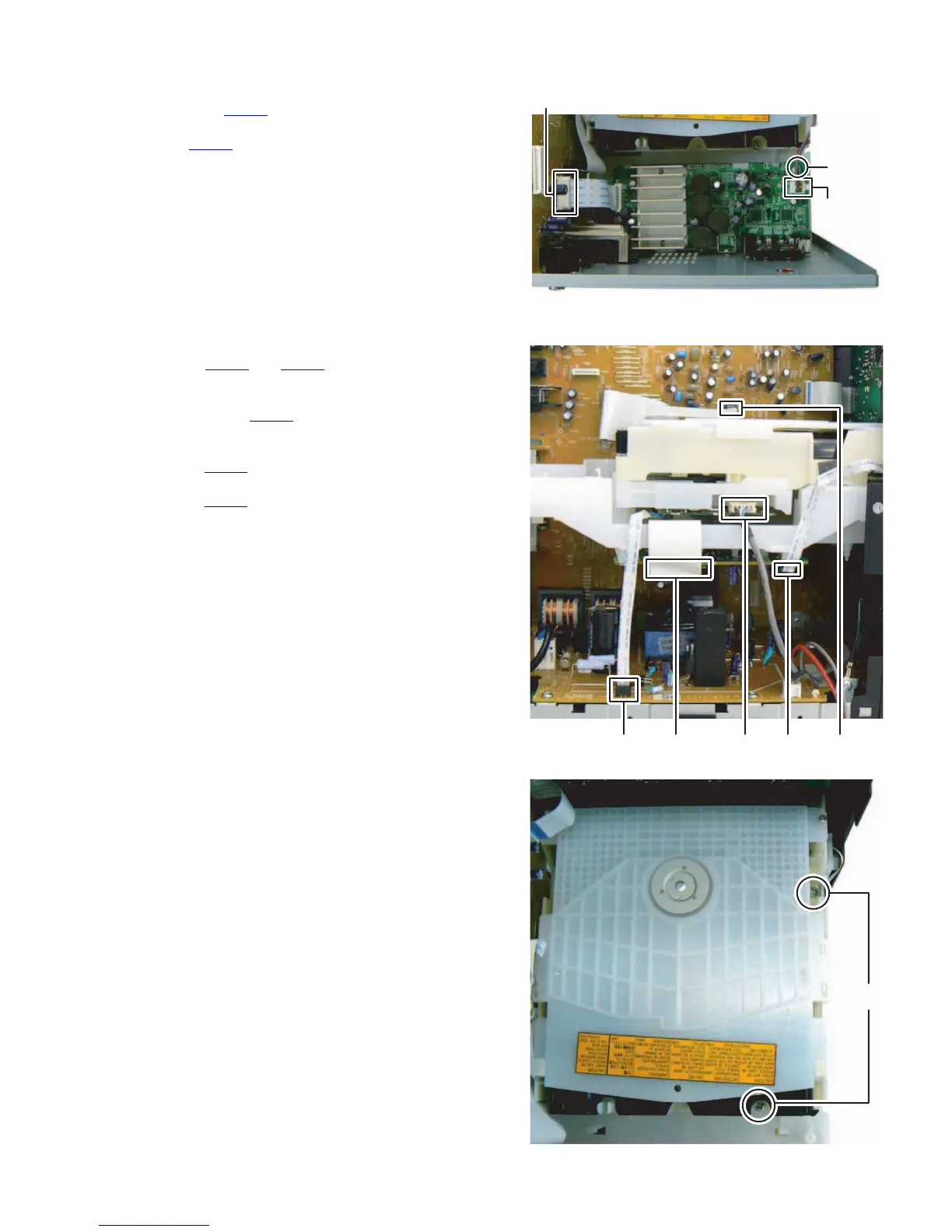

Fig.6
3.1.5 Removing the DVD mechanism (See Fig.7 to 8)
(1) Disconnect the card wire from DVD mechanism connected
to connector CN360
and CN361 of the Connection board.
(See Fig.7)
(2) Disconnect the connector wire from DVD mechanism con-
nected to connector CN811
of the Connection board. (See
Fig.7)
(3) Disconnect the card wire from DVD mechanism connected
to connector CN205
of the Power board. (See Fig.7)
(4) Disconnect the card wire from DVD mechanism connected
to connector CN510 of the Micom board. (See Fig.7)
(5) Remove the two screws F attaching the DVD mechanism.
(See Fig.8)
Fig.7
Fig.8
E
CN640
CN520
CN205 CN361 CN360CN811 CN510
F
