JVC UX-G500VB User Manual

1-10 (No.MB674<Rev.003>)
3.1.6 Removing the Mecha chassis (See Fig.9, 10)
(1) Remove the two screws G attaching the both side of the
Front panel. (See Fig.9)
(2) Disconnect the card wire from Connection board connect-
ed to connector CN310
of the Micom board. (See Fig.10)

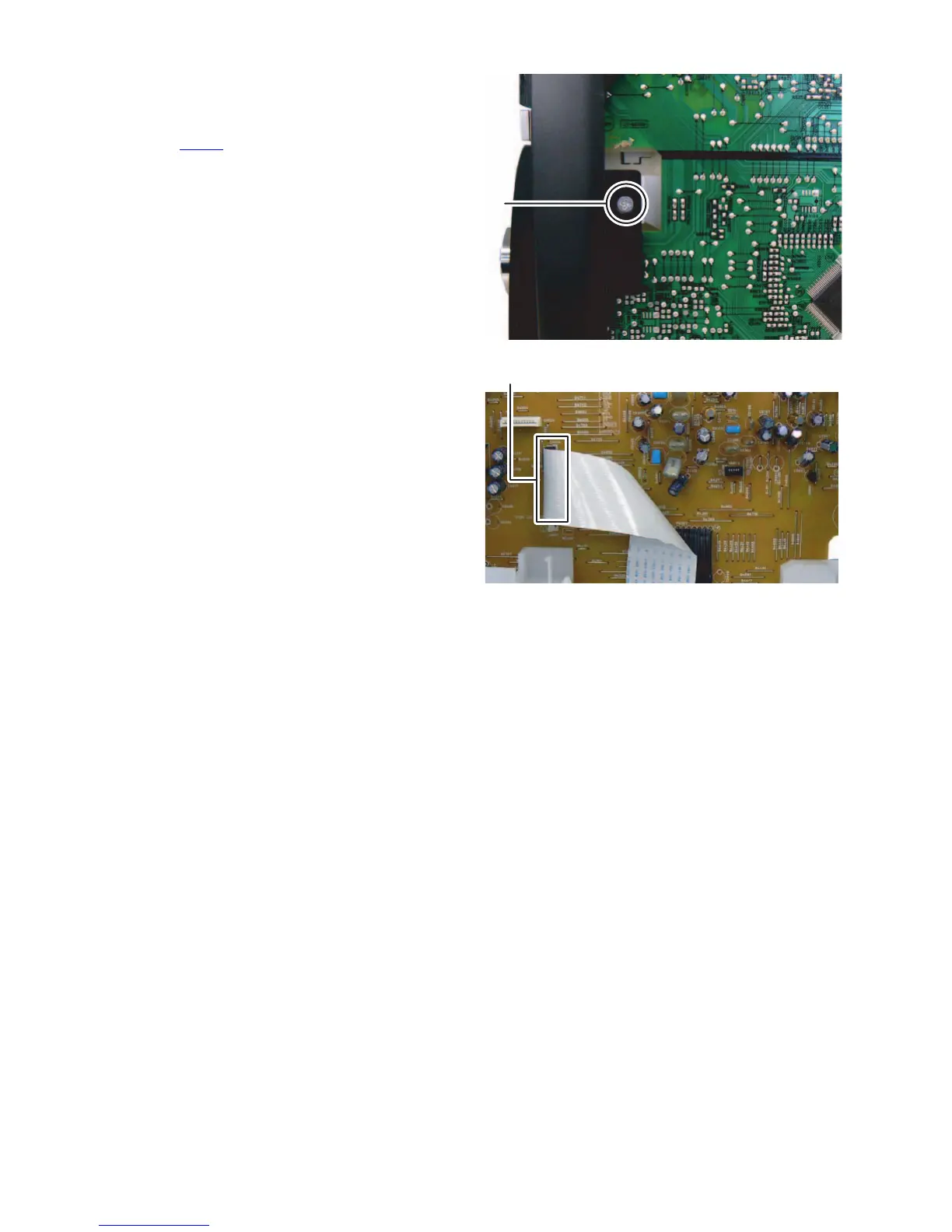

Fig.9
Fig.10
G
CN310
