1-22 (No.MB408)

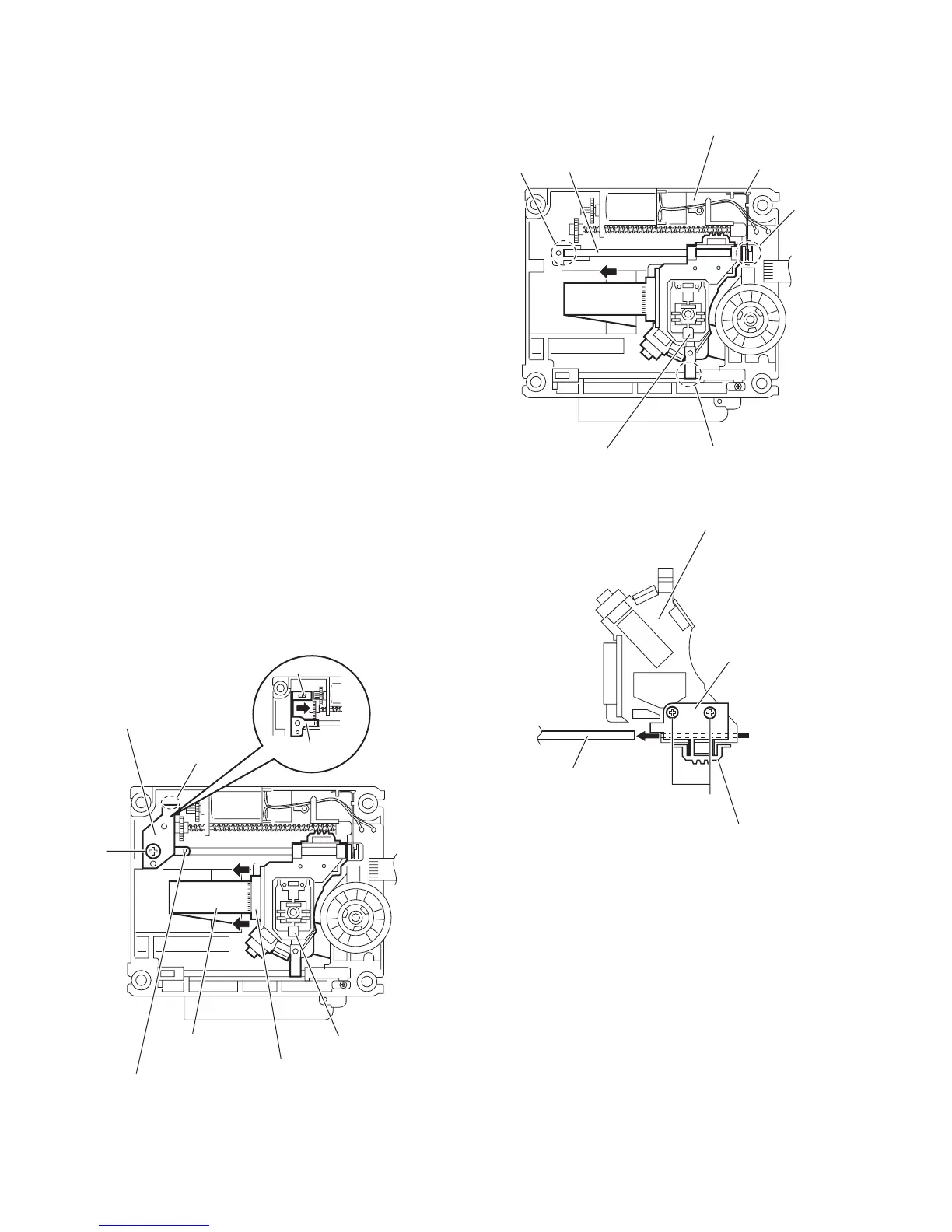

3.2.3 Removing the DVD pickup
(See Figs.2,4 to 6)
• Remove the traverse mechanism assembly.
(1) From the side of the traverse mechanism assembly, solder
the short land sections a on the DVD pickup. (See Fig.2.)
(2) Release the lock of the connector on the DVD pickup in the
direction of the arrow and disconnect the card wire. (See
Fig.4.)
Caution:
• Solder the short land sections a on the DVD pickup be-
fore disconnecting the card wire from the connector on
the DVD pickup. If the card wire is disconnected with-
out attaching solder, the DVD pickup may be de-
stroyed by static electricity. (See Figs.2 and 4.)
• When attaching the DVD pickup, be sure to remove
solders from the short land sections a after connecting
the card wire to the connector on the DVD pickup.
(See Figs.2 and 4.)
(3) Remove the screw C and remove the feed bracket from the
sections d. (See Fig.4.)
(4) Release the claw e of the thrust spring in the direction of
the arrow and remove the thrust spring. (See Fig.4.)
(5) Remove the guide shaft of the DVD pickup from the section
f on the traverse mechanism assembly and remove the
guide shaft from the section g while moving it in the direc-
tion of the arrow. (See Fig.5.)
(6) Remove the DVD pickup from the section h of the traverse
mechanism assembly and take out the DVD pickup with
the guide shaft. (See fig.5.)
(7) From the bottom side of the DVD pickup, remove the two
screws D attaching the rack arm and rack arm spring. (See
Fig.6.)
(8) Pull the guide shaft out of the DVD pickup. (See Fig.6.)
Fig.4
Fig.5
Fig.6
Thrust spring
DVD pickup
Connector
Feed bracket
Card wire
C
Thrust spring
e
d
Traverse mechanism assembly
DVD pickup
Guide shaft
f
g
h
Rod spring
DVD pickup
Rack arm
Rack arm spring
D
Guide shaft
