JVC UX-H100 Service Manual

1-14 (No.MB248)

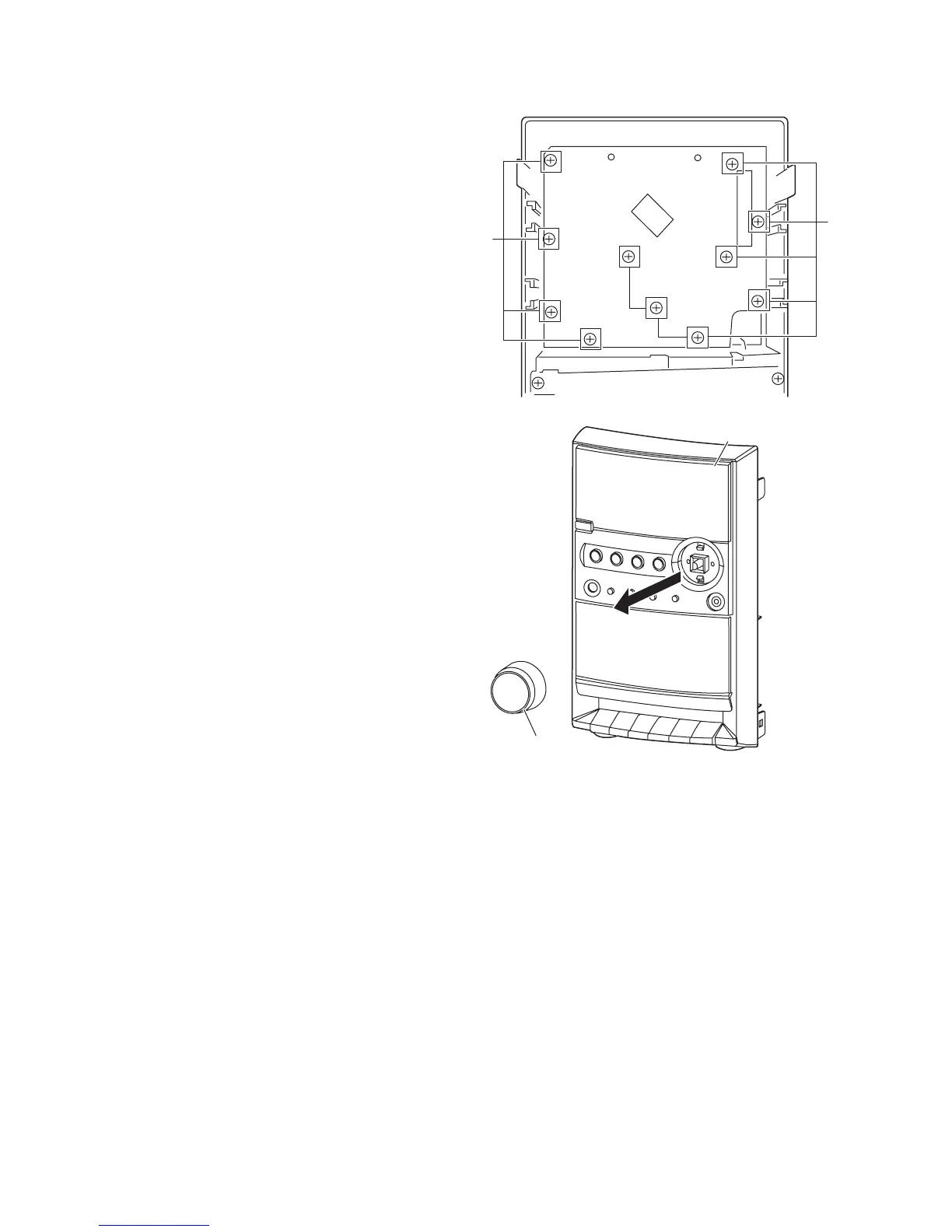

3.1.10 Removing the display/control board assembly
(See Fig.24 and 25)
• Prior to performing the following procedures, remove the rear
cover.
• Also remove the CD chassis assembly.
(1) Remove the eleven screws K retaining the display/control
board assembly from the back of the front cabinet assem-
bly.
Caution:
The display/control board may be taken out when the volume
knob has been taken away.
Fig.24
Fig.25
K
K
Volume knob
Front panel assembl
y
